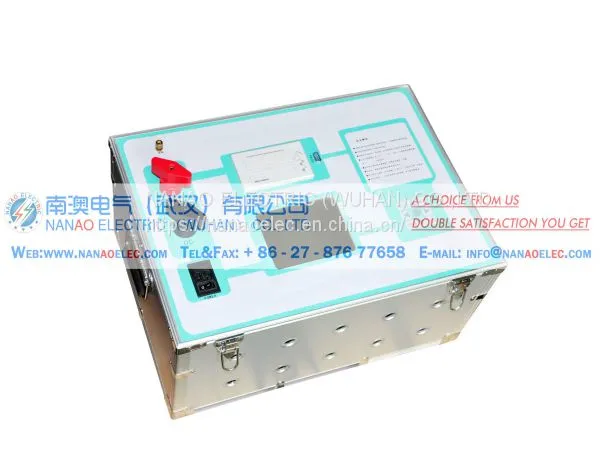

Help CenterNANAO ELECTRIC Manufacture NAAS DC Circuit Breaker Ampere Second Characteristic Tester
Related Products
-
NANAO ELECTRIC Manufacture NASMG Three Phase Power Check MeterUS$ 10 - 10MOQ: 1 Set -
NANAO ELECTRIC Manufacture NASYQ Digital Three-phase ShifterUS$ 10 - 10MOQ: 1 Set
-
NANAO ELECTRIC Manufacture NASGQ Series Digital Display Clamp-on Phase MeterUS$ 10 - 10MOQ: 1 Set
-
NANAO ELECTRIC Manufacture NAVAT Automatic Intelligent CT PT Calibration TesterNegotiableMOQ: 1 Set
-
NANAO ELECTRIC Manufacture NACT Type CT Ratio Polarity TesterUS$ 10 - 10MOQ: 1 Set
Product introduction
At present, the DC circuit breaker ampere second feature detection agencies and manufacturers for DC empty open ampere second characteristic measurement equipment are fixed equipment such as stationary high-current power , a large load resistance , bulky , heavy and not easy motion detection , analytical instruments are conventional instruments such as voltmeter, ammeter , oscilloscope , wiring complexity , inconvenient to use and does not meet the substation movement detection needs. In order to solve the actual scene of the DC circuit breaker feature detection problems, Nanao Electric Wuhan Co., Ltd. has introduced a suitable substation site to use, easy to carry, high degree of automation "NAAS DC circuit breaker ampere second characteristic tester " can DC for the operation and maintenance departments to provide protection of electrical operating characteristics of the means test, the DC protection of electrical characteristics and the differential with the action be verified in order to improve the current system's reliability , to ensure safe and reliable operation of the grid . NAAS DC circuit breaker ampere second characteristic tester is designed for substation testing , repair , maintenance and design. Meet the DC circuit breaker overload and short-circuit characteristic test , thereby improving the health of substation DC system , avoiding the DC distribution network appears grade trip and caused large-scale power outages .
Also called name
DC circuit breaker ampere second characteristic tester, Ann second feature, the DC circuit breaker ampere second characteristic tester
The Characteristics of the products
1, The main part of the high-performance industrial computer , Windows XP operating system, real-time display graphs and numerical parameters
2 , Keyboard, touchpad input ( can be an external USB mouse ) ; 5.7 -inch TFT color LCD display . Simple , beautiful interface, all parameters at a glance
3 , Switching constant current control technology, new power devices , 1A ~ 500A set their own constant current output , high precision constant current load capacity, can be a long time stability
4, Applies to the rated current of 1A ~ 500A DC circuit breaker ampere second characteristic test can be used to 6A ~ 100A DC fuse safety second characteristic test
5 , The measurement method using whole point test or pumping point test , fast response , high precision , safety and reliability
6, The DC circuit breaker safety second characteristic tester with overheating , overcurrent, overvoltage protection , electromagnetic compatibility, anti-interference ability
7 , Test management software can automatically complete the DC circuit breaker safety second characteristics of the test , and analyze the test data to map out the circuit breaker protection characteristic curve ( On second curve ) , and generate report output
8 , IPC comes with 4G memory space can be arbitrarily stored test records , and is equipped with two USB ports to facilitate the extraction of test records and print
9, The DC circuit breaker safety second characteristic tester with integrated design, easy to carry
The parameters of the products
Working voltage: AC220V, 50Hz
Ambient temperature: -20 ℃ ~ 50 ℃
Operating Humidity: ≤ 90% RH
Test current: 1 ~ 500A
Test current ripple factor:
Output current stability: ≤ ± 1%
Time Recording Range: 1ms ~ 1000s
The minimum time resolution: 0.1ms
Operation: keyboard, touchpad (can be an external USB mouse)
Dimensions: 530mm × 470mm × 200mm
Instrument Weight: 25kg
Instrument Enclosure: Aluminum meter box
