Product introduction

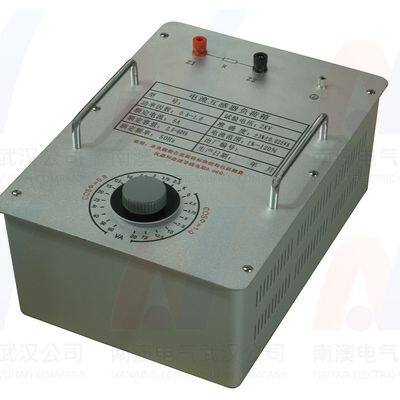

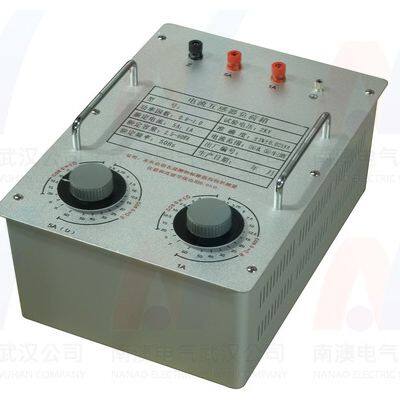

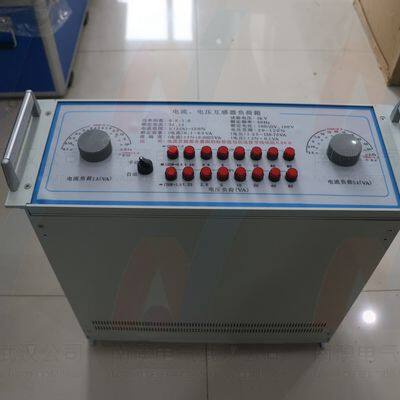

NAFY series current load box is a test current transformer, specializes in providing a variety of payloads, is ideal for a variety of transformer test equipment accessory products. The NAFY-96 current load box is in strict accordance with national standards JJG313-94
Also called name
Load box, transformer load box, voltage transformer load box, current transformer load box, voltage transformer load box, current transformer load box, voltage load box, the current load box, box load voltage and current load box
The Characteristics of the products
Light weight, beautiful appearance, the current range.
The parameters of the products
Project Parameters |
Model |
||
NAFY-96 Current Load Box |
NAFY-99 Current Load Box |
||
Environmental Conditions |
Temperature |
5℃—40℃ |
|
Humidity |
＜80% RH (25℃) |
||
Altitude |
＜1500m |
||
Power frequency |
50HZ |
||
Rated capacity |
60VA（0-2.4Ω） |
1.25～158.75VA |
|
Measuring range |
5%-120% |
20%-120% |
|
secondary current |
- |
100V |
|
the secondary voltage |
1A / 5A (customer choose) |
- |
|
Power factor |
0.8，1 |
||
Accuracy |
±3%±0.0025VA |
||
Test voltage |
2kV |
||
Dimension |
370mm*270mm*240mm (L*W*H) |
||
weight |
8Kg |
||
