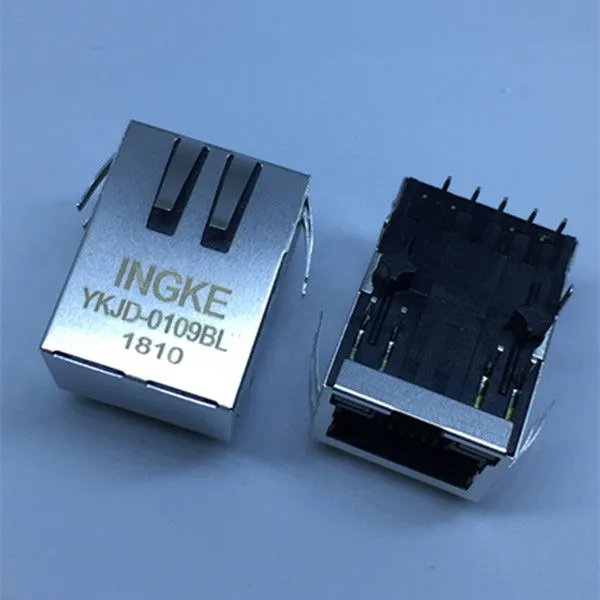

Ingke YKJD-0109BL 100% cross 7499211122A Through Hole 100 Base-T RJ45 Modular Jack Connectors
Part Number:7499211122A
Made in China:YKJD-0109BL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type:Through Hole
Orientation:90°Angle (Right)
Termination:Solder
LED Color:Yellow - Green
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Down
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Flammability Rating:UL 94 V-0
Contact Finish Thickness:30µin (0.76µm)
Shield Material:Copper Alloy
Housing Material:Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
Ingke Technology Mass production of the following models;7498011122R 7498011122R 7499211125 7499010211A 74990111217 7499010441 74980111211 74980111211 74980111211 7499010122 7498011122 7499111121A 7498011122R 7498111001 7498111001 7498111001 7499111446 74990111215 7499211121A 7499210121A 7499111221A 7499111447 7499151120 7497110616 7499010121A 7499011121A 74990100011A 7499011222A
