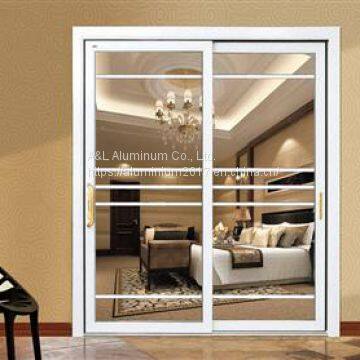

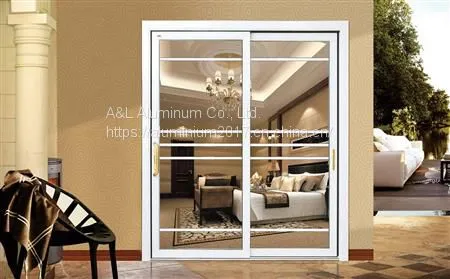

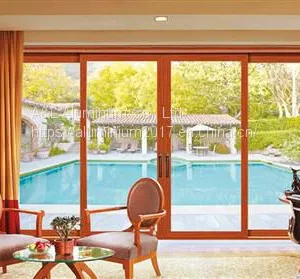

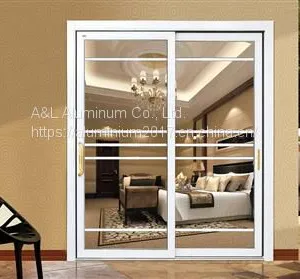

Help CenterALUMINUM DOORS 106 CLASSICAL SLIDING DOOR SERIES
Related Products
-
ALUMINUM DOORS 80 SLIDING SERIESUS$ 1800 - 2900MOQ: 100 Pieces -
ALUMINUM SUNROOMUS$ 1800 - 2900MOQ: 100 Pieces
-
Industrial Aluminum YS-INDUSTRIAL-01US$ 1800 - 2900MOQ: 100 Pieces
-
Aluminum Curtain Wall YS-CURTAIN WALL-01US$ 1800 - 2900MOQ: 100 Pieces
-
Aluminum TubeUS$ 1800 - 2900MOQ: 100 Pieces
Door Material: Aluminum alloy 6063-T5
Technology: Thermal break or Non thermal break
Door type: Sliding door, Accordion door, Heavy duty sliding door
Position: Interior/ Exterior
The quantity of door: two or three doors, customized available
Aluminum Profile thickness: 2.0mm (normally),1.8mm,2.5mm-3.0mm (special thickness)
Surface treatment: Anodized, Powder coating, Electrophoresis, PVDF coating, Wood grain
Glass: Float glass, reflective glass, tempered glass, low-E glass, laminated glass, available for your choice

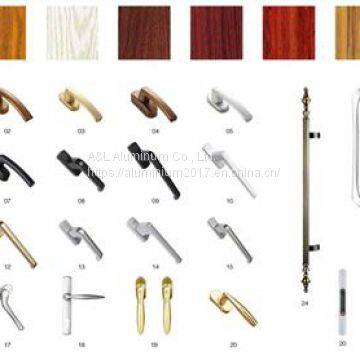

Accessories: Use EPDM sealant rubber; Stainless steel 304# accessories
Payment terms: Pay by T/T,30% deposit upon receiving the order, balance should be paid before the shipping effected.
Sample fee: Sample charge need to be prepaid before shipping
Delivery time: normally 15-30 days, depending on the quantity of order
Doors and windows installation methods:
Need to confirm these four basic work before the installation
1.The size of the windows and doors hole has formed and satisfies the requirement of the customization product size specifications.
2.Doors and windows installation position (horizontal, vertical, and depth, commonly known as positioning “three line”) have been identified; Embedded parts (such as the mouth of the cave need embedded concrete block, brick wood, etc.), the number of location and embedding intensity is comply with the design requirements; Influence of doors and windows installation and on-site handing facilities (such as scaffolding) into the mouth of the cave was removed.
3.The scene of the construction work environment temperature must be above 10 degrees Celsius, to ensure the sealing performance of seal.
4.Installation methods to protect casing and frame installation.
1) Protect box: in accordance with the drawings to pick the corresponding box of wood, and assemble them into a box.
2) Protect the box in place: according to the drawing the corresponding protective box into the mouth of the cave.
3) To protect the frame orientation: according to horizontal line, the hole centerline and deep lines (or Wall-limestone) will protect the frame orientation.
4)Protective box is fixed: will protect box fixed parts connected to the wall, make the protection frame and the wall fixed.
5)Gap filling: inside the box and wall clearance injected polyurethane foaming agent.
