Frame material: Aluminum alloy
Opening pattern: Horizontal
Opening style: Swing, Casement
Type: Casement window, screen window
Profile thickness: 1.4mm (normally thickness), 1.6mm-2.0mm (special thickness)
Surface treatment: Anodizing, Powder coating, Electrophoresis, PVDF coating in any color.
Glass: Single tempered glazing glass, double tempered glazing glass, low-E glass and laminated glass etc (have sound insulation and heat proof function)
Color: White, black, Bronze, Blue, Golden wood, Champagne or you want
Payment terms: Pay by T/T,30% deposit upon receiving the order, balance should be paid before the shipping effected.
Sample fee: Sample charge need to be prepaid before shipping
Delivery time: Normally 15-30 days, depending on the quantity of order
Opening function and specification

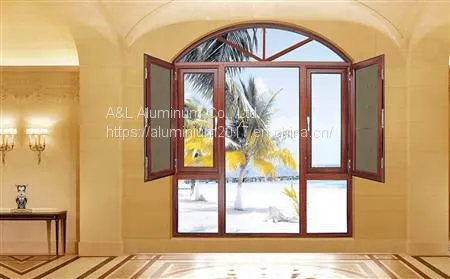

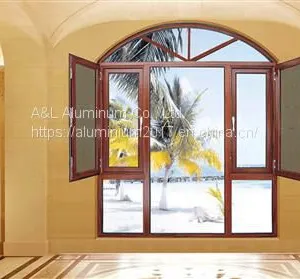

This 110mm series is realized the frame with mesh screen sash inside and glass outside, the middle with ensiform locking handle, strong and durable.
Opening: the width of opening window should between 500-800mm, the height should under 1600mm.
The basic structure and production process
The thickness is 1.4mm, the frame thickness is 110mm, the sash is: 78mm.
Color:Golden oak, Scented wood, Siam rose wood, Yellow acid branch, Brazil's red wood, Coffee, Grey
Open methods:
Product parameters
| Thermal break performance | 5-6 grade（3.2/2.8/2.0/M.K）(GB/T8484-2008) |
| Win pressure resistance | 5 grade KPa(GB/7106-2008) |
| Water resistance | 5 grade Pa(GB7108-2008) |
| Air permeation resistance | 6 grade (m/m.h)(GB/T7107-2008) |
| Acoustical performance | 3-6 grade 32-45dB(GB/T8485-2008) |
Glass collocate
| Glass | Hollow glass（5G+9A+5G） | With the decorative article |
| Hollow glass（5G+12A+5G） | Manual louver | |
| Others | Mesh screen window（316L stainless steel） |
Mesh screen window（316L stainless steel）also called the diamond mesh screen windows are made of heavy-duty precision looms with the high-strength stainless steel wire, and the surface of the spray matte treatment, which installed in the aluminum doors and windows with anti-mosquito and anti-theft function of the window. Diamond mesh screen window with high strength, simple and powerful, shear, impact resistance and other high-quality performance, the real embodiment of the anti-theft, pest control, ventilation, aesthetics, security and other advantages.
1. Security: Refuse of insecurity, to prevent damage or rat, snakes, flies, mosquitoes and other animal invasion.
2. Prevention of falling objects: when the windows open, leaving the room the elderly or children playing in an unsafe state, but the mesh screen window can prevent it.
3. Invisible: no sense of blocking, no sense of blocking, no sense of depression, the room at any time to keep bright and natural.
4. Easy to escape: instead of the traditional fixed fence, a fire and other crises when the family easy to flee the scene quickly.
5. Energy saving: do not cause air blocking, indoor breeze blowing at any time to reduce the unnecessary air conditioning operation.
6. Easy to care: dust and oil cleaning easy, with a vacuum cleaner, absorbent sponge or ordinary brush a little care that bright as new.
7. To resist UV: can withstand up to 30% of the UV, so you enjoy the sun at the same time, but also to avoid UV damage to the skin.
8. Use-friendly design: domestic exclusive doors and windows corner design, reducing the sharp doors and windows hit the angle of the elderly and children's injury.
9. Low-carbon environmental protection: the use of environmentally friendly materials, pollution-free.
10. Wide range: suitable for high-end residential and villa group.
