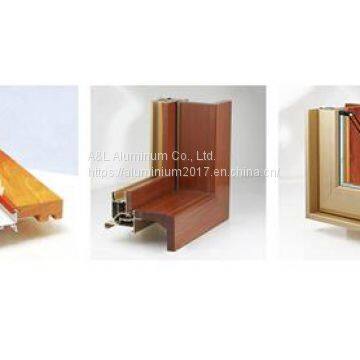

Frame material:Aluminum clad wood composite profile
Opening pattern:Horizontal
Opening style:Casement, tilt-turn, top-hung etc
Technology:Thermal break/ heat insulation or non thermal break
Profile thickness:1.4mm (normally thickness), 1.6mm-2.0mm (special thickness)
Surface treatment: Powder coating for aluminum outside and solid wood inside
Glass:Single tempered glazing glass, double tempered glazing glass, low-E glass and laminated glass etc
Color:White, black, Bronze, Blue, Golden wood, Champagne or you want
Payment terms:Pay by T/T,30% deposit upon receiving the order, balance should be paid before the shipping effected
Sample fee:Sample charge need to be prepaid before shipping
Delivery time:normally 15-30 days, depending on the quantity of order
The advantages and using methods of thermal-break within pour open windows
The broken bridge within pour open aluminum window is also called broken bridge flat on the hanging aluminum window, through the operation of the handle, driven by the internal structure of the window linked to the structure, so that the windows can be flat or indoors to the room to open a certain angle ventilation. The windows do not occupy the indoor space, can be a good ventilation, and can prevent the theft of the intruder.
The advantages of thermal-break within pour open windows
1. Broken bridge aluminum within pour open window and more lock point seal, you can make the window seal greatly enhanced. After the enhanced sealing, its insulation and sound insulation will also be improved.
2. The design of the mushroom head lock greatly enhances the anti-theft performance of the window so that the thieves may almost drop to zero by prying the sash into the room.
3. The use of the inverted state, can make the room natural ventilation, the wind is not directly blowing the body, especially in the morning and winter in the bedroom need to improve the indoor air quality, not easy to cold.
4. Broken bridge aluminum down (on the suspension) can prevent the children climb to the windowsill on the danger, and the head of the windows; also avoid the rain to forget the window, the house rain problem.
5. Within pour open windows do not account for the characteristics of indoor space to avoid the flat window and curtains, water heaters, range hoods, cabinets and other interference with the drawbacks of the fight, so you are more reasonable in the interior design.
The operation of broken bridge within pour open aluminum window
1. The handle is rotated 180º and can be turned on. The opening angle is between 5º and 10º.
2. When the handle is in the horizontal position, the internal opening function can be realized. The opening angle can be controlled by the lower limiter.
3. The handle down to the vertical position, to achieve multi-point lock.
Product parameters
Thermal break performance |
5-6 grade（3.2/2.8/2.0/M.K）(GB/T8484-2008) |
Win pressure resistance |
5 grade KPa(GB/7106-2008) |
Water resistance |
5 grade Pa(GB7108-2008) |
Air permeation resistance |
6 grade (m/m.h)(GB/T7107-2008) |
Acoustical performance |
3-6 grade 32-45dB(GB/T8484-2008) |
Glass collocate suggestions
Glass |
Hollow glass（5G+9A+5G） |
With the decorative article |
Hollow glass（5G+12A+5G） |
||
Others |
Mesh screen window（304Lstainless steel） |
