Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > HL120D-7600 120w Output.6-30V Wide Input Intelligent Automotive Car PC Power Supply,Carpc Carputer in Vehicle Mini Pico-

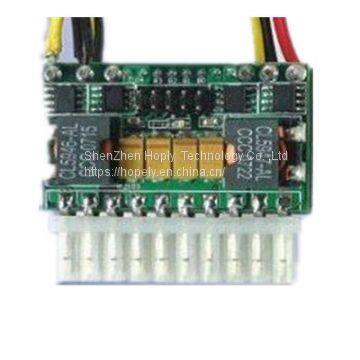

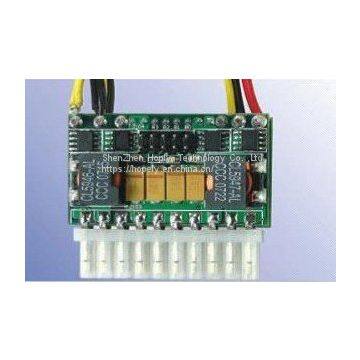

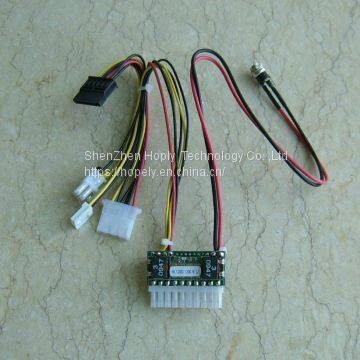

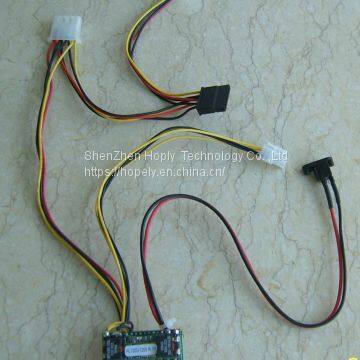

HL120D-7600 120w Output.6-30V Wide Input Intelligent Automotive Car PC Power Supply,Carpc Carputer in Vehicle Mini Pico-
Negotiable
MOQ: 1 Case (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
hoply
Place of Origin:
China
Model Number:
HL120D-7600
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
170W Wide Input DC-DC Power Supply 6-30V DC Input ATX Output Industrial PC IPC ATX Smart PSU , In Car Boat PC ITXpsu ITXUS$ 65.95 - 70MOQ: 1 Unit -
90W PicoPSU Mini-itx Industrial Embeded Car Pc DC-DC Power Suppy Converter , POS Terminals , Mini-itx PSU , ITX PsusUS$ 19.95 - 23MOQ: 1 Piece
-
HL75D-1200 12V DC Input 75W Output DC-DC Pico Power Supply for Embedded Industrial PC, POS, ATM and Media Player ComputeUS$ 19.95 - 23MOQ: 1 Piece
-
Pico ITX Power Supplies , HL120D-7600 6-36V Input Mini-itxut Industrial PC IPC ATX Smart PSU , In Car Boat PC ITXpsu ITXUS$ 65.95 - 70MOQ: 1 Unit
-
HL170D-7600,170W,6-40V Wide Input Intelligent Automotive Mini-itx Ndustrial PC ,IPC PSU,DC/ ATX Smart PSU , Boat PC PsusUS$ 65 - 73MOQ: 1 Piece
Brand Name
hoply
Place of Origin
China
Model Number
HL120D-7600
|
Name:120W DC/DC-ATX ITPS MINI CarPC Power Supply
Mould:HL120D-7600
|
| 1 Function Description DC/DC ATX power supply for automobile application, 6-30VDC input, +5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs. 2 Operation EnvironmentItemUnitMinimumTypicalMaximumTest ConditonTemperature?-20 50 RH%RH40 90No Condensation3 Technique Requirement3.1 Input CharacteristicItemUnitMinimumTypicalMaximumTest ConditonDC INPUTVdc612/2430 Input CurrentA 5/10 3.2 Output Characteristic3.2.1 Output Voltage RegulationOutputMin. LoadMax. LoadPeak LoadOutput Voltage rangeRipple(pk-pk)(rated load?20MHz limit)*+5V0.5A6A8A4.75~5.25V50mV+12V0.3A3A 11.40~12.60V120mV+3.3V0.5A6A8A3.14~3.55V50mV-12V0A0.1A -11.0~-13.2V120mV+5VSB0.1A2A 4.75~5.25V100mV*: Need 0.5m/s air flow fan cooling . 3.2.2 Others Output CharacteristicsItemUnitMinimumTypicalMaximumTest ConditonOutput PowerW 120 DC output powerEfficiency% 90 Rated load Turn on Overshoot% 10 Rise Timems 20 Output voltage up from 0% to 95%,rated loadHold up Timems 2 Rated load3.3 EMC RequirementItemRequestStandardJudgement GradeConducted interferenceCLASS B, 3dB marginEN55022Ensure system pass the CLASS B and have 3dB marginRadiation interferenceCLASS B, 3dB marginEN55022Ensure system pass the CLASS B and have 3dB margin3.4 Protection FunctionItemUnitYes/NoMinimumTypicalMaximumRecovery CharacteristicInput invertion protection Yes +5V OVPVYes5.8 6.8Latched, need to re-apply DC input to recovery+12V OVPVYes13.2 15.6Latched+3.3V OVPVYes3.9 4.3LatchedShort CircuitProtection(+5V,+12V,+3.3V) Yes Lached |
