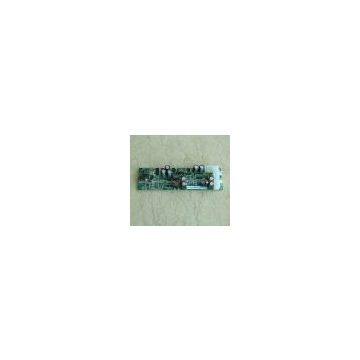

170W DC/DC CarPc Power Supply
Negotiable
/ Case
1 Case(Min.Order)
- 0 Case / Cases per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | hoply | Place of Origin | China | |
| Model Number | HL170D-7600 |
Product Description
Features:
• 6-36VDC input ,170W ATX output
• Over voltage and short circuit protection
• Over 92% efficiency
• Meet ISO7637-2 level IV standard for all 7 waveforms
• Intelligent ITPS(ACC) and Amplifier remote control
• Input OVP,UVP protection
• Input inversion protection (No damage)
• RoHS compliant and 2 year warranty
Input Specifications:
Input voltage range: 6-36VDC
Input current: 13A@12VDC
Input fuse: 15AX2
ISO7637-2 compliance: Yes
Input voltage range: 6-36VDC
Inrush current (cold start): 25A
Input to output: Non-Isolated
Input over voltage protection: Yes
Input under voltage protection: Yes
Input inversion protection: Yes (No damage)
Output Specifications:
|
Voltage
|
+3.3V
|
+5V
|
+12V
|
+5VSB
|
-12V
|
|
Current
|
8.5A
|
8.5A
|
8.5A
|
2.0A
|
0.1 A
|
|
Ripple(mV) *
|
50
|
50
|
120
|
50
|
120
|
|
OCP
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Regulation
|
2%
|
2%
|
2%
|
2%
|
10%
|
|
OVP
|
yes
|
yes
|
yes
|
N/A
|
N/A
|
|
SCP
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Rise time
|
10ms
|
10ms
|
10ms
|
10ms
|
10ms
|
|
Overshoot
|
10%
|
10%
|
10%
|
10%
|
10%
|
|
Dynamic**
|
5%
|
5%
|
5%
|
5%
|
5%
|
General Specifications:
Efficiency: 92%
Hold up time: 2ms
Meet safety: UL,CE,CCC
MTBF(MIL-HDBK-217): >120,000hours
Switching frequency: 200K
Weight: 200g
Life: >5years
Failure rate: <0.5%
Input ACC control (ITPS): Yes
Environmental Specifications:
Operating temperature: -40 to +65 degree
Storage temperature: -40 to +85 degree
Relative humidity: 5 to 95% RH
Vibration: 5-500 Hz,2.4 G rms
Operating temperature: -40 to +65 degree
Cooling: Natural Convection
Altitude: 10,000 feet max.
Shock: Per MIL-STD-810E
Conducted immunity: EN55022 Class A
Radiated immunity: EN55022 Class A
ESD: EN61000-4-2, level 3
Surge: EN61000-4-5, level2
Fast transients: EN61000-4-4, level 3
