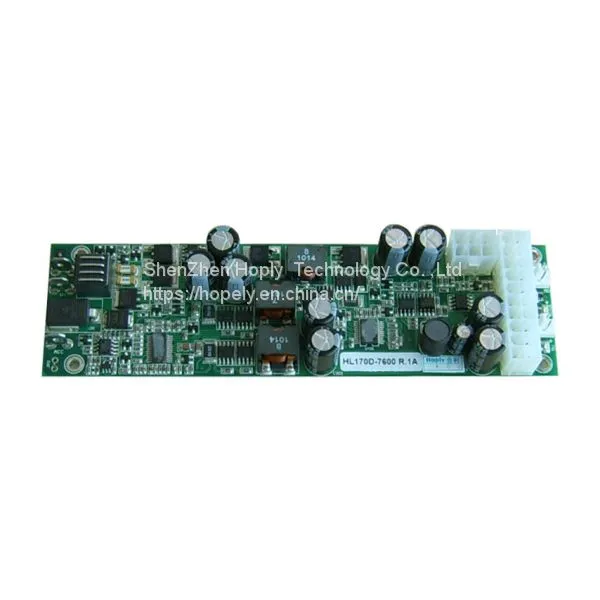

HL170D-7600,170W,6-40V Wide Input Intelligent Automotive Mini-itx Ndustrial PC ,IPC PSU,DC/ ATX Smart PSU , Boat PC Psus
US$ 65 - 73
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
hoply
Place of Origin:
China
Model Number:
HL170D-7600
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days
Related Products
Brand Name
hoply
Place of Origin
China
Model Number
HL170D-7600
Interface Type
20Pin
Products Status
Stock
Application
Other, Desktop, Server, embedded pc
Rating Power
< 150W
Features:
• 6-40VDC input ,170W ATX output
• Over voltage and short circuit protection
• Over 92% efficiency
• Meet ISO7637-2 level IV standard for all 7 waveforms
• Intelligent ITPS(ACC) and Amplifier remote control
• Input OVP,UVP protection
• Input inversion protection (No damage)
• RoHS compliant and 2 year warranty
Input Specifications:
Input voltage range: 6-40VDC
Input current: 13A@12VDC
Input fuse: 15AX2
ISO7637-2 compliance: Yes
Input voltage range: 6-36VDC
Inrush current (cold start): 25A
Input to output: Non-Isolated
Input over voltage protection: Yes
Input under voltage protection: Yes
Input inversion protection: Yes (No damage)
Output Specifications:
Voltage |
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
Current |
8.5A |
8.5A |
8.5A |
2.0A |
0.1 A |
Ripple(mV) * |
50 |
50 |
120 |
50 |
120 |
OCP |
yes |
yes |
yes |
yes |
yes |
Regulation |
2% |
2% |
2% |
2% |
10% |
OVP |
yes |
yes |
yes |
N/A |
N/A |
SCP |
yes |
yes |
yes |
yes |
yes |
Rise time |
10ms |
10ms |
10ms |
10ms |
10ms |
Overshoot |
10% |
10% |
10% |
10% |
10% |
Dynamic** |
5% |
5% |
5% |
5% |
5% |
General Specifications:
Efficiency: 92%
Hold up time: 2ms
Meet safety: UL,CE,CCC
MTBF(MIL-HDBK-217): >120,000hours
Switching frequency: 200K
Weight: 200g
Life: >5years
Failure rate:
Input ACC control (ITPS): Yes
Environmental Specifications:
Operating temperature: -40 to +65 degree
Storage temperature: -40 to +85 degree
Relative humidity: 5 to 95% RH
Vibration: 5-500 Hz,2.4 G rms
Operating temperature: -40 to +65 degree
Cooling: Natural Convection
Altitude: 10,000 feet max.
Shock: Per MIL-STD-810E
Conducted immunity: EN55022 Class A
Radiated immunity: EN55022 Class A
ESD: EN61000-4-2, level 3
Surge: EN61000-4-5, level2
Fast transients: EN61000-4-4, level 3
