4L Ultrafine Powder Manufacturer Planetary Laboratory Grinder Machine
Description
Areas of application
Chemistry, biology, pharmacology and pharmaceutical research, medicine, nuclear research, spectroscopy, x-ray fluorescence.
Method of operation
The grinding sample is comminuted by high-energy impacts from grinding balls and friction between balls and the grinding jar wall.
Working Principle |
impact and friction force |
Item No. |
DECO-PBM-V-2L-A |
Compatible Grinding Jars |
(250ml~500ml) * 4 |
Max Feeding Capacity |
2/3 capacity of the grinding jar |
Operation Mode |
2 or 4 grinding jars working simultaneously |
Feeding Granularity |
Soil materials |
Discharging Granularity |
μm |
Sample Type |
hard, medium-hard, soft, fibrous, brittle, moist - dry or wet |
Rotational Speed of Grinding Jar |
800rpm |
Rotational Speed Ratio (planetary disk/jar) |
1 : 2 (≤4L) and 1 : 1.5 (≥12L) |
Drive Mode |
gear drive and belt drive |
Speed Control |
stepless speed regulation |
Electrical Details |
110V/220VAC, 50Hz, 0.75KW |
Max Continuous Grinding Time (full-load) |
72hours |
Weight |
120KG |
Dimension (L*W*H) |
720*480*630mm |
Noise Level |

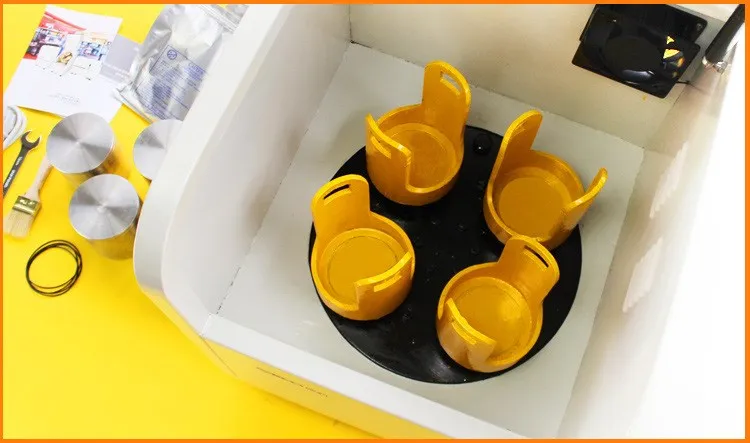

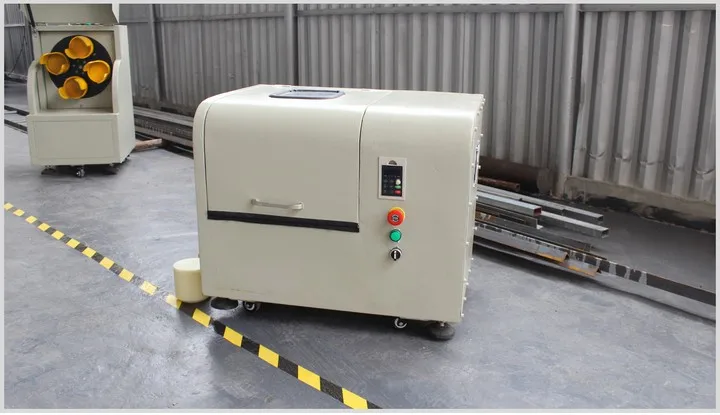

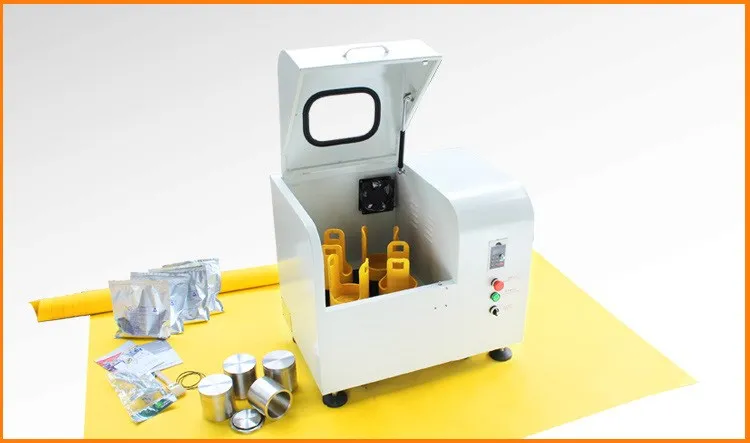

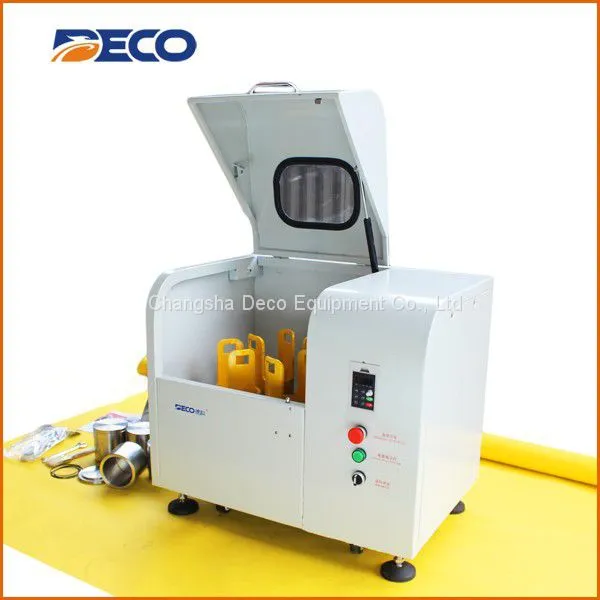

Detail images:
Equipment
The standard equipment delivered with 4L laboratory grinder machine doesn't include the grinding jars or balls, they should be ordered as accessories.
Accessories
Please note: For this DECO mill, you require at least two grinding jars of your choice and the corresponding number of grinding balls. The grinding jar material must also be harder than the material to be ground. In normal cases, grinding jars and balls of the same material are used. To shorten the grinding time, larger or heavier grinding jars and grinding balls with a higher density can be used.

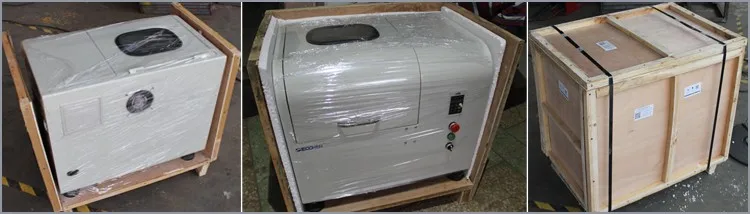

Packing:
Gross weight: 150KG
Pack dimension: 82*60*83CM
Package: plastic wrapping, styrofoam and standard export plywood case.
Shipment
1. By FedEx /DHL /UPS /TNT /EMS door to door services.
2. By Air or by Sea for batch goods
3. Customers specifying freight forwarders or negotiable shipping methods are available.
4. Lead time: 3 to 5 days for regular products.
Payment
1. Payment: 100% T/T, Western Union, PayPal or Alibaba Secure Payment in advance;
2. No MOQ;
3. 1 year warranty;
