US$ 1800 - 2000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DECO
Place of Origin:
China
Model Number:
DECO-PBM-V-2/4/6L
Contact Supplier Request Quote Chat Now
Changsha Deco Equipment Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DECO
Place of Origin China
Model Number DECO-PBM-V-2/4/6L
Type Ball Mill
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1year
Weight 80KG
Dimension(L*W*H) 720*468*535mm
Condition New
Product Type Other, Small particles
Voltage AC110/220V
Power(W) 750W

Bench-top powder sample grinding, planetary small laboratory ball mill



Description

  • Features of laboratory ball mill

Elegant design, easy to operate
Ideal for wet or dry grinding operation
Energy and speed control enables reproducible results
Automatic and programmable control with LED display
Multiple grinding modes to choose
Fast rotational speed, high efficiency and fine granularity
Reversing function
Programmable interval and pause times
Four samples with different sizes and materials in one experiment
Stepless speed regulation; ideal rotary speed selection according to experimental results
Gear-drive offers an effective solutions to problems caused by belt driving, such as belt creep and belt abrasion
Cooling of the grinding chamber with a built-in fan for long grinding times

  • Areas of Application

Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, sintered ceramics, clay, fireclay
Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
Metallurgy: ores, sinters
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography
Bench-top wet/dry grinding, planetary small laboratory ball mill

  • Working Principle of laboratory ball mill

The grinding sample is comminuted by high-energy impacts from grinding balls and friction between balls and the grinding jar wall.
Bench-top wet/dry grinding, planetary small laboratory ball mill

Technical Data of laboratory ball mill

Working Principle

impact and friction force

Item No.

DECO-PBM-V-2L-B

Compatible Grinding Jars

(250ml~500ml) * 4

Max Feeding Capacity

2/3 capacity of the grinding jar

Operation Mode

2 or 4 grinding jars working simultaneously

Feeding Granularity

Soil materials<10mm, others materials <3mm

Discharging Granularity

down to 0.1μm

Sample Type

hard, medium-hard, soft, fibrous, brittle, moist - dry or wet

Rotational Speed of Grinding Jar

800rpm

Rotational Speed Ratio (planetary disk/jar)

1 : 2 (≤4L) and 1 : 1.5 (≥12L)

Drive Mode

gear drive and belt drive

Speed Control

stepless speed regulation

Electrical Details

110V/220VAC, 50Hz, 0.75KW

Max Continuous Grinding Time (full-load)

72hours

Weight

76KG

Dimension (L*W*H)

720*468*535mm

Noise Level

<70dB



Photo Show
Bench-top wet/dry grinding, planetary small laboratory ball mill

Bench-top wet/dry grinding, planetary small laboratory ball mill
Bench-top wet/dry grinding, planetary small laboratory ball mill

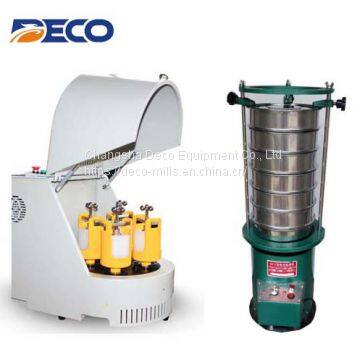

Complete Set of Laboratory Ball Mill
Bench-top wet/dry grinding, planetary small laboratory ball mill

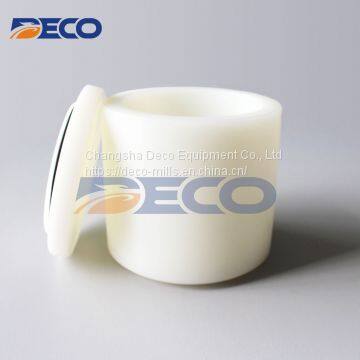

Accessories
Please note: For this DECO mill, you require two or four grinding jars of your choice and the corresponding number of grinding balls. The grinding jar material must also be harder than the material to be ground. In normal cases, grinding jars and balls of the same material are used. To shorten the grinding time, larger or heavier grinding jars and grinding balls with a higher density can be used. However, the standard packages of the mill doesn't include the grinding jars or balls. They must be ordered as accessories.


Related Grinding Tools

Bench-top wet/dry grinding, planetary small laboratory ball mill

Bench-top wet/dry grinding, planetary small laboratory ball mill



Packages

Bench-top wet/dry grinding, planetary small laboratory ball mill



Warranty

One year munufactured limited warranty

Free replacement for defective parts due to manufacturing

Any defective must be reported within 7 days after receiving the shipment

DECO reserves right to inspect all defective claims



FAQ

Q: What's the discharging granularity can your ball mills achieve?

A: The smallest particle size our mill can mill down to is 0.1µm. However, the final fineness varies greatly with different materials. The actual grinding result depends on mill speed, ball size, material, and grinding time. You will be able to find the best combination after a couple of tries.



Q: Does the price offered include the ball mill jars and balls?

A: The standard accessories don't include the jars or balls. They must be ordered as accessories.



Q: How long will you deliver the goods after I place an order?

A:  We will send the items within 7 days once your payment is completed. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your products is inspected.



Q: What's the warranty of the products?

A: For the ball mill machines, we offer you one year warranty. If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.


How to choose a right model:
Please offer us more information so that we can recommend suitable planetary ball mill for you!
(1) Material

  • What's your raw material?

  • What's your sample granularity?

  • What's your requirements on the discharging granularity?

(2) Capacity
How many of the samples do you need to grind each time?

Welcome to send us your sample material and we will perform a sample preparation -non-binding and free-of-charge. Or if anything interested in, please don't hesitate to contact me!


Product Tags: laboratory ball mill , planetary lab ball mill , planetary ball mill grinding
