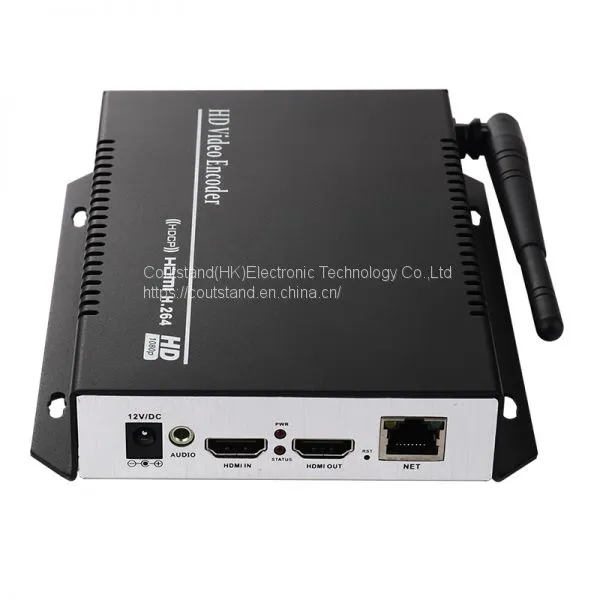

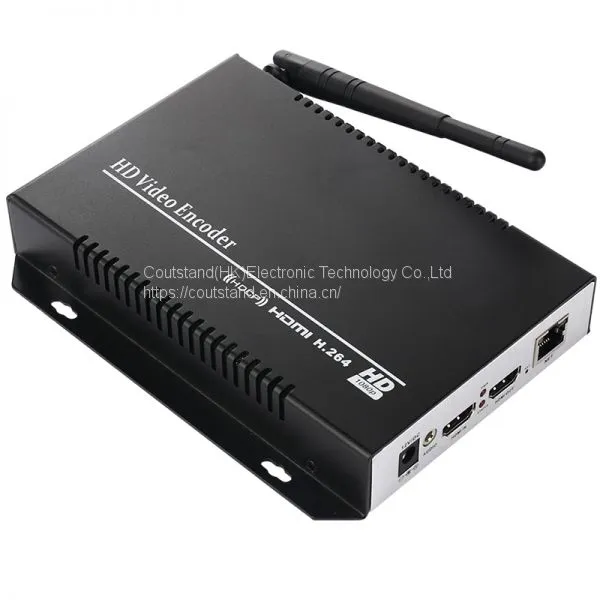

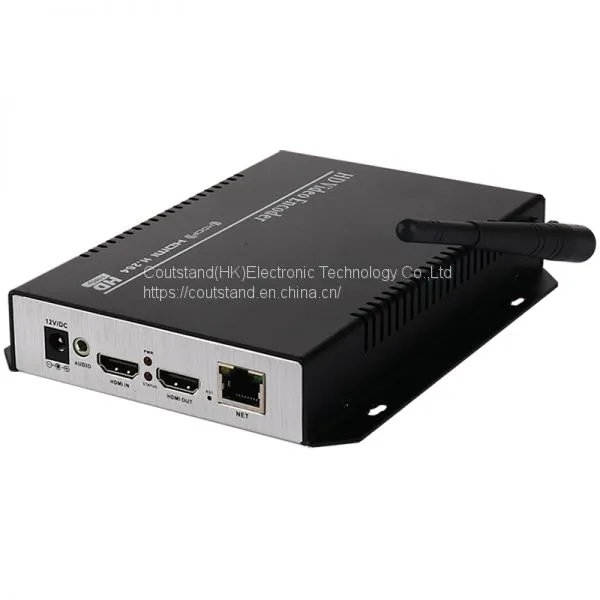

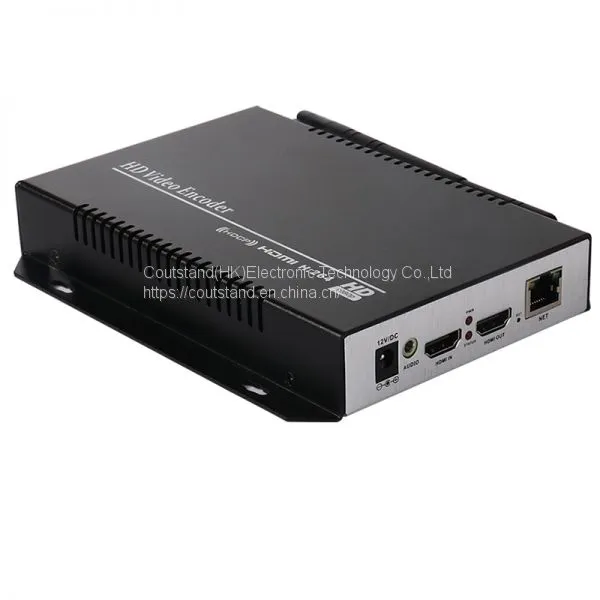

H.264 HDMI Video Encoder - It is a HD audio & video encoding device with powerful functionality, which supports input HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@30fps, 720@60fps, etc., works with RTMP / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.
Features

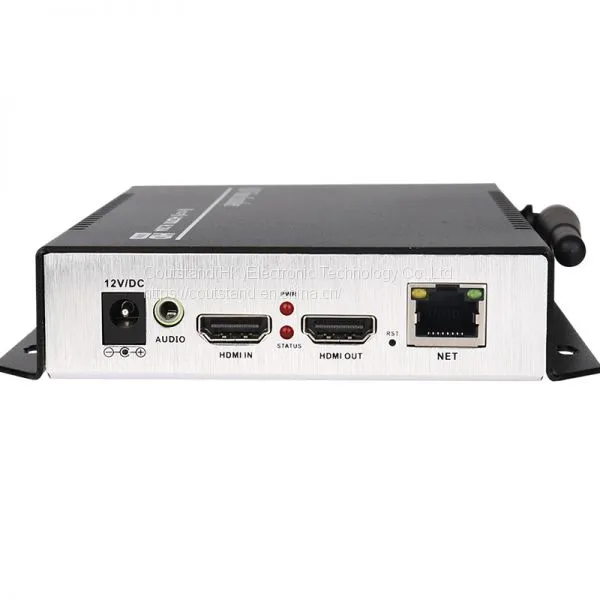

1. With 2 HDMI ports, 1 HDMI input, 1 HDMI loopback.
2. Embedded HiLinux System, stable and effective.
3. Friendly Web Control UI, default IP is 192.168.0.31.
4. Support RTMP / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF.
5. Support output 2 RTMP (main stream & 2nd Stream) to different Media Server.
6. Main Stream Support output resolution - 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270
7. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
8. Output Stream bitrate adjustable.
9. Support Audio digital gain.
10. Support External Analog audio input.
11. Support Image quality Settings, Brightness, Contras, Hue, Saturation.
12. Support firmware upgrade.
13. Wifi version for option.
14. IP address can be set by yourself.
15. Support remote control via router port forward.
16. 3U chassis available, max supports 16Pcs Encoder installed.
