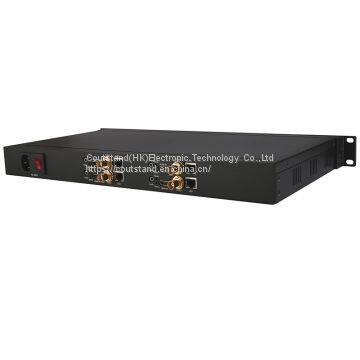

Nh100ch-4-1u is an HDMI interface professional high definition audio and video encoder. This product supports 4-way hd HDMI and 4 road signal-clear audio and video collection functions, encoding output h.264 format, audio MP3/AAC/G711 format.Adjustable coding bit rate, frame rate is adjustable, adjustable output resolution, etc., to support HTTP/HLS/FLV/RTSP/RTP/RTMP/UDP/ONVIF protocol transmission.
Input high-definition HDMI hd video and audio signals, coding processing, through DSP chip compression processing, the output standard TS network flow, and the launch of the product to fill the gaps in the industry, directly replace the traditional acquisition card or software coding way, adopts hard coding method, the system more stable and the image effect is more perfect, it is widely used in all kinds of needs for high definition video signal and high resolution high frame rate on the occasion of collection and transmission based on IP network, strong expansibility can easily cope with different industries and needs more, can be used as a live video encoder.
Product features:
1. Simultaneous output of main sub-stream (firmware package can be upgraded);
2. The embedded LINUX;
3.ONVIF protocol, support various manufacturers NVR, decoder, platform software, etc.;
4. Multiple encoder levels: h. 264/AVC High profile (highest to level 5.1), compatible with Main profile and Baseline;
5. Code control VBR/CVB (optional);
6.TS single packet number: 3-128;
7. Test support platform for the domestic main video broadcast: mango TV live, mango, tencent live live video, thunderbolt, youku, Chinese prickly ash, witnessing, netease CC, netease BOBO, a live, bettas, reflected the guest, etc.;
8. Supported international video live platform: YouTube, UStream, Twitch, etc.
9. Supported domestic outbound Media service platform /CDN system: Wowza, FMS, RED5, SRS, Xtream Codes, Media Server, aliyun, aodian cloud, etc.;
10. Support character/picture overlay function, coordinate can be adjusted;
11. The image customization is supported without source input;
12. Support to the interlaced processing;
13. Support logo customization.
