MPEG-4 /H.264 AVC HDMI+AV /CVBS /RCA Video Encoder

MPEG-4 /H.264 AVC HDMI+AV /CVBS /RCA Video Encoder thumbnail-1
MPEG-4 /H.264 AVC HDMI+AV /CVBS /RCA Video Encoder thumbnail-2
MPEG-4 /H.264 AVC HDMI+AV /CVBS /RCA Video Encoder thumbnail-3
MPEG-4 /H.264 AVC HDMI+AV /CVBS /RCA Video Encoder photo-1

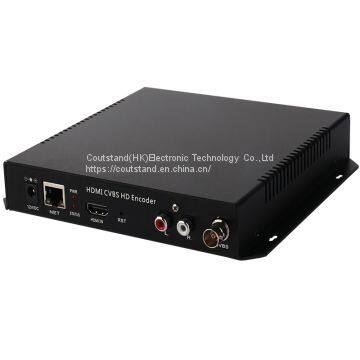

MPEG-4 /H.264 AVC HDMI+AV /CVBS /RCA Video Encoder photo-2

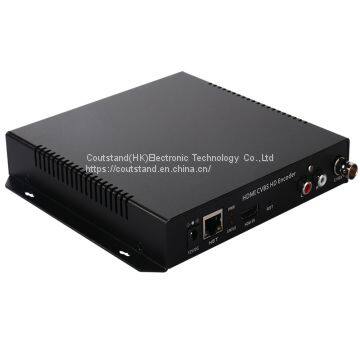

MPEG-4 /H.264 AVC HDMI+AV /CVBS /RCA Video Encoder photo-3
US$ 101 - 201 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
COUTSTAND
Place of Origin:
China
Model Number:
SX-SD3
Contact Supplier Request Quote Chat Now
Coutstand(HK)Electronic Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COUTSTAND
Place of Origin China
Model Number SX-SD3
Special Feature Mini System
Player Type Blu-Ray Player
Channels 7.1

The single channel MPEG-4 /H.264 AVC HDMI AV video encoder is our newest professional HD audio and video encoding device with powerful functionality. It is equipped with 1 channel HDMI input and 1 channel AV /RCA /CVBS input supporting H.264 /AVC high profile /main profile /baseline profile coding format and three video streamings output, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, ONVIF, HLS, FLV. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.

Not only single channel, we also produce multichannel HDMI AV video encoder which is packed by 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.



•   Embedded HiLinux System, stable and effective

•   Support H.264 /AVC baseline /main /high profile encoding

•   From 16Kbit/s to 12Mbit/s for CBR /VBR code rate controlling

•   Support three video streamings output (Mainstream and secondstream and CVBS streaming)

•   Support HTTP, UDP /RTP, RTSP, RTMP, ONVIF, HLS, FLV streaming protocol

•   Support image, logo, text parameter settings on the output video streaming

•   Support English WEB operating interface and language customizable

•   Support output video streaming resolution setting(Up to 1920 * 1080P /60fps)

1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144

•   Support GOP frame rate settings

•   Support output 3 RTMP (main streaming & 2nd streaming & CVBS streaming) to different streaming media server

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   A wide area network remote management (Web control panel)

•   Support different protocol transmission for the main streaming & 2nd streaming & CVBS streaming

•   Support MP3 and AAC audio coding format selection

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed


Product Tags: HDMI encoder , SDI encoder , 3G SDI
