High resolution full color waterproof p5 outdoor led display
Outdoor full color high resolution led display
Outdoor full color LED advertising display screen could be used for outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
Features of outdoor led display
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any led in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
| Items | Parameter | |
| full color led display Display color | Full color | |
| outdoor led display Pixel Pitch | 8 mm | |
| full color led screen LED Type | 3 in 1 | |
| Pixel Density | 15625 dots/sqm | |
| Resolution | 32*16 pixels | |
| Color Configuration | 1R1G1B | |
| Module structure | Integrated Light/Driver | |
| Max power | 22 W | |
| Driver Mode | 1/4 scan; constant current drive | |
| Module Size | 256*128*28 mm | |
| Weight/pcs | 450g | |
| Electrical Specifications | ||||||
| Input voltage (Vcc) | 5.0±0.25 V | |||||
| Module current (I) | Max. 4.5 A | |||||
| Clock frequency (F) | Max18.75 MHz | |||||
| Operation temperature(Topr) | -10 ~ +60 ℃ | |||||
| Storage temperature(Tstg) | -20 ~ +80 ℃ | |||||
| Optical Characters | ||||||
| R | G | B | Weight | |||
| Luminance (IV) | 2100 cd/m2 | 4900 cd/m2 | 800 cd/m2 | 7500 cd/m2 | ||
| Wavelength(λp) | 625 | 523 | 468 | |||
| Viewing angle(2θ1/2) | Horizontal | 110 nm | ||||
| Vertical | 110 nm | |||||

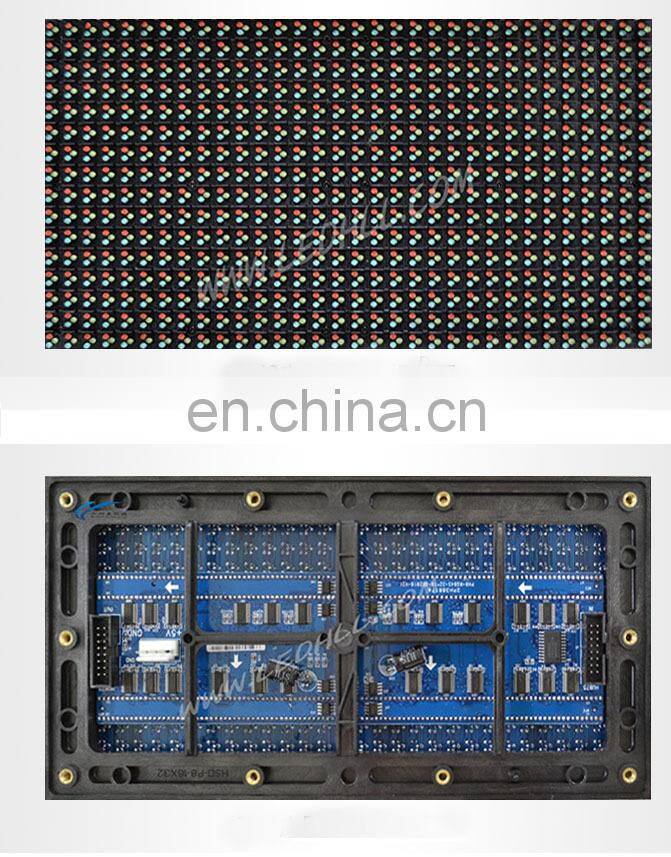

1. Module images

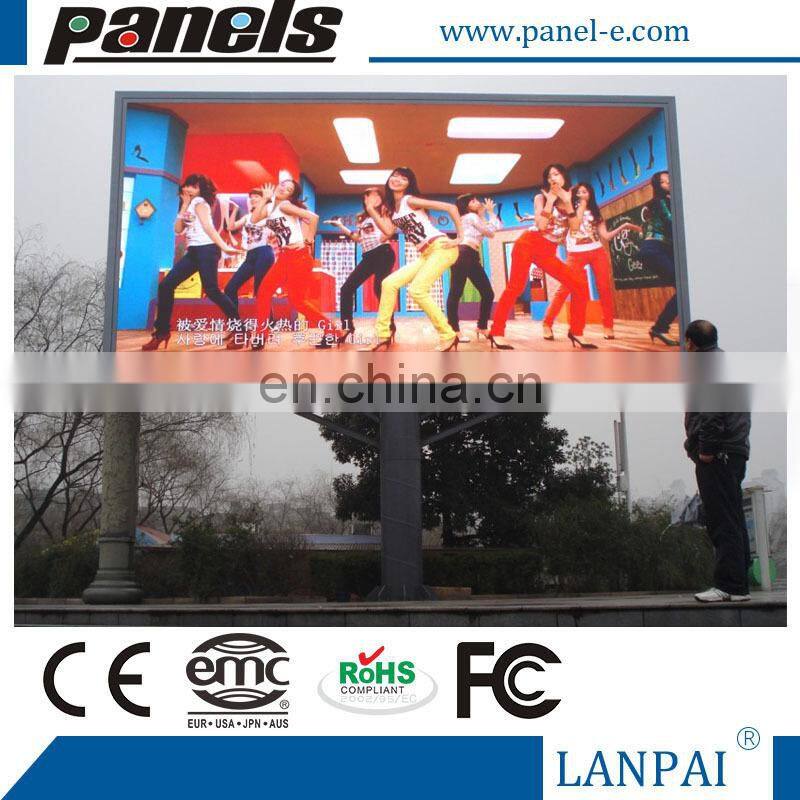

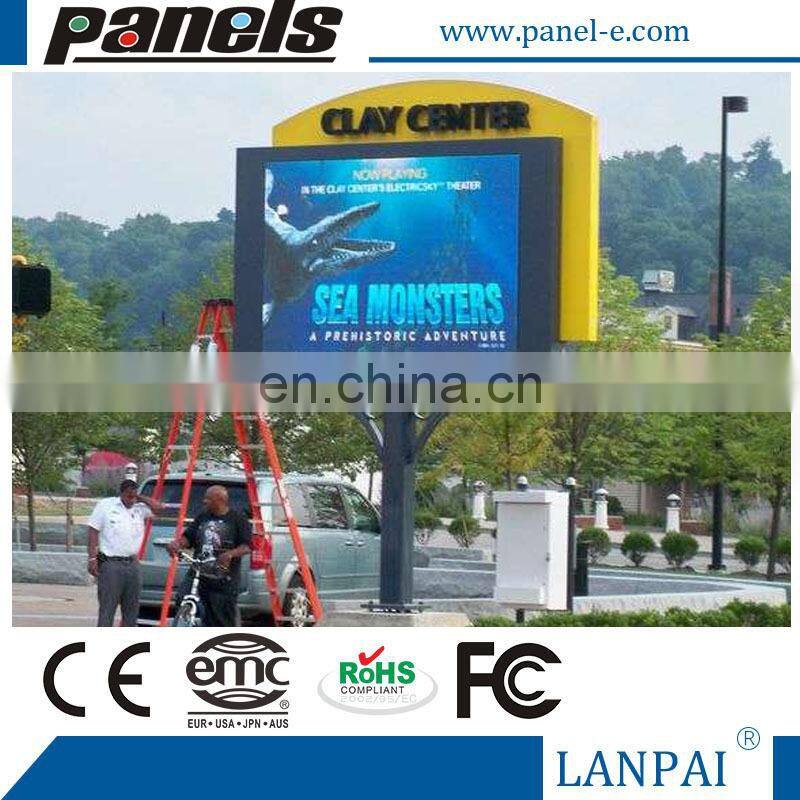

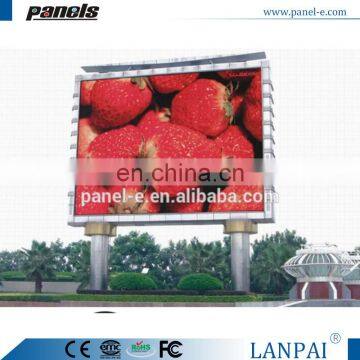

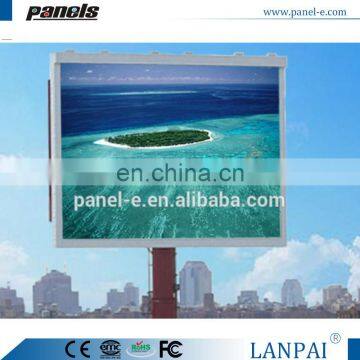

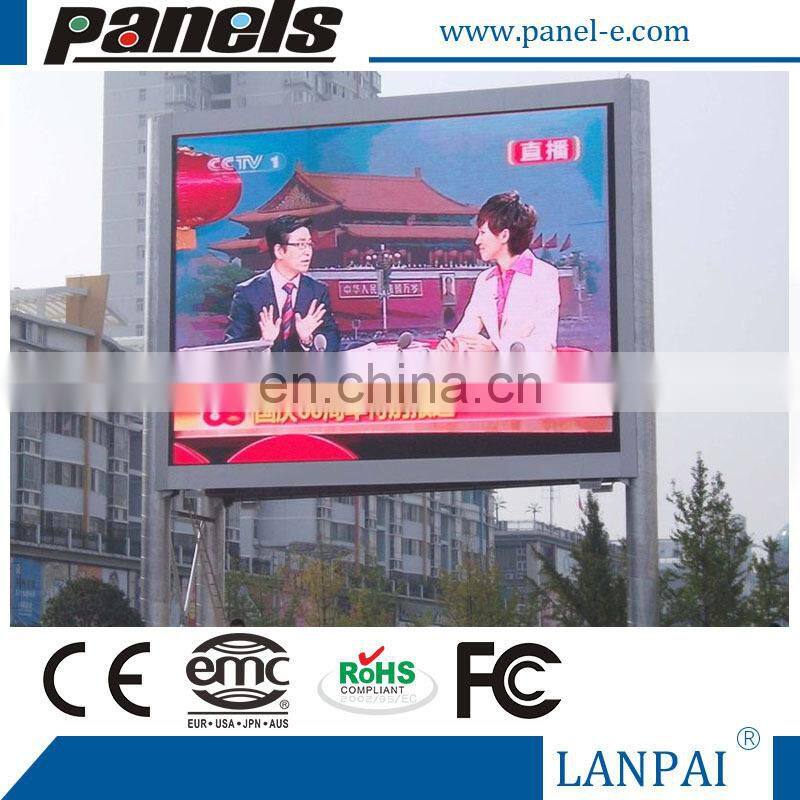

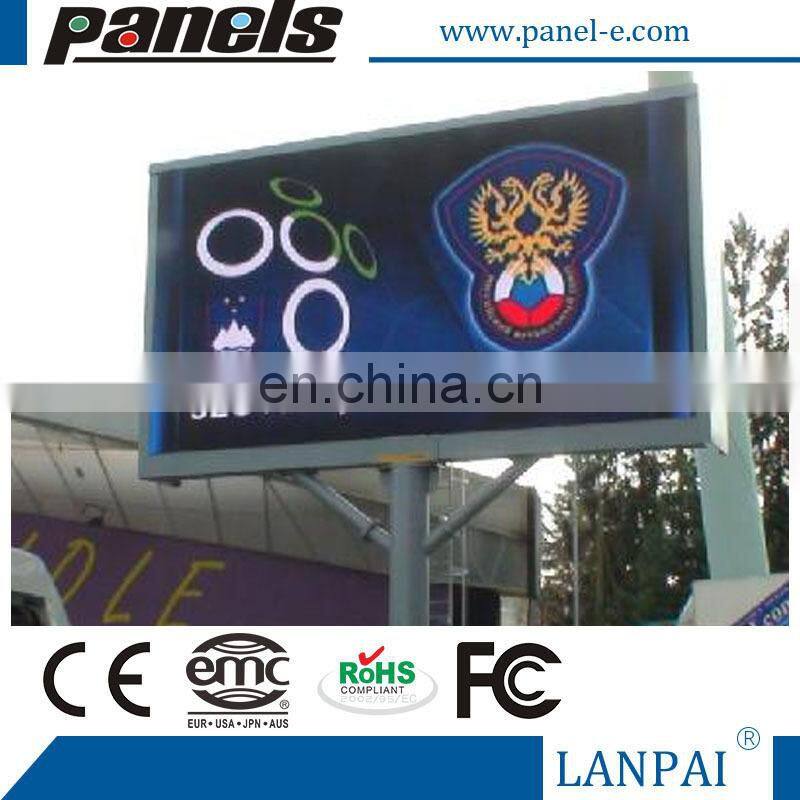

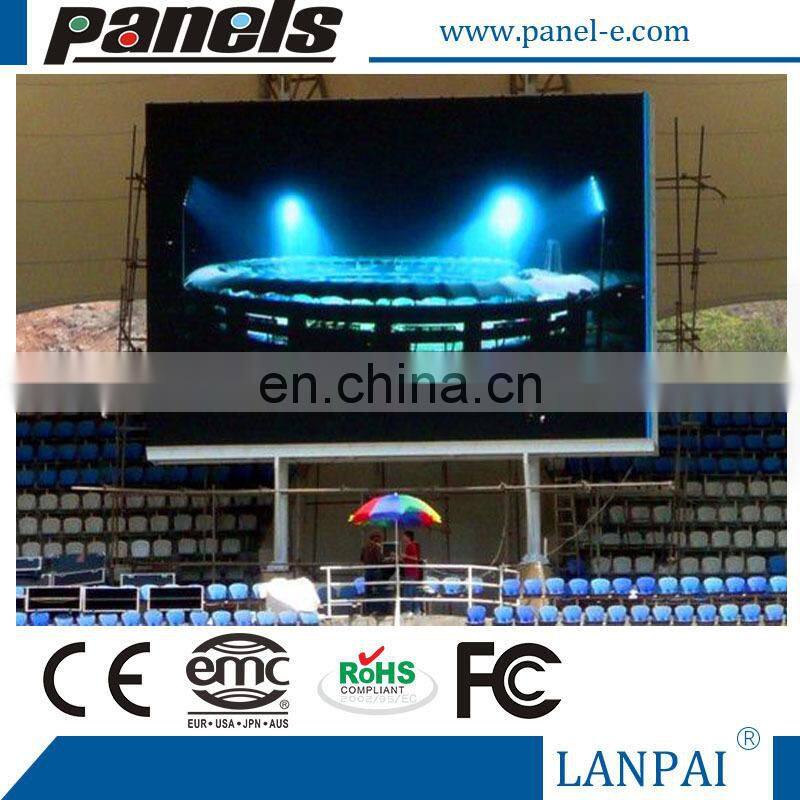

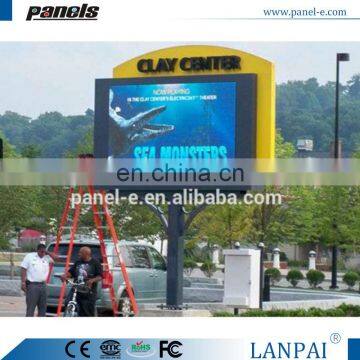

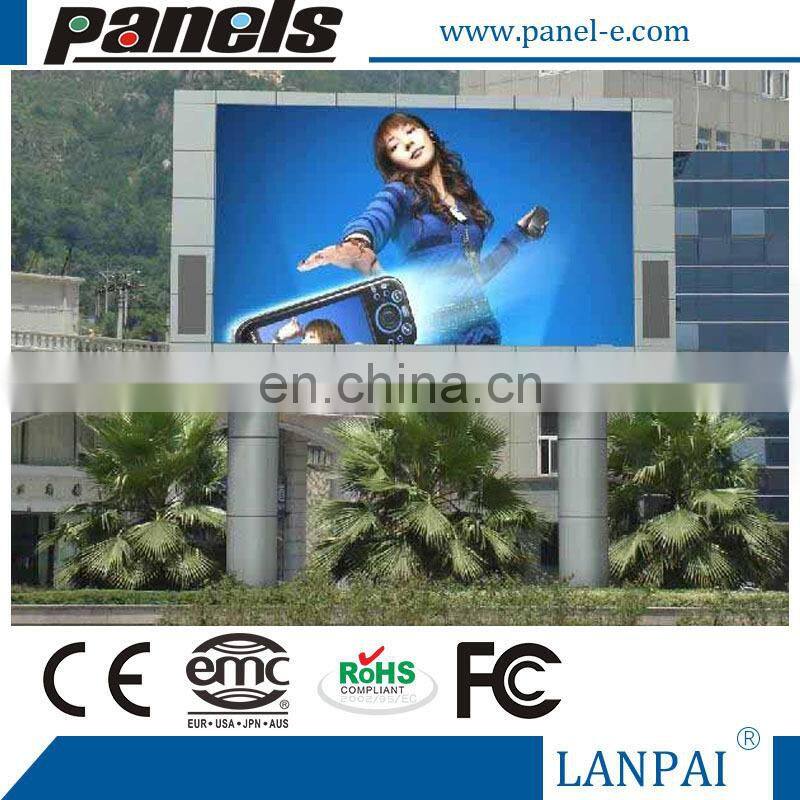

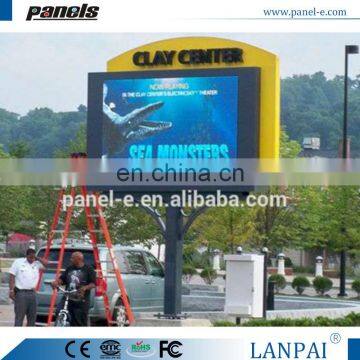

2. Led display images

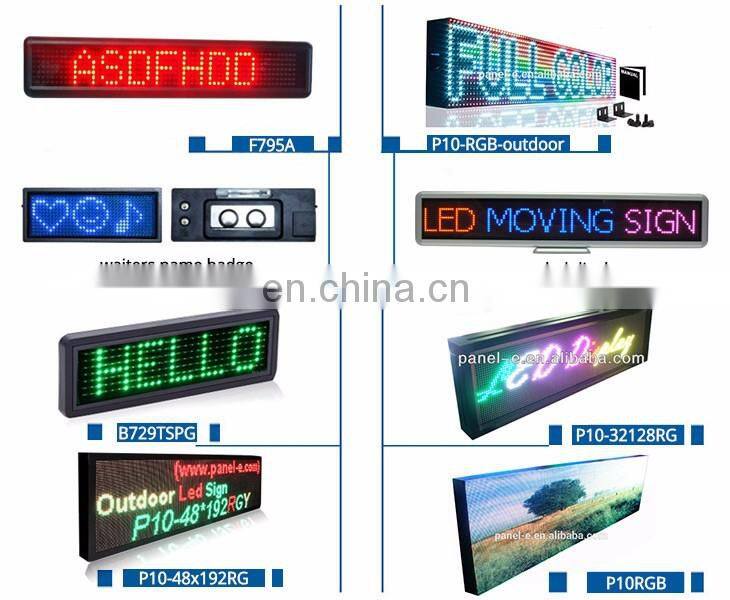

Click on the image below to see more products.
Shenzhen Panels Elec.Co.,Ltd.
Established 2006 , is a professional LED display manufacturing company with a 2,000-square-meter factory. It's only 25 minutes away from Shenzhen internation airport.
We are proud to announce that we are a pioneer and front runner in the fields of LED badges, LED mini display and LED moving signs in the world.
Our main products are: LED name badge,LED Desktop sign,LED indoor and outdoor LED moving sign,LED control card etc.
1.We accept DHL, UPS, FEDEX, EMS, TNT, by sea, by air flight and so on. If you like other shipping ways please contact us .
2.We will send goods that in stock within 3 working days, and custom product within 5-15 days according the order quantity.
3.Please note DHL/UPS/FEDEX usually takes about 3-5 days, and EMS/TNT usually takes about 5-8 days, By boat it need 3-45 days (It depends on our sea port on your country)
4.The buyer are responsible for any insurance, problems, damage which caused by shipping service such as accidents, delay, or other issues. Besides the buyer should be responsible for any tax or duty charge by your own country.
Q: Do you accept customize size?
A: Yes, of cause. Just tell us your request, we will do the suitable one to you.
Q: What is the led chip packing?
A:Indoor:SMD 3528/2121/1010; Outdoor:546 oval lamp/346 oval lamp.
Q:Why Choose us?
-We are Alibaba Assessed Gold Supplier
-More professional, best service
-100% QC inspection before shippment.
-We are direct factory manufacturer for led display, so quick delivery is no problem.
