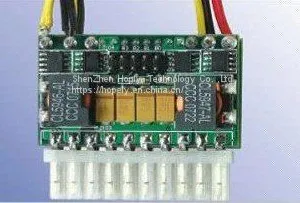

HL120D-7600 120w Output.6-30V Wide Input Intelligent Automotive Car PC Power Supply,Carpc Carputer in Vehicle Mini Pico-
US$ 45 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HOPLY
Place of Origin:
China
Model Number:
HL120D-1200
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days
Related Products
-
90W PicoPSU Mini-itx Industrial Embeded Car Pc DC-DC Power Suppy Converter , Mini-itx PSU , ITX PsusUS$ 19.95 - 25MOQ: 1 Piece -
75W Output 12V DC-DC Pico Power Supply for MINI-ITX Mainboard , IPC Embeded Mini-itx Pico PSU , ITX PsusUS$ 18.95 - 25MOQ: 1 Piece
-
46W DC/DC Power Supply For Mini Car PC , Car Computer Power Supply , Carputer Psu , Mini-itx Embeded PC PSUsUS$ 40 - 45MOQ: 1 Piece
-
Pico Power Supplies , HL120D-7600 , Embedded Mini-itx Industrial IPC Car PC Inline Power Supply Mini Itx Psus ITXPSU ITXUS$ 58 - 62MOQ: 1 Case
-
HL120D-7600 120w Output.6-30V Wide Input Intelligent Automotive Car PC Power Supply,Carpc Carputer in Vehicle Mini Pico-NegotiableMOQ: 1 Case
Brand Name
HOPLY
Place of Origin
China
Model Number
HL120D-1200
Interface Type
20Pin
Products Status
Stock
Application
Desktop, Server
Rating Power
< 150W

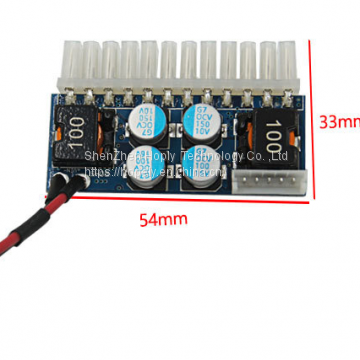

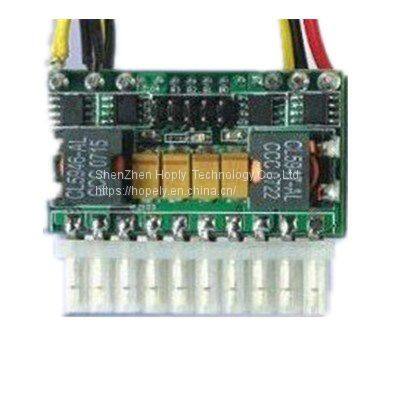

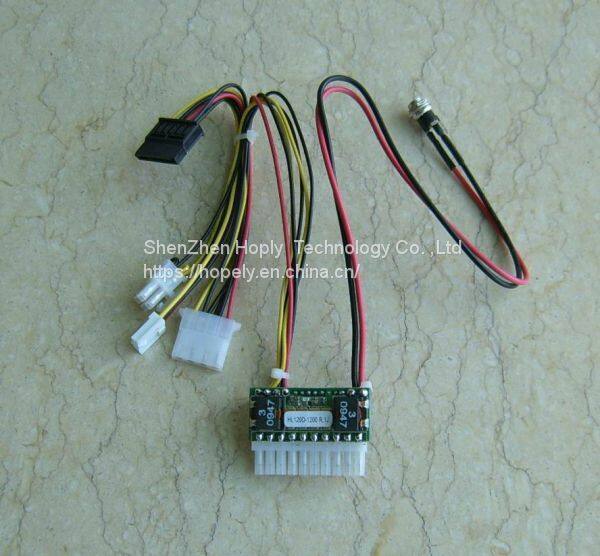

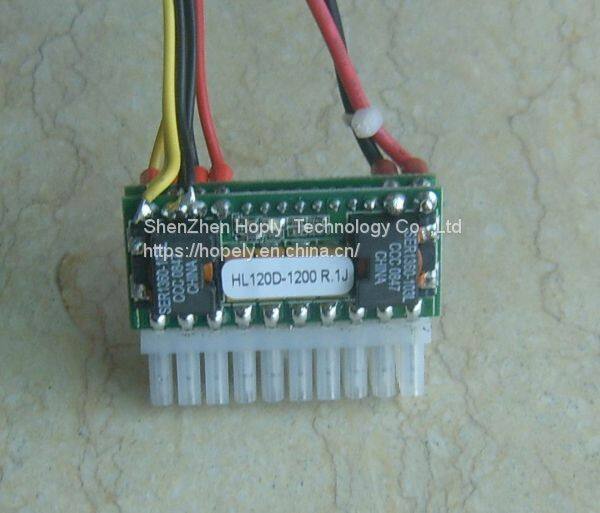

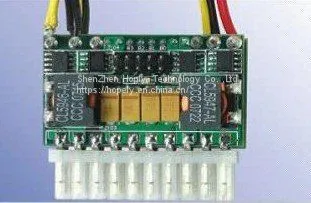

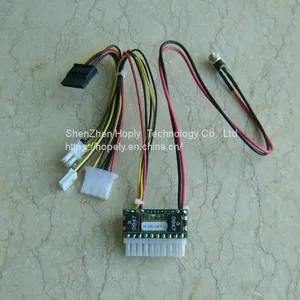

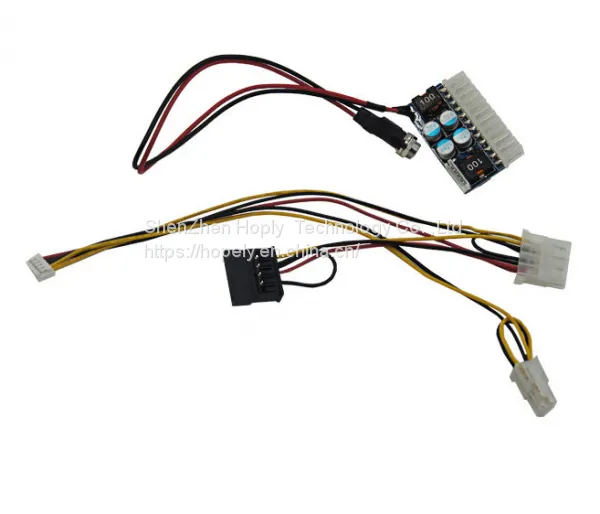

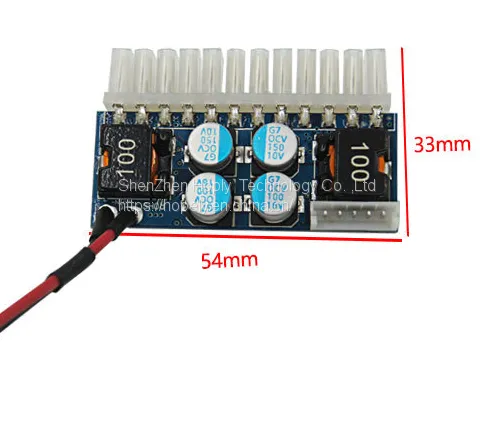

Pico-ITX IPC Car PC Power Supply HL120D-7600
6-30V DC input ,120W ATX output
3 Technique Requirement3.1 Input Characteristic
3.2 Output Characteristic3.2.1 Output Voltage Regulation
3.3 EMC Requirement
3.4 Protection Function
6-30V DC input ,120W ATX output
1 Function Description
DC/DC ATX power supply for automobile application, 6-30VDC input, +5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.
2 Operation EnvironmentItem |
Unit |
Minimum |
Typical |
Maximum |
Test Conditon |
Temperature |
? |
-20 |
50 |
||
RH |
%RH |
40 |
90 |
No Condensation |
Item |
Unit |
Minimum |
Typical |
Maximum |
Test Conditon |
DC INPUT |
Vdc |
6 |
12/24 |
30 |
|
Input Current |
A |
5/10 |
|||
Output |
Min. Load |
Max. Load |
Peak Load |
Output Voltage range |
Ripple(pk-pk)(rated load?20MHz limit)* |
+5V |
0.5A |
6A |
8A |
4.75~5.25V |
50mV |
+12V |
0.3A |
5A |
11.40~12.60V |
120mV |
|
+3.3V |
0.5A |
6A |
8A |
3.14~3.55V |
50mV |
-12V |
0A |
0.05A |
-11.0~-13.2V |
120mV |
|
+5VSB |
0.1A |
1A |
4.75~5.25V |
100mV |
*: Need 0.5m/s air flow fan cooling .
3.2.2 Others Output CharacteristicsItem |
Unit |
Minimum |
Typical |
Maximum |
Test Conditon |
Output Power |
W |
120 |
DC output power |
||
Efficiency |
% |
90 |
Rated load |
||
Turn on Overshoot |
% |
10 |
|||
Rise Time |
ms |
20 |
Output voltage up from 0% to 95%,rated load |
||
Hold up Time |
ms |
2 |
Rated load |
Item |
Request |
Standard |
Judgement Grade |
Conducted interference |
CLASS B, 3dB margin |
EN55022 |
Ensure system pass the CLASS B and have 3dB margin |
Radiation interference |
CLASS B, 3dB margin |
EN55022 |
Ensure system pass the CLASS B and have 3dB margin |
Item |
Unit |
Yes/No |
Minimum |
Typical |
Maximum |
Recovery Characteristic |
Input invertion protection |
Yes |
|||||
+5V OVP |
V |
Yes |
5.8 |
6.8 |
Latched, need to re-apply DC input to recovery |
|
+12V OVP |
V |
Yes |
13.2 |
15.6 |
Latched |
|
+3.3V OVP |
V |
Yes |
3.9 |
4.3 |
Latched |
|
Short CircuitProtection(+5V,+12V,+3.3V) |
Yes |
Lached |
