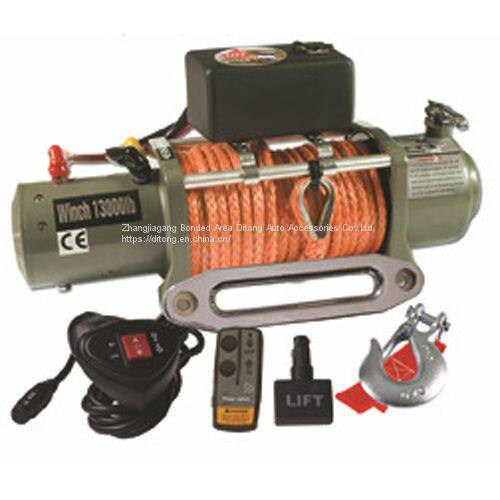

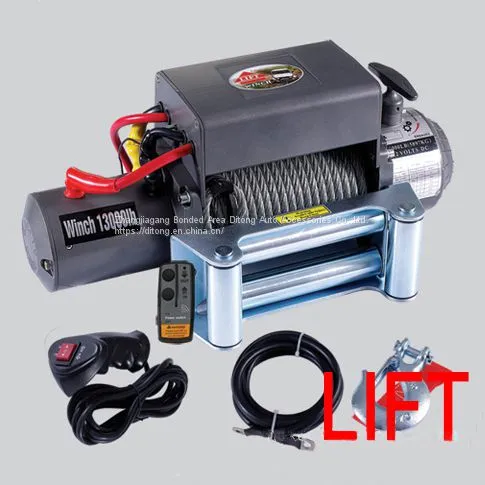

4x4 13000lbs Off-road Vehicle Electric Winches

4x4 13000lbs Off-road Vehicle Electric Winches thumbnail-1
4x4 13000lbs Off-road Vehicle Electric Winches thumbnail-2
4x4 13000lbs Off-road Vehicle Electric Winches thumbnail-3
4x4 13000lbs Off-road Vehicle Electric Winches thumbnail-4
4x4 13000lbs Off-road Vehicle Electric Winches photo-1
4x4 13000lbs Off-road Vehicle Electric Winches photo-2
4x4 13000lbs Off-road Vehicle Electric Winches photo-3
4x4 13000lbs Off-road Vehicle Electric Winches photo-4
US$ 180 - 210 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
Ditong
Place of Origin:
China
Model Number:
EW13000
Contact Supplier Request Quote Chat Now
Zhangjiagang Bonded Area Ditong Auto Accessories Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
35 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Ditong
Place of Origin China
Model Number EW13000

4x4 12000lbs wireless heavy duty electric winches 12v/24v

Model:EW12000

Product feature:

1. Free Spooling Clutch

2. Automatic Breaking Action

3. Specially designed differential planetary gearing for heavy duty

4. Solenoid control box supplied

Certificate:

CE Certification

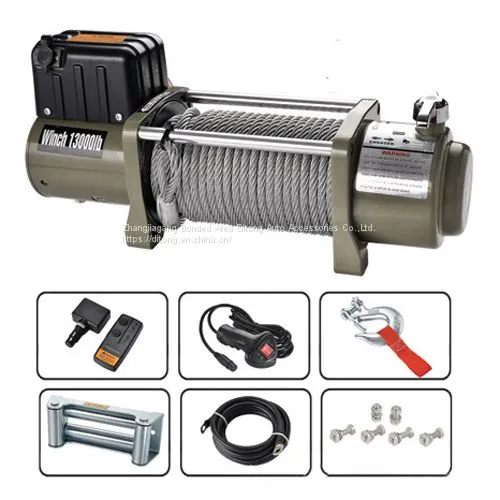

Recommended Optional Accessories

1.Control Box

2.Wired Remote:with 1.83m Cable

3.Roller fairhead

4.Clutch:Slinging ring gear

5.Wire Rope:8.3mmx28m

Specification:

Rated Line Pull

12000lb(4536kg),single line

Motor

4.8kw/6.6ph 12v/4.0hp/3.0kw 24vSeries wound motor

Control

Wired remote switch,12’(3.7)cable

Gear Train

3-stage planetary Gear

Gear Reduction Ratio

187.2:1/218.4:1

Clutch

Sliding Ring Gear

Braking Action

Automatic in the drum

Drum size(Dia.xL)

Ф64mmx223.5mm)

Cable(Dia.xL)

94ft of 3/8”diameter(28m of 9.1mm diameter)

Main body

sealed

Effected Protection

5600kg-5750kg

Fairlead

4-way roller fairlead

Battery

Recommended :minimum 650CCA

Battery Leads

2 gauge,72”(183mm)

Coating

Dark gray power coat

Overall Dimension(LxWxH)

21.1”x6.3”x8.6”(537mmx160mmx218mm)

Mounting Bolt

254mmx114.3mm

Weight

N.W/G.W:38kg/40kg

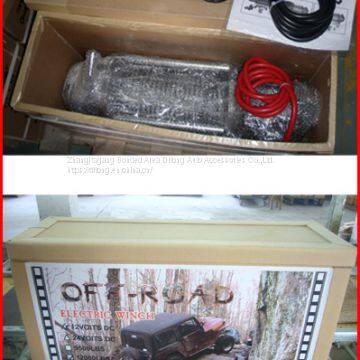

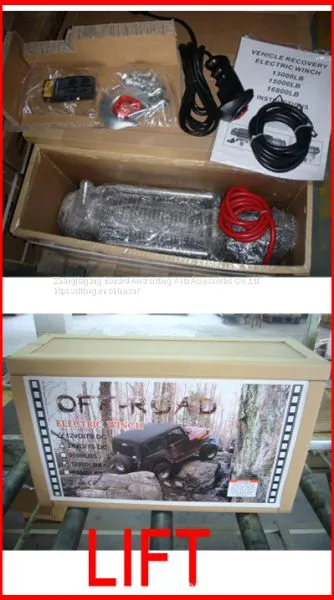

Packing Size

57x19x34.5cm,1pc/ctn

12000lbs line speed and AMP Draw(First Layer) 12v

Line pull

lbs

0

4000

6000

8000

10000

12000

12300

kg

0

1814

2720

3630

4540

5440

5590

Line speed

Ft/min

3.3

16.8

12.8

10.1

8.8

7.6

0

M/min

10.3

5.1

3.9

3.1

2.7

2.3

0

Motor

AMPS

85

158

231

302

371

450

200

12000lbs line speed and AMP Draw(First Layer) 24v

Line pull

lbs

0

4000

6000

8000

10000

12000

12300

kg

0

1814

2720

3630

4540

5440

5590

Line speed

Ft/min

3.5

18.5

14.4

11.5

10.0

8.9

0

M/min

10.8

5.6

4.4

3.5

3.1

2.7

0

Motor

AMPS

50

130

170

210

240

280

100


12000LBS line pull and cable capacity


Layer of Cable

1

2

3

4

Rated pull per layer

lbs

12000

9210

8030

6894

kgs

5440

4170

3640

3125

Cumulative cable capacity

ft

17

41

71

82

m

4.8

12

21

25


Product Tags: Jeep Electric Winches , Electric winches , Vehicle electric winches
