4x4 10000lbs Off-road Vehicle Electric Winches

Name: 4x4 10000lbs Off-road Vehicle Electric Winches
Brand: Ditong
SKU: 158514726
Availability: InStock

US$ 180 - 210 MOQ: 20 Pieces

Key Specifications

Brand Name:

Ditong

Place of Origin:

China

Model Number:

EW10000

Zhangjiagang Bonded Area Ditong Auto Accessories Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

35 days

Brand Name Ditong

Place of Origin China

Model Number EW10000

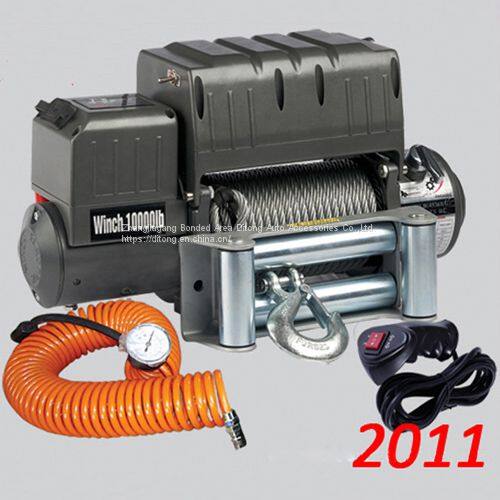

4x4 10000lbs off-road vehicle electric winches

Model:EW10000

Product feature:

1. Free Spooling Clutch

2. Automatic Breaking Action

3. Specially designed differential planetary gearing for heavy duty

4. Solenoid control box supplied

Certificate:

CE Certification

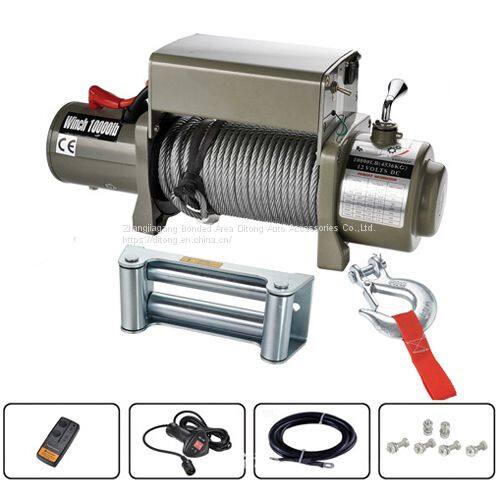

Recommended Optional Accessories

1.Control Box

2.Wired Remote:with 1.83m Cable

3.Roller fairhead

4.Clutch:Slinging ring gear

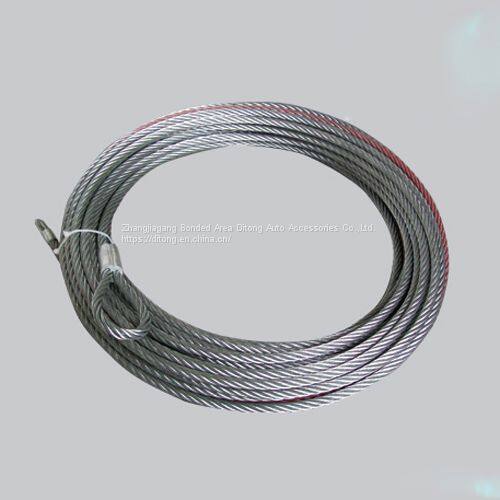

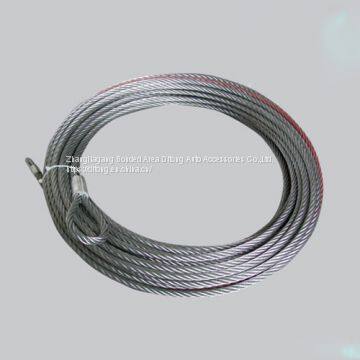

5.Wire Rope:8.3mmx28m

Specification:

Rated Line Pull	10000lb(4536kg),single line
Motor	4.0kw/5.5ph 12v/3.6hp/2.68kw 24vSeries wound motor
Control	Wired remote switch,12’(3.7)cable
Gear Train	3-stage planetary Gear
Gear Reduction Ratio	148.2:1
Clutch	Sliding Ring Gear
Braking Action	Automatic drum brake
Drum size(Dia.xL)	Ф64mmx223.5mm)
Cable(Dia.xL)	Ф21/64”x94’(Ф8.3mmx28m)
Remote Control	Included
Fairhead	4-way rolle fairlead
Battery	Recommended :minimum 650CCA
Battery Cable	2 gauge,72”(183mm)
Coating	Dark gray power coat
Overall Dimension(LxWxH)	21.1”x6.3”x8.6”(537mmx160mmx218mm)
Mounting Bolt	254mmx114.3mm
Weight	N.W/G.W:36kg/38kg
Packing Size	57x19x34.5cm,1pc/ctn
