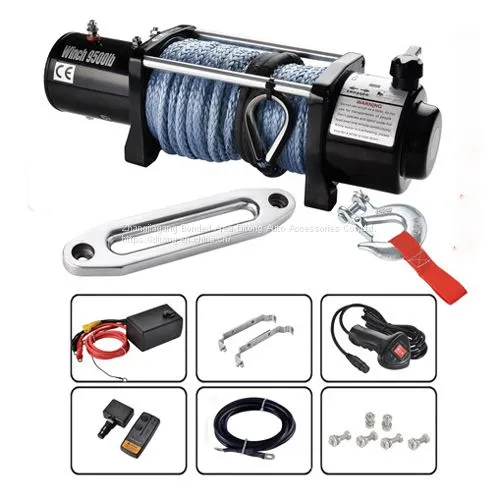

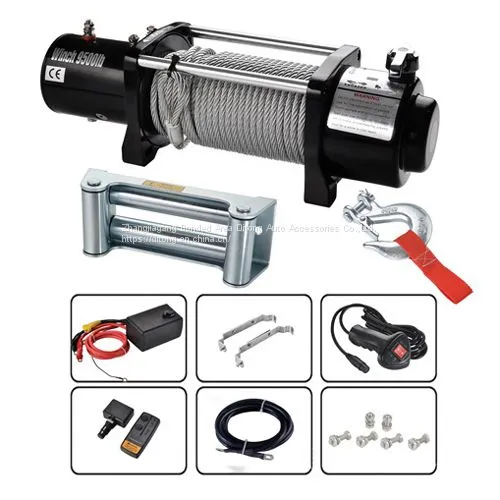

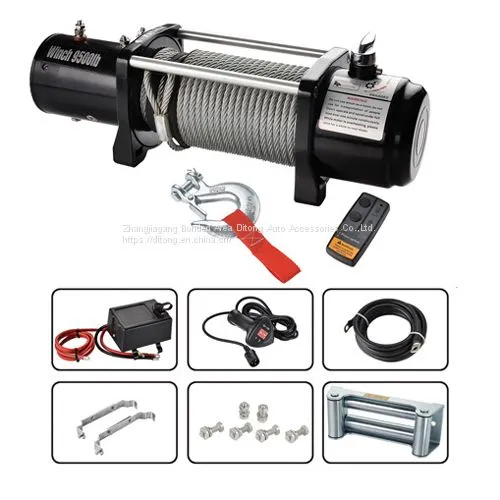

4x4 9500lbs Wireless Control Jeep Electric Winches 12V

Name: 4x4 9500lbs Wireless Control Jeep Electric Winches 12V
Brand: Ditong
SKU: 158514724
Availability: InStock

US$ 80 - 160 MOQ: 20 Pieces

Key Specifications

Brand Name:

Ditong

Place of Origin:

China

Model Number:

EW9500

Zhangjiagang Bonded Area Ditong Auto Accessories Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

35 days

Brand Name Ditong

Place of Origin China

Model Number EW9500

4x4 9500lbs wireless control Jeep Electric Winches 12V

Model:EW9500

Product feature:

1. Free Spooling Clutch

2. Automatic Breaking Action

3. Specially designed differential planetary gearing for heavy duty

4. Solenoid control box supplied

Certificate:

CE Certification

Recommended Optional Accessories

1.Mounting Rack

2.Wireless Remote Control

3.Nylon Rope

4.Aluminum Fairlead for nylon rope

Specification:

Rated Line Pull	9500lb(4300kg),single line
Motor	4.0kw/5.5ph(12v),Series wound motor
Control	Wired remote switch,12’(3.7)cable
Gear Train	3-stage planetary Gear
Gear Reduction Ratio	195.4:1
Clutch	Sliding Ring Gear
Braking Action	Two way,Automatic drum brake
Drum size(Dia.xL)	Ф2.5”x8.8”(Ф63.5mmx224mm)
Cable(Dia.xL)	Ф21/64”x94’(Ф8.3mmx28m)
Wired remote switch	1.83m cable(wireless remote controller is optional)
Battery	Recommended :minimum 650CCA
Battery Cable	2 gauge,72”(183mm)
Coating	Black power coat
Overall Dimension(LxWxH)	21.1”x6.3”x8.6”(537mmx160mmx218mm)
Mounting Bolt	254mmx114.3mm
Weight	N.W/G.W:36kg/38kg
Packing Size	57x19x34.5cm,1pc/ctn
