Help CenterEZO-pH EZO pH Circuit
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Atlas Scientific LLC
Place of Origin:
United States
Model Number:
EZO-pH
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
WQ-COND Rugged Water Conductivity SensorNegotiableMOQ: 1 Piece -
WQ600 Rugged Oxygen Reduction Potential (ORP) SensorNegotiableMOQ: 1 Piece
-
TCS2000 Toroidal Conductivity SensorsNegotiableMOQ: 1 Piece
-
ENV-40-ORP ORP ProbeNegotiableMOQ: 1 Piece
-
ENV-50-ORP Industrial ORP ProbeNegotiableMOQ: 1 Piece
Brand Name
Atlas Scientific LLC
Place of Origin
United States
Model Number
EZO-pH
Usage
Other, Water Quality Sensor

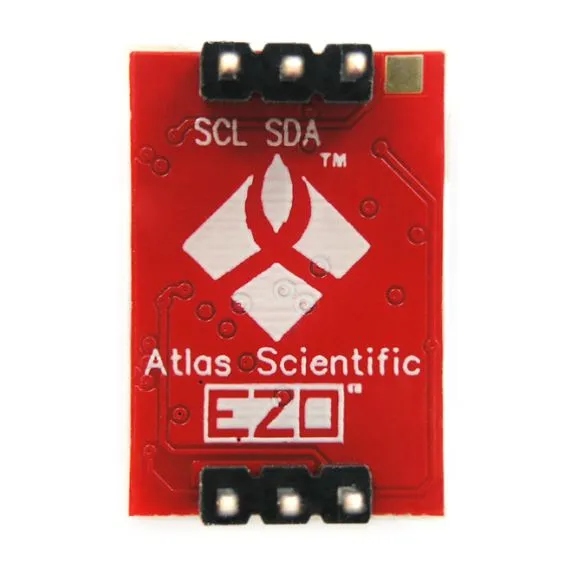

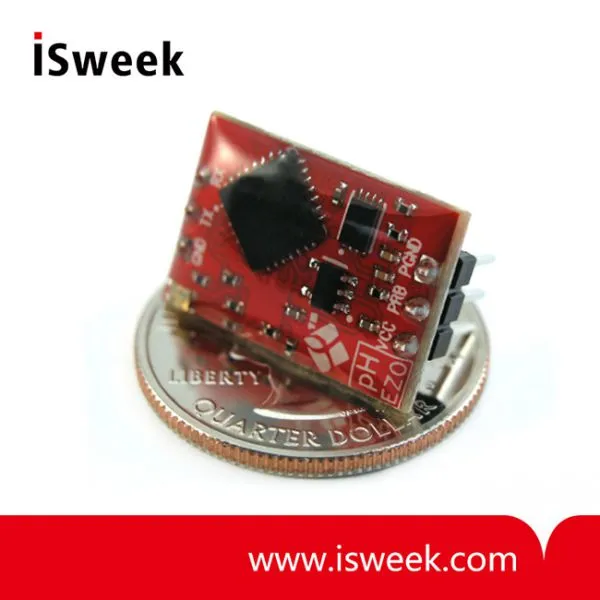

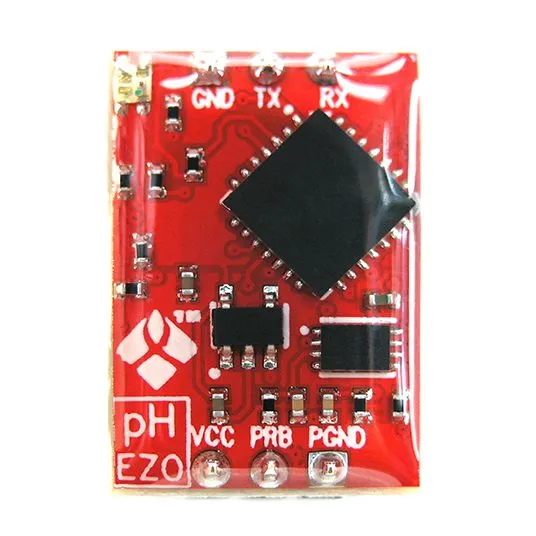

EZO pH Circuit
EZO-pH EZO pH Circuit Operating principle
A pH (potential of Hydrogen) probe measures the hydrogen ion activity in a liquid. At the tip of a pH probe is a glass membrane. This glass membrane permits hydrogen ions from the liquid being measured to defuse into the outer layer of the glass, while larger ions remain in the solution. The difference in the concentration of hydrogen ions (outside the probe vs. inside the probe) creates a VERY small current. This current is proportional to the concentration of hydrogen ions in the liquid being measured.
EZO-pH EZO pH Circuit Dimensions
EZO-pH EZO pH Circuit Power consumption
| LED |
MAX |
STANDBY |
SLEEP |
|
| 5V |
ON |
18.3 mA |
16 mA |
1.16 mA |
| OFF |
13.8 mA |
13.8 mA |
||
| 3.3V |
ON |
14.5 mA |
13.9 mA |
0.995 mA |
| OFF |
13.3 mA |
13.3 mA |
EZO-pH EZO pH Circuit Absolute max ratings
| Parameter |
MIN |
YP |
MAX |
| Storage temperature (EZO™ pH) | -65 °C |
125 °C |
|
| Operational temperature (EZO™ pH) |
-40 °C |
25 °C |
85 °C |
| VCC |
3.3V |
5V |
5.5V |
EZO-pH EZO pH Circuit Specifications
| Reads |
pH |
| Range |
0.001 - 14.000 |
| Accuracy |
+/- 0.002 |
| Max rate |
1 reading per sec |
| Supported probes |
Any type & brand |
| Calibration |
1, 2, 3 point |
| Temp compensation |
Yes |
| Data protocol |
UART & I2C |
| Default I2C address |
99 (0x63) |
| Operating voltage |
3.3V - 5V |
| Data format |
ASCII |
| Circuit dimensions |
13.97mm x 20.16mm (0.55" x 0.79") |
| Weight |
1.76 grams |
