WQ600 ORP Sensor Description

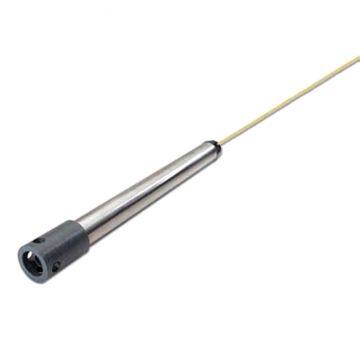

WQ600 (Redox) ORP Sensor is a rugged and reliable ORP/Redox measuring device. The sensor is molded to 25' of marine grade cable, with lengths up to 500' available upon request. The WQ600's output is 4-20 mA with a three wire configuration. The unit's electronics are completely encapsulated in marine grade epoxy within a stainless steel housing.
WQ600 ORP Sensor Features
• Continuous ORP monitoring
• Fully encapsulated electronics
• 4-20 mA output
• Marine grade cable with strain relief
• Stainless steel housing
WQ600 ORP Sensor Applications
Ideal for stream and lake monitoring, aquaculture studies, baseline analyses, mitigation monitoring, and other environmental applications.
WQ600 ORP Sensor Specifications
| Output | 4-20 mA |
| Range | -500 to +500 mV |
| Accuracy | 2% full scale |
| Maximum Pressure | 40 psi |
| Operating Voltage | 10 to 36 VDC |
| Current Draw | 0.2 mA plus sensor output |
| Warm-up Time | 3 seconds minimum |
| Operating Temperature | -40° to +55°C |
| Cable Length | 25' (up to 500' from factory) |
| Size of Probe | Open Water: 1" dia. x 10½" long (2.5cm dia. x 26.7cm long) Online: 2.5" dia. x 15.5" long (6.3cm dia. x 39.4cm) |
| Weight | Open Water: 8 oz (227 g) Online: 22 oz (623 g) |
WQ600 ORP Sensor Ordering & Options
| Order No. | Description |
| WQ600 | ORP Sensor for Open Water (includes 25' cable) |
| WQ600-O | Online ORP Sensor (with 1-1/4" NPT thread and 25' cable) |
| WQEXC | Extra Sensor Cable, per foot (up to 500') |
