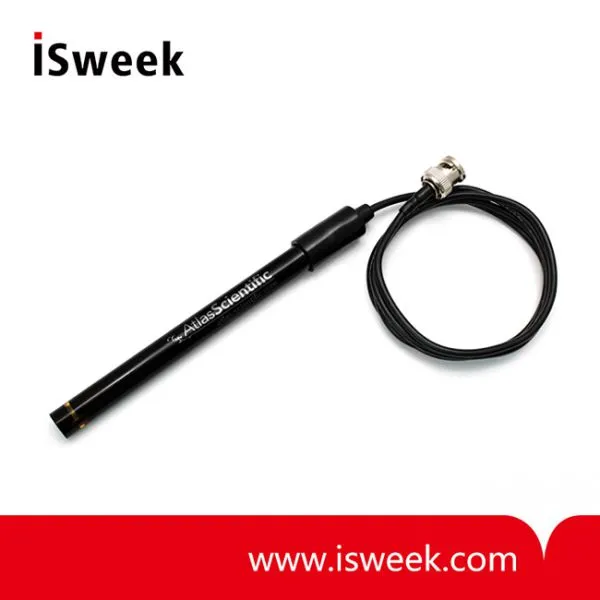

Help CenterENV-40-EC-K1.0 Conductivity Probe K 1.0
Related Products
-
KAPTA 2000-AC2 In-line Chlorine SensorsNegotiableMOQ: 1 Piece -
ENV-40-DO Dissolved Oxygen ProbeNegotiableMOQ: 1 Piece
-
HYDRA NH4-N HYDRA Ammonium AnalyzerNegotiableMOQ: 1 Piece
-
OPTCO2 Membrane Covered Optical CO2 Sensor for MonitoringUS$ 0.1 - 1MOQ: 1 Piece
-
PH1000/pH2000/pH3000 Series Plastic Laboratory pH ElectrodesUS$ 0.001 - 0.01MOQ: 1 Piece
ENV-40-EC-K1.0 Conductivity Probe K 1.0 Operating principle
An E.C. (electrical conductivity) probe measures the electrical conductivity in a solution. It is commonly used in hydroponics, aquaculture and freshwater systems to monitor the amount of nutrients, salts or impurities in the water.
Inside the conductivity probe, two electrodes are positioned opposite from each other, an AC voltage is applied to the electrodes causing cations to move to the negatively charged electrode, while the anions move to the positively electrode. The more free electrolyte the liquid contains, the higher the electrical conductivity.
This Conductivity probe can be fully submerged in fresh or salt water, up to the BNC connector indefinitely.
ENV-40-EC-K1.0 Conductivity Probe K 1.0 Typical Applications
• Standard Lab use
• Field use
• Aquarium
• Hydroponics
• Food Safe
• Fish keeping
• Mixed aqueous/organic
• Samples containing Heavy metals
• Soil Samples
• Strong reducing agents
ENV-40-EC-K1.0 Conductivity Probe K 1.0 Specifications
| Reads |
Conductivity |
| Range |
5 - 200,000 μS/cm |
| Response time |
90% in 1s |
| Max pressure |
3,447 kPa (500 PSI) |
| Max depth |
343 meters (1,125 ft) |
| Temperature range |
1 - 110 °C |
| Cable length |
1 meter |
| Internal temperature sensor |
No |
| Time before recalibration |
~10 years |
| Life expectancy |
~10 years |
| Maintenance |
N/A |
| Weight |
51 grams |
| Measuring Surface |
Graphite |
| Dimensions |
12mm x 150mm (0.47" x 6") |
| BNC connector |
Yes |
| Sterilization |
Chemical only |
