Linear Vibrating Screen and Linear Vibrating Sieve Machine Ra520

FOB Price

USD $4299 - $8299 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shanghai
Payment Terms:T/T L/C D/P D/A
Delivery Detail:10 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	RUNNEST	Place of Origin:	China	Model Number:	RA-520
Type:	vibrating motor	Use:	screen fliter	Certification:	CE/ISO/SGS
After-sales Service Provided:	Overseas third-party support available	Condition:	New

Product Description

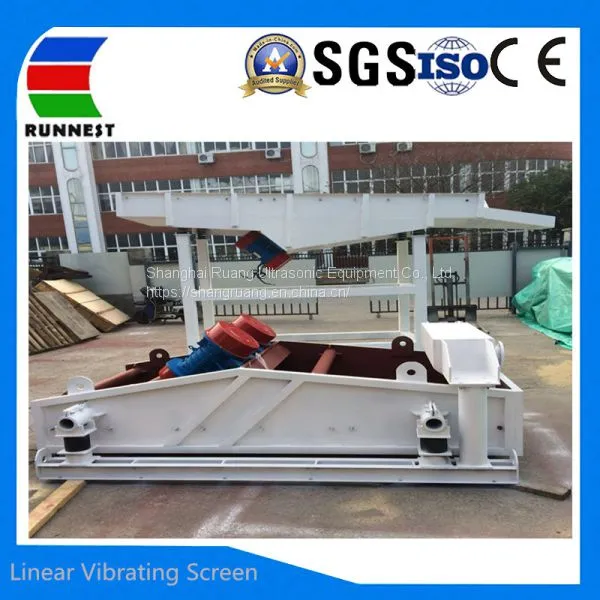

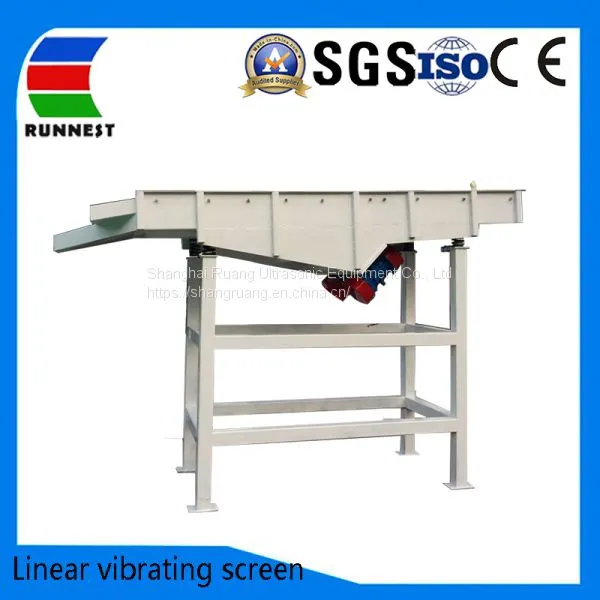

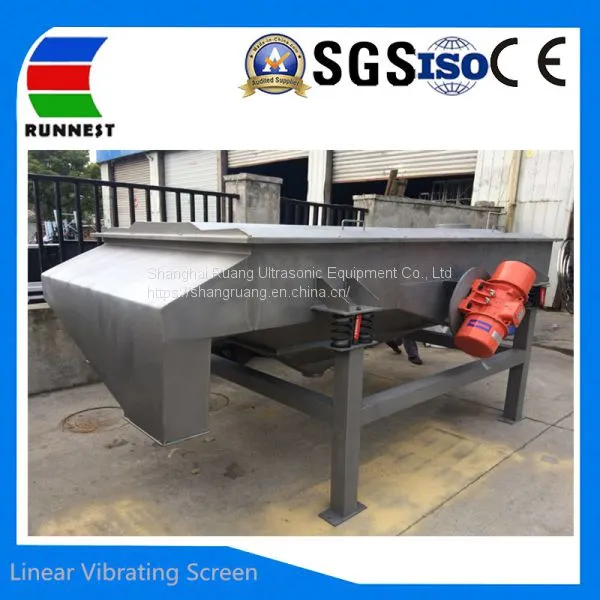

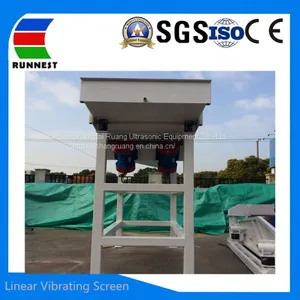

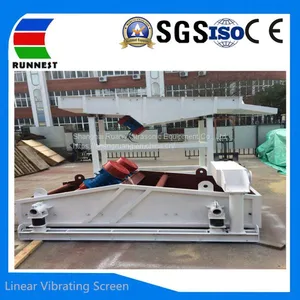

Linear Vibrating Screen Equipment

Product introduction :

The linear vibrating screen is composed of screen box, screen frame, vibration motor, shock absorber and machine base. The two same vibration motors, as the vibration providers, are fiexed on the top of screen box. They rotate synchronically in reverse directions.
The eccentric blocks driven by the motors could provide centrifugal force, whose copported by the shock absorbers can move linearly. And the material on it moves forward straightly when tossed upward. When falls into the screen frame again, the material will move forward quickly and penetrate the screen in a fluffy state. Desirable screening performance can be achieved simply by choosing suitable screens for the linear vibrating screen.

Specifications:

Size can be modified as your requirements, your can find the standard size as follows:

Model	Layer	Power (KW)*2	Screening size (mm)	Mesh	Frequency (time /min)	Material particle size
RA-520	1-6	0.37-0.75	500*2000	2-600	960	0.74-10
RA-525	1-6	0.37-0.75	500*2500	2-600	960	0.74-10
RA-1020	1-6	0.37-0.75	1000*2000	2-600	960	0.74-10
RA-1025	1-6	0.37-1.1	1000*2500	2-600	960	0.74-10
RA-1030	1-6	1.1-1.5	1000*3000	2-600	960	0.74-10
RA-1040	1-6	1.1-1.5	1000*4000	2-600	960	0.74-10
RA-1235	1-6	1.1-2.2	1200*3500	2-600	960	0.74-10
RA-1250	1-6	1.1-2.2	1200*5000	2-600	960	0.74-10
RA-1535	1-6	1.1-2.2	1500*3500	2-600	960	0.74-10
RA-1560	1-6	3.7-5.5	1500*6000	2-600	960	0.74-10

Main features :

1.can be equipped with single or multi-layer mesh ,

2.used purpose of rating ,dehydration, remove impurity and inspection.

3.low consumption ,high output ,simple structure,easy maintenance,

4.fully closed structure,no dust overflow scattered ,automatic row material.

After-sale service:

Service:.

1. Special design offered.

2.Buyer label paste offered

3.Sample testing support.

4.View our Factory

5.One year warranty

6. Three years extended warranty.

7. 24 hours inquiry and consulting support.

8. Training how to instal and use the machine.

Required inquiry information:
Please provide the follow information for a suitable machine:

1. material name, the density, water content(%).

2. the necessary capacity you required(per hour)

3. Machine material. Pls choose one: a. SUS 304 or SUS316, b. All carbon steel 235 A,c. The contacting part is SUS304, the other parts is carbon steel.

4. the dimension of the machine can be designed for you.

5. Additional parts ,like the mobil wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained

6.All of your information (email, Tel, Fax, etc) will be not published without permission.
