Product Description
RA Series Vibrating Sifter is one type high precision powder sieving machine.
By means of the upper and lower hammer mounted on the vibration motor, the sifter can turn the rotary motion force of the motor into three-dimensional motion (horizontal, vertical, inclined). Then this motion will be delivered to the screen surface. Thus, the sifter realizes the purpose of sieving.
Application
The sieve shaker machine is suitable for screening powders, particles and liquids.
Widely used in fertilizer, medicine and powder coatings, paints, cosmetics, oils, resin, ceramic slurry, clay mud, lime, , juices, beverages, sugar, salt, monosodium glutamate, spices , sewage, wastewater treatment processes milk, starch, wheat flour, rice flour, carbon, graphite, manganese powder, lithium carbonate, a co-solvent, fire extinguishing agents and environmental protection industries in the screening, filtering
Features of sieve screen:
1. High efficiency in screen separation and filtering precision ,
2. Suitable for all kinds of powders ,particles and liquids,
3. No block of screen nets,
4. Fast and flexible in change of screen
5. Environment friendly, the dustproof lid prevent powder flow efficiently
6. The feeding-out direction can be selected freely
| Model | RA 500 | RA 600 | RA 800 | RA 1000 | RA 1200 | RA 1500 | RARA 1800 | RA 2000 |
| Nominal Diameter(mm) | 500 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 |
| Sieve Diameter(mm) | 430 | 550 | 760 | 950 | 1150 | 1430 | 1700 | 1910 |

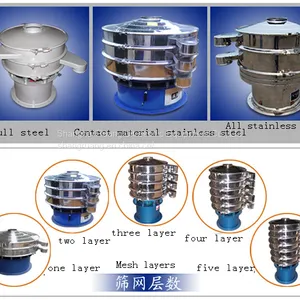

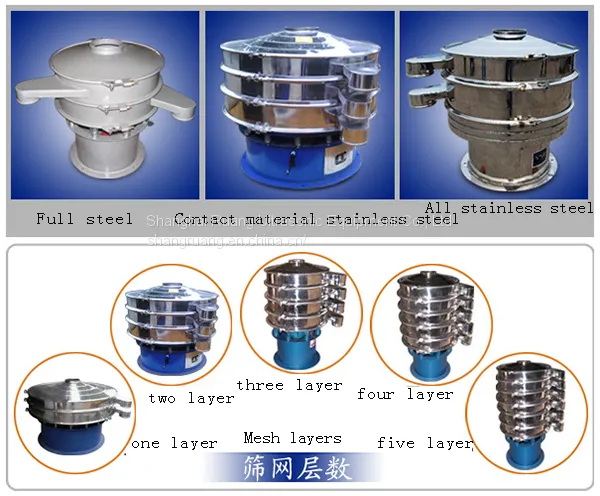

| Layer | 1-6 | |||||||
| Sieve Spec(mesh/inch) | 2-800 | |||||||
| frequency(rpm) | 1440 | |||||||
| power(kw) | 0.25 | 0.55 | 0.75 | 0.75-1.1 | 1.1-1.5 | 1.5-2.2 | 3.0 | 4.0 |

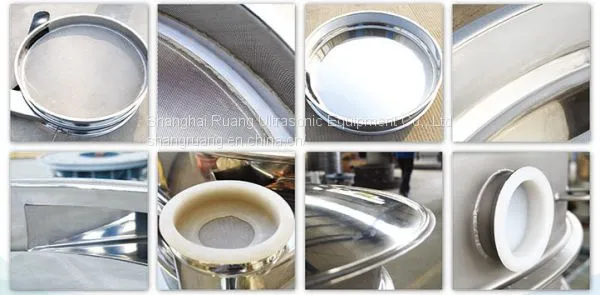

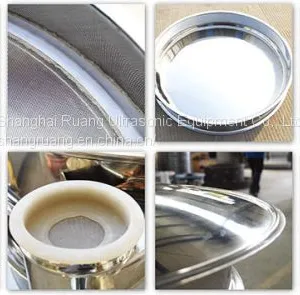

Company pictures:
Applicable industries:
| Chemical industries: resin, paint, industrial chemicals, cosmetics, lacquer, Chinese medicine powders, etc. Food industries: sugar powders, starch, salt, rice flour, milk powders, soymilk, egg powders, soy, fruit juice, etc. Metal, metallurgy: aluminum powders, lead powders, copper powders, minerals, alloy powders, electrode powders, manganese dioxide, electrolytic copper powders, electromagnetic materials, grinding powders, fireproof materials, kaolin, lime, aluminum oxide, coarse whiting and silica sand. Etc. Pollution treatment: waste oil, waste water, dying waste water, auxiliaries, activated carbon, etc. Medicine: Western and Chinese medicine powders, western and Chinese medicine liquids, industrial chemicals, industrial chemical liquids, pharmaceutical intermediates, cellulose, etc. Ceramics: slurry, glaze, ceramic materials. |
