Agricultural Large Capacity Linear Vibrating Sieve Used for Dehydrator
US$ 1500 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
RUNNEST
Place of Origin:
China
Model Number:
RA-520
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
10 days
Related Products
-
450 Type Filter Sieve Machine Used With Screen PowderUS$ 500 - 1900MOQ: 1 Set -
220V Electric Vibrating Screen Industrial Filter Sieve Machine With #20,#40,#100 Mesh ScreensUS$ 500 - 5299MOQ: 1 Set
-
Laboratory Vibration Screen Testing Sieve MachineUS$ 1088 - 3000MOQ: 1 Set
-
Professional Granule Gyratory Shaker Vibrating Screen Machine for Salt/SugarUS$ 500 - 2000MOQ: 1 Set
-
Ss304 Vibrating Grading Test Sieves With Europe Tyler ASTM Standard (SY200)US$ 1088 - 3000MOQ: 1 Set
Brand Name
RUNNEST
Place of Origin
China
Model Number
RA-520
Use
Cultivators

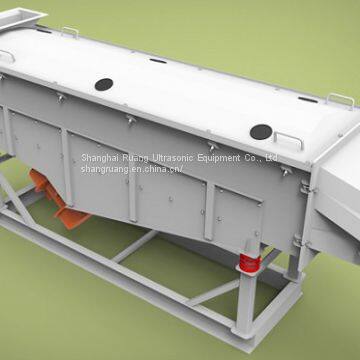

Large Capacity Linear Vibrating Sieve Machine
Model Number: RA-520-1
Brand Name: RUNNEST
Country of Origin: China (mainland)
Key Specifications/Special Features:
Describe: linear vibrating screen
RA linear vibrating screen use excellent vibrating motor as power source, that the materials can be thrown up on the sieve and forward to make a straight movement
It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration
Features:
Linear vibrating screen
1. Easy to operate and maintain
2. Low consumption with high yield and low cost
3. Fully enclosed structure, automatic layout, more suitable for pipeline operations
4. Good sealing without dust flying
5. Can be used for single or multi layer
6. Material auto discharge, be able to continuous operation
7. Every part of the screen box used copper plate and section welded together
Working principle
Linear vibrating screen
RA linear vibrating screen uses double vibrating motors to drive, when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction, so its movement track is linear
There is an angle of inclination between the two motor axis relative to the screen deck
Under the influence of the resultant force of exciting force and materials itself weight, materials are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel
Applied in flowing line to achieve automatically operation
Application in details: linear vibrating screen
1. Chemical industry: resin pigment, medicine, grease, paint, palette
2. Organic fertilizer industry
3. Plastics industry
4. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry
5. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice
6). Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation
7). Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide
8). Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder
RA linear vibrating screen use excellent vibrating motor as power source, that the materials can be thrown up on the sieve and forward to make a straight movement
It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration
Features:
Linear vibrating screen
1. Easy to operate and maintain
2. Low consumption with high yield and low cost
3. Fully enclosed structure, automatic layout, more suitable for pipeline operations
4. Good sealing without dust flying
5. Can be used for single or multi layer
6. Material auto discharge, be able to continuous operation
7. Every part of the screen box used copper plate and section welded together
Working principle
Linear vibrating screen
RA linear vibrating screen uses double vibrating motors to drive, when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction, so its movement track is linear
There is an angle of inclination between the two motor axis relative to the screen deck
Under the influence of the resultant force of exciting force and materials itself weight, materials are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel
Applied in flowing line to achieve automatically operation
Application in details: linear vibrating screen
1. Chemical industry: resin pigment, medicine, grease, paint, palette
2. Organic fertilizer industry
3. Plastics industry
4. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry
5. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice
6). Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation
7). Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide
8). Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder

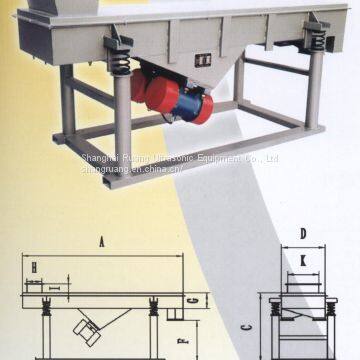

| Mode | RA-520 | RA-525 | RA-1020 | RA-1025 | RA-1030 |
| Dimension(mm) | 500*2000 | 500*2500 | 1000*2000 | 1000*2500 | 1000*3000 |
| Granularity(mm) | 0.74-10 | 0.74-10 | 0.74-10 | 0.74-10 | 0.74-10 |
| Speed(r/min) | 960 | 960 | 960 | 960 | 960 |
| Amplitude | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 |
| Deck | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
| Power(kW) | 2×0.75 | 2×(0.37-0.75) | 2×(0.37-1.1) | 2×(0.37-1.1) | 2×(1.1-1.5) |
Shipping Information:
Lead Time: 7-15days
Dimensions per Unit: 0.5 × 0.2 × 0.5 Meters
Weight per Unit: 100 Kilograms
Units per Export Carton: 1
Export Carton Dimensions L/W/H: 0.6 × 0.3 × 0.5 Meters
Export Carton Weight: 120 Kilograms
