FANN Electrical Stability Tester 208557 Probe with Cable
Shenzhen PMZ Technology Co,Ltd is trading company,was founded in 2008 year, located in Shenzhen, China. Have office in USA, Canada and Hongkong, specialize in import and export products from North America and Europe. Our main business: Petroleum, Oil and Gas, Drilling, Lab, Shale Shaker Screen, Lubricant Sealant, Grease, Protection etc. Fell free contact me info{at}pmztechnology{doc}com, skype Kate Lee_pmztechnology
Ordering Information Part No. 102130986 — Electrical Stability Tester EST includes 205643 — 9 Volt Battery 208452 — Power Cord 208557 — EST Probe with Cable 209067 — Calibration Standard, High Range 209068 — Calibration Standard, Low Range Optional 209066 — Calibration Standard Set

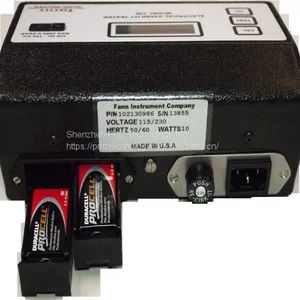

Description The Fann Electrical Stability Tester, Model 23E is a portable instrument that measures the electrical stability (ES) of an oil-based drilling fluid. The EST conforms to the electrical stability test procedure that is described in API Recommended Practice for Field Testing Oil-based Drilling Fluids, API RP 13B-2. The EST includes the meter, electrode probe, 2 batteries, a power cord, 2 calibration standards, and a plastic carrying case. Electrical Stability Tester (EST) Application The drilling fluid’s electrical stability is measured by applying a steadily increasing sinusoidal alternating voltage across a pair of parallel plate electrodes (probe). This probe is submerged in the oil-based drilling fluid. It is recommended that you record several measurements to establish a trend. These measurements will reflect an accurate condition of the drilling fluid and provide a basis for drilling fluid treatments. Features and Benefits • Portable, easy to use in the field • Powered by AC or batteries • Self-calibration feature for regularly checking instrument’s internal calibration • Status messages on backlit digital LCD to guide and simplify operations • Low battery warning message (battery life of approximately 250 tests) • Automatic shut off after 3 minutes idle timeSpecifications Operating Temperature Range 32oF to 122oF (0oC to 50oC) Accuracy ± 2% of Expected Reading Output Frequency 340 ± 2 Hz Output Wave Form Sinusoidal,
