Barcol Impressor HBa-1

Barcol Impressor HBa-1 thumbnail-1
Barcol Impressor HBa-1 thumbnail-2
Barcol Impressor HBa-1 photo-1
Barcol Impressor HBa-1 photo-2
US$ 550 - 780 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Amittari
Place of Origin:
China
Model Number:
HBa-1
Contact Supplier Request Quote Chat Now
Guangzhou Amittari Instruments Co., LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guang zhou
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Amittari
Place of Origin China
Model Number HBa-1
Detail

Product Description

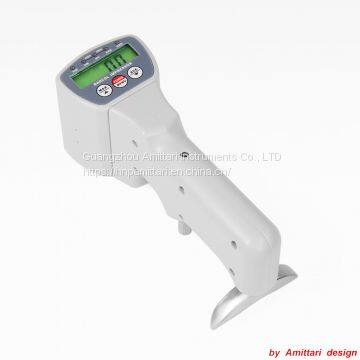

HBa-1, a digital indentation hardness tester, is the latest design and development of our company. It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting. It is with good stability, convenient calibration, and high accuracy of detection. It is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry. The relevant standard is ASTM B648-00, ASTM HD2583-07, and GB / T 3854-2005.


Product Features

* Small in size, portable. Single hand operation, easy to use. Can  be used in any occasion as long as the hand can reach.
* Wide test range, can test from very soft pure aluminum to a  particularly hard aluminum alloy. effective test range equivalent  to the Brinell Hardness of 25~150HB.
* No need to  be supported. Just test on one side of the sample  with the hardness tester, no need to be supported. It is suitable  for the test of large and extra thick workpiece.
* With the maximum hold function, recording the maximum  hardness value during measurements.
* Can be used for measuring Barcol Hardness, other hardness  value can be calculated out by the experimental curve. Such as  Brinell Hardness (HB), Vickers Hardness (HV), Webster  Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).


Product Parameters

Parameters
 Barcol Hardness (Hba), other hardness value can be calculated out by the experimental curve
Measurement Range
 0~100 HBa, equivalent to the Brinell hardness of 25~150HB
Resolution
 0.1 HBa
Indication Error
 81~88 HBa±1 HBa
42~48 Hba±2 HBa
Repeatability Error
 81~88 HBa±1.5 HBa
42~48 HBa±2.5 Hba
Operating Condition
 Temperature: 0~50°C
Humidity:
Size
 170x63x82 mm
Power Supply
 2x1.5vAAA Um-4 Battery
Weight
 390g (Not Including Batteries)


Product Accessories

Standard Accessories
 Main Unit
2 Pins
2 Standard Blocks
Pin Length Calibration Block
Screw Driver
Spanner,
Carrying Case
Operation Manual
Optional Accessories
 Bluetooth data output


Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output


Bluetooth Accessories

Amittari instruments generally can be  supplied  with Bluetooth data  output function ( except  few  instruments ) . As  Bluetooth data output  is included  in optional accessories, not  standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact  with the customer-service worker  if you need Bluetooth data output.
