High Low Temperature Humidity Environmental Circulation Test Chamber
US$ 1000 - 80000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ASLi
Place of Origin:
China
Model Number:
TH
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
30 days
Related Products
-
Factory Sale Constant Temperature and Humidity Test ChamberUS$ 1000 - 500000MOQ: 1 Set -
Desktop Temperature Humidity Test Chamber for Pharmaceutical Industrial Stability TestUS$ 1000 - 500000MOQ: 1 Set
-
Programmable Temperature & Humidity Test Chamber With Inner Door With Operation HoleUS$ 1000 - 800000MOQ: 1 Set
-
Temperature Humidity Climate Testing CabinetsUS$ 6000 - 50000MOQ: 1 Unit
-
Programmable Constant Temperature and Humidity Test ChamberUS$ 1000 - 500000MOQ: 1 Set
Brand Name
ASLi
Place of Origin
China
Model Number
TH
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Application:
High Low Temperature Humidity Environmental Circulation Test Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Technical Parameters:
| Model |
TH-8 0(A~F) |
TH-15 0(A~F) |
TH-225 (A~F) |
TH-408 (A~F) |
TH-800 (A~F) |
TH-1000 (A~F) |
|
|
Internal Dimension WxHxD (mm) |
400x50 0x400 |
500x60 0x500 |
600x75 0x500 |
600x85 0x800 |
1000x100 0x800 |
1000x100 0x1000 |
|
|
External Dimension WxHxD (mm) |
950x1650x 950 |
1050x1750 x1050 |
1200x1900 x1150 |
1200x1950 x1350 |
1600x2000 x1450 |
1600x2100 x1450 |
|
|
Temperature Range |
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃ |
||||||
|
Humidity Range |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier) | ||||||
|
Indication relolution/ Distribution uniformity of temperature and humidity |
0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. | ||||||
| Control Accuracy of Temperature and Humidity | ±0.5℃; ±2.5% R.H. | ||||||
| Temperature Rising/Falling Velocity | Temperature rising approx. 0.1~3.0℃/min ; temperature falling approx. 0.1~1.0℃/min; ( Falling Min.1.5℃/min is optional) |
||||||
| Inner and Outer Material | Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated. | ||||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||
| Cooling System | Wind cooling or water cooling, (single segment compressor-40℃, double segment compressor -70℃) | ||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | ||||||
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier | ||||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | ||||||
| Power | AC220V 1 phase 3 lines, 50/60HZ , AC380V 3 phase 5 lines , 50/60HZ | ||||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 | |

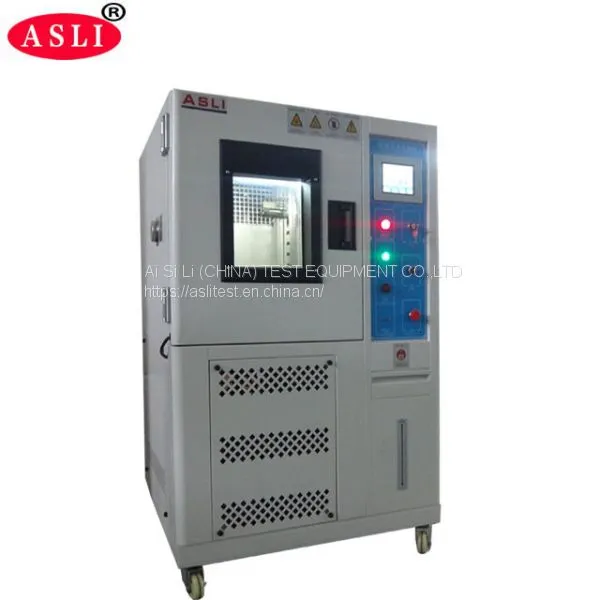

High Low Temperature Humidity Environmental Circulation Test Chamber Pictures:
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1988
Annual Export Value
US$5 Million - US$10 Million
Product Certifications
ISO9001
