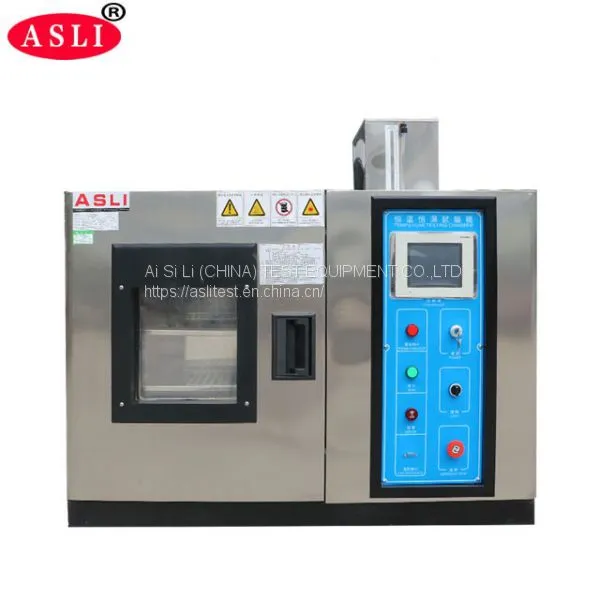

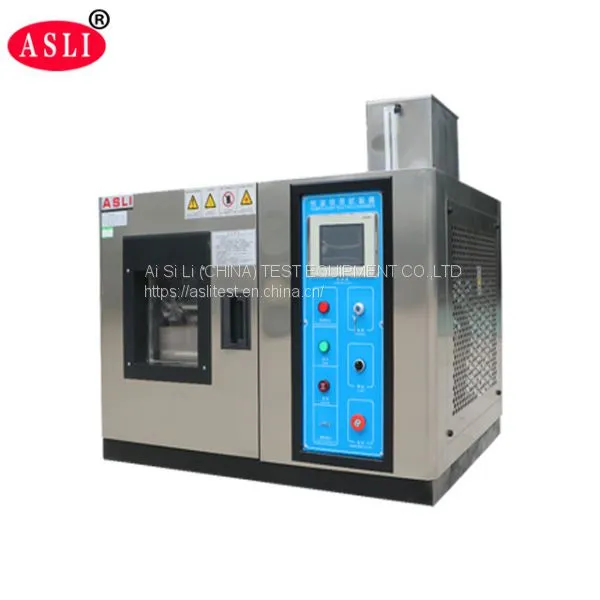

Help CenterEnvirnomental Test Equipment Desktop Temperature and Humidity Test Chamber
Related Products
-
TH Series Programmable Control Constant Temperature Humidity Test ChamberUS$ 1000 - 500000MOQ: 1 Set -
Desktop , Vertical , Walk-in Customized Temperature Humidity Test ChamberUS$ 1000 - 500000MOQ: 1 Set
-
Desktop Type Environmental Test Chamber Resistant Temperature Humidity Test of Electric ApplianceUS$ 1000 - 500000MOQ: 1 Set
-
LED Use Cabinet Constant Temperature Humidity ChamberUS$ 1000 - 500000MOQ: 1 Set
-
Desktop Cnc Climate Chamber With Temperature Humidity ControlUS$ 1000 - 500000MOQ: 1 Set
Envirnomental test equipment desktop temperature and humidity test chamber Application:
Desktop Temperature Humidity Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity, and applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Envirnomental test equipment desktop temperature and humidity test chamber Technical Parameters:
| Model | DTH-80A | DTH-80B | DTH-80C |
|
Internal Dimensions WxHxD (mm) |
400X500X400 | ||
|
External Dimensions WxHxD (mm) |
1150X1150X1050 | ||
| Temperature Range | (RT+10℃) ~+150℃ | 0~+150℃ | -20 ~+150℃ |
| Humidity Range | 20%~98%R.H. | ||
|
Analytic Accuracy / Distribution Uniformity of Temperature & Humidity |
0.1℃; 0.1% R.H / ±2.0℃; ±3.0% R.H. | ||
|
Control Accuracy of Temperature & Humidity |
±0.5℃; ±2.5% R.H. | ||
| Temperature Rising / Speed Rate |
Temperature rising approx. 0.1~3.0℃/min; temperature falling approx. 0.1~1.5℃/min; |
||
| Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
||
| Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
||
| Cooling System | Wind cooling | ||
| Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
||
| Optional Accessories |
Inner door with operation hole(Optional), Recorder(optional),Water Purifier |
||
| Compressor | French Tecumseh Brand,Germany Bizer Brand | ||
| Power | AC 220V, 1 ph 3 Lines , 50/60HZ; | ||
| Weight (Kg) | 75 | ||
Envirnomental test equipment desktop temperature and humidity test chamber Certification :
