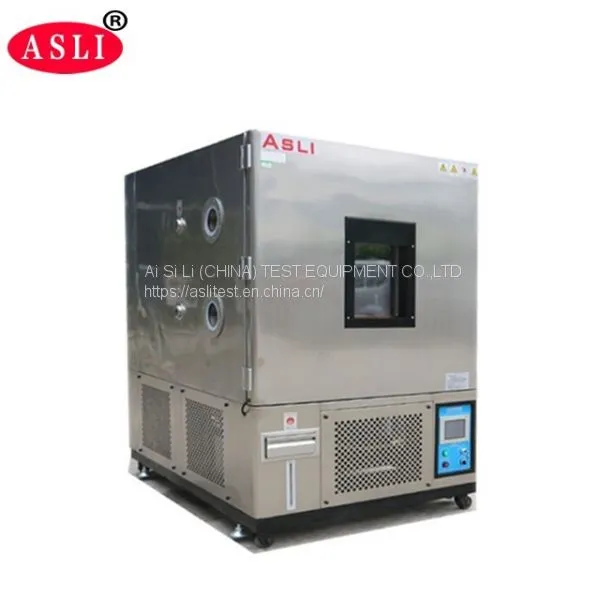

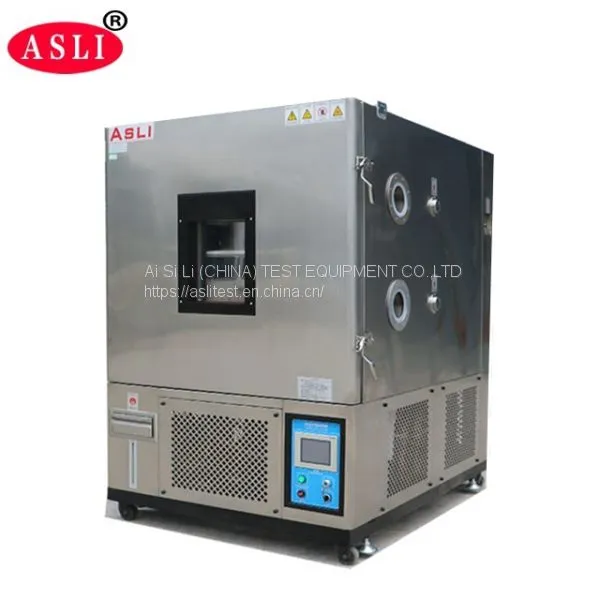

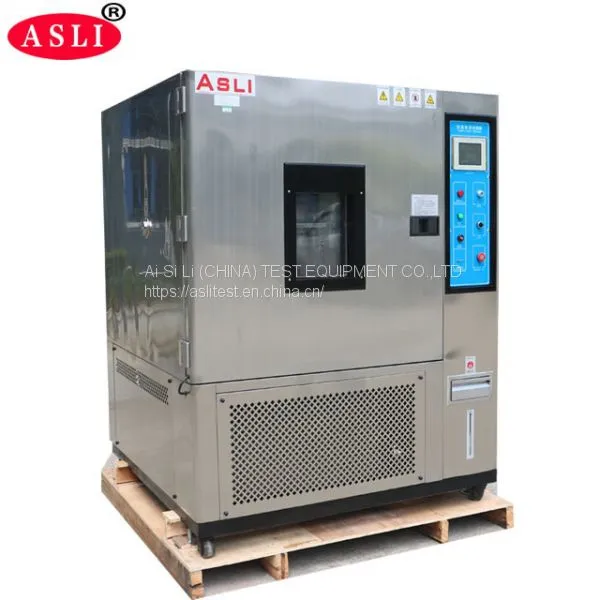

Stainless steel high low temperature alternating temperature test chamber Application:
Temperature Cycling Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Stainless steel high low temperature alternating temperature test chamber Technical Parameters:
| Model | HL-80(A~F) | HL -150(A~F) | HL -225(A~F) |
HL -408 (A~F) |
HL -800 (A~F) |
HL -1000 (A~F) |
|
Internal Dimensions WxHxD (mm) |
400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 |
1000x1000 x800 |
1000x1000 x1000 |
|
External Dimensions WxHxD (mm) |
950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 |
1600x2000 x1450 |
1600x2100 x1450 |
|
Temperature Range |
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃ | |||||
|
Analytic Accuracy/ Distribution Uniformity of Temperature |
0.1℃ /±2.0℃ | |||||
| Control Accuracy of Temperature | ±0.5℃ | |||||
| Temperature Rising/Falling Speed Rate |
Temperature rising approx. 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min; ( The Falling Speed Rate Min.1.5℃ per minute is a special optional condition) |
|||||
| Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
|||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | |||||
| Cooling System |
Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃) |
|||||
| Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system |
|||||
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Dehumidifier | |||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | |||||
| Power | AC220V, 1 ph 3 Lines,50/60HZ ; AC380V ,3 ph 5 Lines,50/60HZ | |||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
