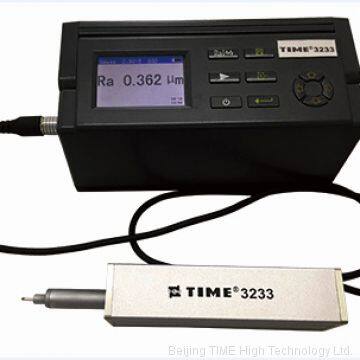

TIME® 323X series is advanced high-end surface roughness measuring instruments with wide testing range (±400µm) and high accuracy (tolerance±5%, repeatability 3%). Meanwhile, TIME® 323X surface roughness tester features with skidless/skid measurement, which means it can reach smaller and harder to reach parts than other conventional tools. Up to 55 paramenters for roughness, waviness and primary profile are supported. TIME®3233 is the latest portable stylus type surface roughness tester developed by TIME Group Inc. Separated driver makes it flexible to address different specimen. 50mm tracing length can fully test waveness.
TIME®3233 conforms to the following standards.
1. GB/T 3505-2009 Geometrical Product Specifications (GPS)--Surface texture: Profile method. Terms, definitions and surface texture parameters
2. Geometrical product specifications (GPS) - Surface texture: Profile method. Nominal characteristic of contact(stylus) instruments
3. SEP1941-2012 Measurement of the waviness characteristic value Wsa (1-5) on cold rolled metallic flat products.
Features
●Integrated design, easy and convenient to use, especially for narrow spaces down to 1.5mm
●55 kinds of measurement parameters conform to ISO/DIN/ ANSI/JIS standards for your convenience
●Rectangular driver for 90 angle measurements, even without lead.
●High accuracy in the surface roughness, waviness and primary profile testing.
●LCD displays digital and graphic information
●Numerous optional sensors to approach even the most inaccessible places, with or without leads
●Transfer to PC via RS232 with advanced PC Software TIMESurf for more analyzing management, and data can be stored in Excel file.
●Printer can be connected to print the digital and graphic information
●Wide measurement range up to 800 um, with the Accuracy 5 % and Repeatability 3%
●Adjust angle and lifting height by your choice.
●Full length waving testing with the maximum tracing length up to 50 mm.
Optional Accessory |
Printer TA230 |
PC software TIMESurf |
RS232 communication cable |
Technical Specifications
Assessed profile |
R (Roughness), |
Measuring range |
±400μm, ±25μm |
Filtering |
RC,PCRC,Gauss,D-P,ISO 13565 |
Parameters |
R: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rku,Rc,RS,RSm,Rlo,RHSC,Rpc,Rmr(c),RzJIS,R3y,R3z |
Cut-off length |
0.08mm,0.25mm,0.8mm,2.5mm,8mm,10mm |
Max. tracing length |
50mm |
Analysis graphs |
ADC, BAC |
Evaluation length |
1L-5L |
Resolution |
0.001μm/50μm；0.016μm/800μm |
Tolerance |
±5% |
Display |
LCD |
Memory |
10 groups of primary data |
Data output |
RS232,USB |
Power supply |
Li battery / AC adapter |
Dimensions (mm) |
409×96×98 |
Weight (g) |
2300 |
