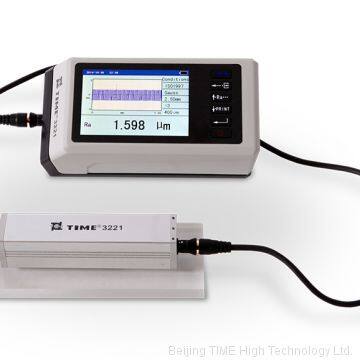

Help CenterPortable Surface Roughness Tester TIME®3221
Related Products
-
Skidless Surface Roughness Tester Profilometer TIME®3233US$ Negotiable - NegotiableMOQ: 1 Set -
Handheld Surface Roughness Tester TIME®3110 (TR110) for Ra-Rz MeasurementUS$ Negotiable - NegotiableMOQ: 1 Set
-
Advanced Surface Roughness Tester TIME®3210 for 360° TestingUS$ Negotiable - NegotiableMOQ: 1 Set
-
Stylus Surface Roughness Measuring Instrument TIME®3220US$ Negotiable - NegotiableMOQ: 1 Set
-
TIME 3223 Surface Measuring ToolUS$ Negotiable - NegotiableMOQ: 1 Set
Features
● Separated design, mini driver easy and convenient to use
● Multi-parameter measuring: Ra、Rp、Rv、Rt、Rz、Rq、Rsk、R△q、R△a、Rku、Rc、RPc、RSm、Rmr(c)、tp、Rmr、Rpm、Rz1max、RzJIS、Rmax、Htp、Rδc、Pa、Pp、Pv、Pt、Pz、Pq、Psk、Pku、Pc、PSm、Pmr(c)、Pmr、Pz1max、PzJIS、Pδc、P△q、Rk、Rpk、Rvk、Mr1、Mr2、A1、A2
● Touch screen with TFT LCD showing all important parameters and graphs
● High accuracy inductive pickup
● Filtering methods of 2RC, GAUSS
● Compatible with standards of ISO1997, ANSI and JIS2001
● Connected to TIME TA230 printer to print all parameters and graphs
● RS232 interface and USB interface meeting more needs
● Auto switch off
Standard Delivery |
|
Main unit |
1 |
Standard pickup |
1 |
Standard sample |
1 |
Power adapter |
1 |
Communication cable |
1 |
Protection sleeve |
1 |
Adapter |
1 |
Magnetic base |
1 |
TIME certificate |
1 |
Warranty card |
1 |
Instruction manual |
1 |
Technical Specification
Pickup | ||
Test principle |
Inductance type |
|
Measurement range |
400μm |
|
Stylus tip radius |
5μm/2μm |
|
Stylus tip material |
Diamond |
|
Measuring force |
4mN/0.75 mN |
|
Stylus tip angle |
90º/60º |
|
Radius of skid curvature |
45mm |
|
Maximum drive range |
19mm/0.748inch |
|
Traversing speed |
Measuring: |
|
Accuracy |
Less than or equal to ±10% |
|
Repeatability |
≤6% |
|
Cut-off length |
0.08mm,0.25mm,0.8mm,2.5mm, selectable |
|
Evaluation length |
(1~5 )L selectable |
|
Measuring rang and resolution |
Measuring range |
Resolution |
Automatic |
0.001μm,0.008μm |
|
±50μm |
0.001μm |
|
±200μm |
0.008μm |
|
Power |
Built-in Li battery |
|
Power adapter |
Input: 100 V~240VAC,50/60Hz |
|
Working environment |
Temperature: 0℃~40℃ |
|
Dimensions (mm) |
155.4×75×53 |
|
Weight (g) |
580 |
|
