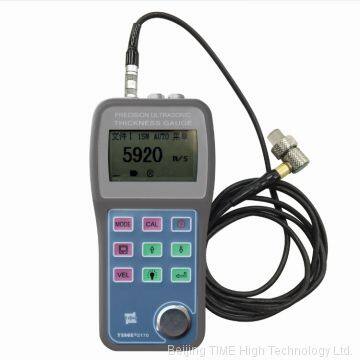

Portable Ultrasonic Thickness Gauge TIME®2170
You May Like
Product Details
| Brand Name | TIME | Place of Origin | China | |
| Model Number | TIME®2170 |
Product Description
TIME®2170 digital ultrasonic thickness meter (originally named TT700) is a rugged and versatile thickness testing equipment made by Beijing TIME High Technology Ltd. On the one hand, it can measure super thin parts with minimum thickness up to 0.15mm for steel. On the other hand, it supports high precision measurement with the resolution up to 0.001mm.
TIME®2170 portable thickness gauge is designed to test the wall thickness and corrosion of various kinds of plates, pipes, boiler vessels, widely applied in industries like metallurgy, shipbuilding, machinery, chemical, petroleum, aerospace, aviation, electric power, nuclear energy, oil and gas pipelines, boiler inspection, pressure vessels and others, which plays an important role in safe operation of equipment and modernization management.
Features
● Especially suitable for testing the thin workpieces while keeping high accuracy
● I-E testing mode and E-E testing mode
● Sound velocity testing and single point calibration
● Sound alarm and different modes are available
● Free conversion between metric and imperial
● Up to 500 data can be stored, reviewed and deleted
● Backlight and adjustable contrast
● Result can be print out and transfer to PC
Standard Delivery | Optional Accessory | |
Main unit | 1 | Communication cable |
Transducer 15Pø6 | 1 | Standard test block |
Screw driver | 1 | 20MHz transducer |
Protection sheath for main unit | 1 | TA230 printer |
Connecting protection sheath | 1 | |
Cover protection sheath | 1 | |
AA battery 1.5V | 2 | |
Couplant | 1 | |
TIME certificate | 1 | |
Warranty card | 1 | |
Instruction manual | 1 |
Technical Specifications
Measuring range | 0.15~20mm |
Display resolution | 0.001 mm and 0.01 mm selectable |
Sound velocity range | 1000m/s~9999m/s |
Power | AA batteries 1.5V(2 pcs) |
Operating temperature | 0~40℃ |
Dimension (mm) | 152×74×35 |
Weight (g) | 220 |
