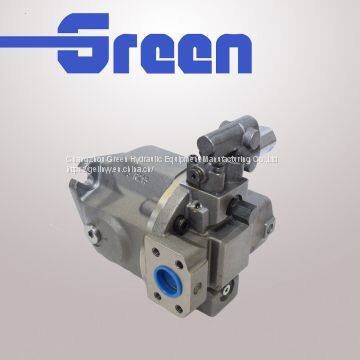

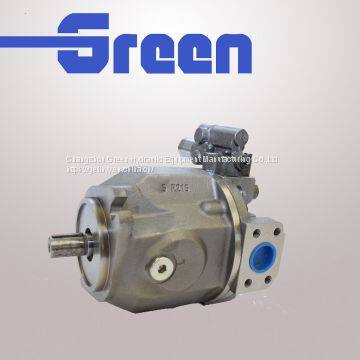

High Speed Rexroth A10V Hydraulic Piston Pump

High Speed Rexroth A10V Hydraulic Piston Pump thumbnail-1
High Speed Rexroth A10V Hydraulic Piston Pump thumbnail-2
High Speed Rexroth A10V Hydraulic Piston Pump thumbnail-3
High Speed Rexroth A10V Hydraulic Piston Pump thumbnail-4
High Speed Rexroth A10V Hydraulic Piston Pump photo-1
High Speed Rexroth A10V Hydraulic Piston Pump photo-2
High Speed Rexroth A10V Hydraulic Piston Pump photo-3
High Speed Rexroth A10V Hydraulic Piston Pump photo-4
US$ 100 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
green
Place of Origin:
China
Model Number:
A10V
Contact Supplier Request Quote Chat Now
Changzhou Green Hydraulic Equipment Manufacturing Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Ningbo or main port of china
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name green
Place of Origin China
Model Number A10V
Application Other, hydraulic system
Fuel Diesel
Power Hydraulic
Usage Oil
Theory Axial Flow Pump
Standard or Nonstandard Standard
Structure Piston Pump
Pressure High Pressure

CHARACTERISTICS of A10VSO series hydraulic pump
1 Swash plate design axial variable piston pump used in open circuit.
2 Continuous work pressures can reach 280bar;
the highest instantaneous work pressure can reach 350bar.
3 The flow is directly proportional to the drive rotate speed and the displacement,
and can make stepless variable come true by adjusting the obliquity of the swash plate.
4 There are various of control type such as DR, DFR, DFLR etc. and the control response is very fast.
5 Low noises level, High efficiency, High reliability and long time service life.
6 Small volume, High power density.
7 Excellent oil absorbency.
8 Axial and radial loading of drive shaft possible
9 SAE and ISO mounting flange



Techinal data of A10VSO series hydraulic pump

Sizes


16/18

28

45

71

100

140

Displacement

Vg max

cm3

18

28

45

71

100

140

Max speed

nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

In nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

(¦¤p=280bar)
Max. power

in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

(¦¤p=280bar)
Max. torque

in Vg max

Tmax

Nm

80.1

125

200

316

445

623

Weight

m

Kg

12

15

21

33

45

60











Hydraulic testing system of hydraulic pump:

Each set of hydraulic pump is fully tested by our hydraulic system to ensure product 100 % quality before we send them to our customers.


Product Tags: piston pump , rexroth hydraulic pump , rexroth a10vso140 hydraulic pump
