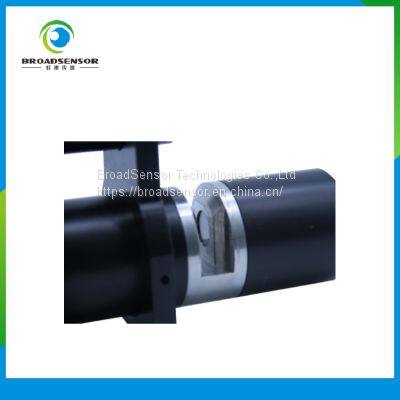

UV254 COD(5 beams) with wiper sensor, online water BOD/TOC sensor

Name: UV254 COD(5 beams) with wiper sensor, online water BOD/TOC sensor
Brand: BroadSensor
Price: USD $8 - 8 / Piece

FOB Price

USD $8 - $8 / Piece

1 Piece(Min.Order)

Supply Ability 999 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T
Delivery Detail:10 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

BroadSensor

Place of Origin:

China

Model Number:

912123

Product Description

The Broadsensor UV254 sensor is an optical-based absorption and transmittance with UV LED and PD technology sensor. The sensor measures the absorption at UV 254nm, blue, green, red and IR Simultaneously to compensate the SAC measurement for interferences from turbidity and color.

Key Advantages:
• 5 wavelength absorption measurement: UV, Vis and IR for turbidity and color compensation.

• SAC measurement used to determine organic loading without reagents.

• Measurement directly in the process, no sample processing or reagent required.

• Fast response, minimum 10 second.

• Cold light source (UV LED) and rugged PD, long life time and low drift.

• Support leakage alarm

• Build in auto wiper sub-system prevents biofouling from taking place.

Item	Technical Specification
Measurement Method	Absorption measurement at 254 nm, DIN 38402 C2, DIN 38404, HJ/T191 standard
Range	6mm cuvette gap 0.15~300mg/L equiv. KHP(COD solution) 2mm cuvette gap 0.5~1000mg/L equiv. KHP(COD solution) 2mm cuvette gap 1.5~1500mg/L equiv. KHP(COD solution)
Resolution	0.1mg/L or 0.01mg/L COD
Repeatability	+/-1% FS equiv. KHP
Operating temperature	0~45℃
Storage Temperature	-10~50℃
Clean system	Auto wiper system is optional
Warranty	1 year
Depth	IP68, 10m Max
Power	12V 20mA (normal), 200mA (Max)
Output	RS485 and Modbus protocol
Materials	Titanium, SS316, POM, Nylon, PUR, quartz glass
Dimensions	Length 280mm, diameter 142x157mm
Flow rate	<3 m/s
Response time	Minimum 10s T90
Field life*	Sensor 3 years or greater, wiper sub-system 1.5 years or greater
Recommended Calibration Frequency*	Sensor 3 months, wiper sub-system inspection 6 months.

Note: *Field life and calibration frequency dependent on site conditions
