BRIEF INTRODUCTION

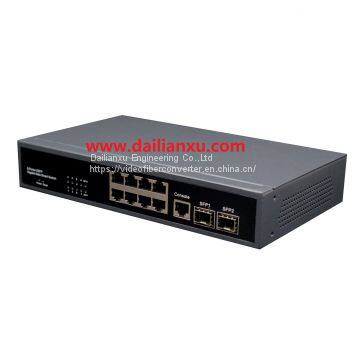

DLX-MPFS04G/08G series 10/100M/1000M Loop Self-healing Managed POE Ethernet Fiber Switch is included two 1000M fiber optical port and 4/8 POE 10/100M/1000M Ethernet ports. Adopts newest ring loop redundancy technique, Self-heal at very less time (
It has the function of photoelectricity switchover between 4/8channels 10/100M/1000M Ethernet ports and 1000M optical port. Adopts single port full-power technology, and single port Support Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it. Support smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over-voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level(4KV) lightning, surge and ESD(8KV) protection.
FEATURES
● 2 1000M Fiber ports and 4/8 10/100M/1000M RJ45 Ethernet ports
● All Ethernet and power ports adopt advanced Self-healing multi-stage lightning protection design, meet EN61000-4-2~EN61000-4-6 series standard
● Electromagnetic Compatibility meet Industrial grade 4 standard, suit to Harsh electromagnetic environment
● Support multiple network management, like: SNMP, Web browser,Telnet and RS232 Console
● Support Command Line Interface(CLI), Easy to quick configure key managements
● Bandwidth management: port aggregation, port speed limit, multicast and broadcast storm suppression
● Support IEEE 1588 PTP V2(precision time protocol),to achieve accurate network time synchronization
● Support QoS and ToS/D ffServ for flow control and manage DHCP Opt on 82 for assign IP address by different strategy
● Support Line detection and 32Kbps port’s bandwidth control to use the band resources properly
● Support port Aggregation, port mirroring, port configuration
● Support patent ring protocol “FR Ring”(self-healing time
● Support TACACS+,IGMP Snooping and GMRPto filter multicast traffic
● RMOn effectively improve network monitoring and forecasting capabilities
● Support port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol
● Support MAC address-based port lock to prevent illegal instrusion
● Support Ethernet/ IP and Modbus/TCP protocol to device management and control
● Support Automatic alarm via E-mail and relay output
● All ports support non-blocking and full line speed forwarding, supply powerful data processing capacity
● Support 12V/24V/48V DC and 110V/220V AC wide voltage
● Support Priority Mode and QoS control strategy.
● Auto-negotiate to NIC/HUB and MDI/MDI-X
● Single port full-power technology, and single port Support Max.30W
● Support IEEE802.3AF and IEEE802.3AT protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it
● Support smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices
● Support Auto-standby mode and cable distance detection management, if no devices been connected, then auto-standby to save energy, if cable distance less than 10meters,then will use Lower transmission power
● Smart POE auto-recognized system to protect devices from overflow current and over-voltage etc.
● 1/2/3/6 lines or 4/5/7/8 lines power supply optional, Support all PD devices
● Anti-lightning and ESD protection for all Ethernet ports, power ports.
● Immersion gold PCB board, Industry grade components
● Support VLAN Network isolation and BSTM broadcast storm-control setting
● Indicators for Power Supply, Ethernet etc.
● Support line speed switching of all ports and in 64~1536 frame length can reach line speed
● Wall mounted installation
● Transmission distance: 500M(multi-mode),20km,40km,60km,80KM optional(Single-mode)
