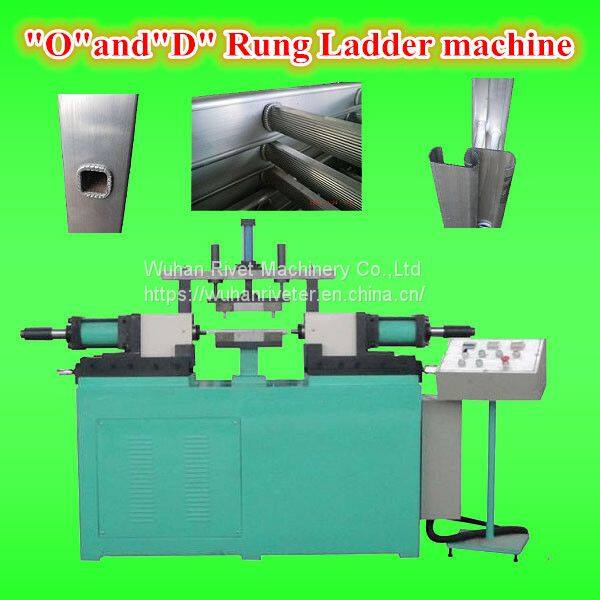

Ladder squeezing machine: model JYJ
Squeezing machine (model:JYJ) to processing aluminium ladder (also called swaging or corrugation), suitable to swaging "D"-shape rung and "O"-shape rung, those kinds of rung can produce single section ladder and extension ladder,but can not joint a folding ladder.It is most important that ladder rung match up profile, generally the follwoing matches ladder rung with profile:
1. "O"-shape rung with "C"-channel profile (Both inside and outside corrugation).
2. "D"-shape rung with "C"-channel profile (Both inside and outside corrugation).
3. "O"-shape rung with "I"-shape profile (Both inside and outside corrugation).
4. Square rung with rectangle profile ( 1. Inside corrugation and outside flanging,
2. Inside expanding and outside corrugation).
5. Oval rung with "I"-shape profile (Both inside and outside corrugation).
Specification:
▲ure 63Kn
▲Max. output 6MPa
▲Power 4Kw
▲Cylinder stroke 150mmx2
▲Processing range 300-550mm
▲Squeezing system move 150mmx2
▲Hight of corrugation 1-4mm (adjustable)
▲Applications "D"-shape rung,"O"-shape rung, square and oval.
▲Oil tank capacity 180Kg (ISO:46#)
▲A work cycle 1-99 Second (adjustable)
▲Physical size 2400mmx600mmx1700mm
▲Net weight 1100Kg
Processed samples
