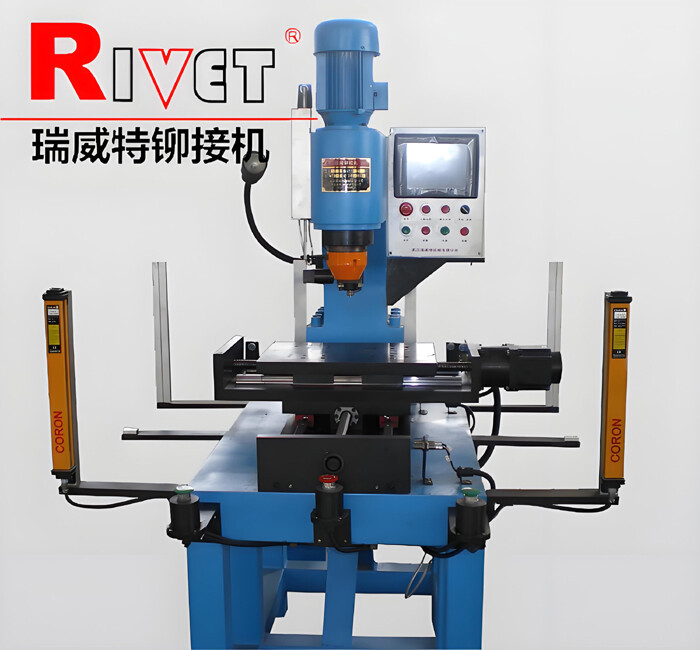

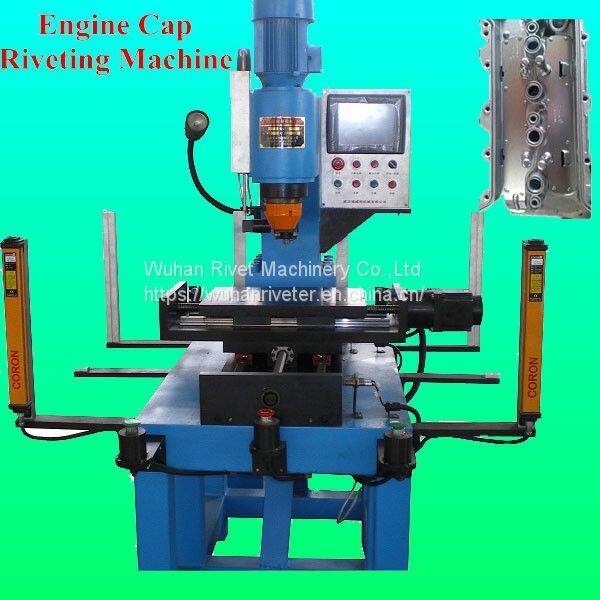

Engine Cover Riveting Machine
Programmable control radial riveting machine is a newly developped based on
tranditional Common riveting machine, with the characteristic of stable and without
shaking during processing, smooth of surface after processed. It's a kind of exellent
equipment of mass production. This machine especially suitable to processing the
cover of car engine.
Characteristics:
■Applied new automatic technologies
■ Programmable, simple and reliable
■ With X, Y, Z axis program control
■Workpiece clamping automatically
■6.5 inch LCD touch screen
■ Digital Pressure Sensor
■Multi-safety sensors
■Single head or multi-head available
■Hydraulic or pneumatic as optional
■Manual, semi auto, automatic functions
■Display current pressure
■Plexiglass safety covered around the machine
■Automatic shutdown of time-lapse
■Can reserve the connector mouth for synchronize clamp
Specification:
1. ure 20Kn
2. cessing ability Φ12mm
3. Cylinder strocke 30mm,60mm,80mm, as optional
4. Riveting pin length 50mm, 85mm, 120mm, as optional
5. Two-dimensional bench 600mmx350mm
6. Moves:
X-direction 600mm
Y-direction 300mm
z-direction 70mm
7. Positioning accuracy ≤0.05mm
8. Forming shape Semi-round,flate,reticulate,dish-shaped etc.
9. Physical size 1500mmx1000mmx1800mm
10.Net weight 1000Kg
Machine operation interface
Processed samples
