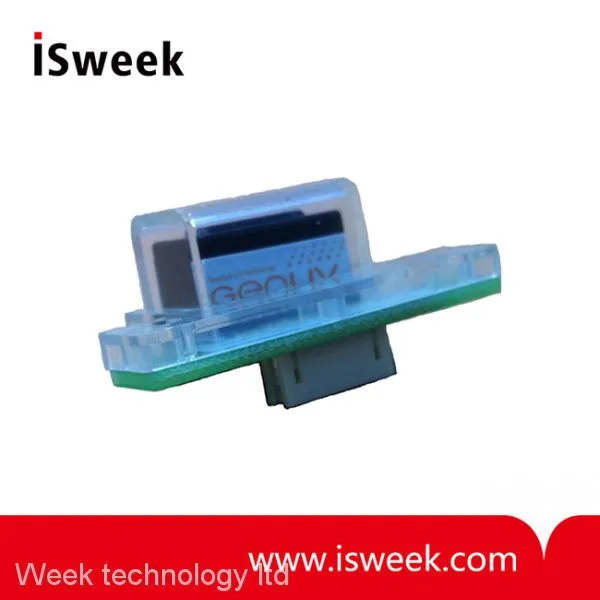

GenUV-L365P-MM Reflective UV Sensor for Money Detecting
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Genicom
Place of Origin:
South Korea
Model Number:
GenUV-L365P-MM
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
SG01S-18 Broadband SiC Based UV Photodiode A = 0.06 Mm2NegotiableMOQ: 1 Piece -
SG01S-5 Broadband SiC Based UV Photodiode A = 0.06 Mm2NegotiableMOQ: 1 Piece
-
GUVV-T10GD-L UV Sensor for Full UV Band MonitoringUS$ 13 - 20MOQ: 1 Piece
-
SG01S-18S Broadband SiC Based UV Photodiode A = 0.06 Mm2NegotiableMOQ: 1 Piece
-
GVBL-S12SD UV / Visible SensorNegotiableMOQ: 1 Piece
Brand Name
Genicom
Place of Origin
South Korea
Model Number
GenUV-L365P-MM
Usage
Other, UV Sensor
Theory
Optical Sensor
GenUV-L365P-MM Reflective UV Sensor Features
Light Emission Wavelength - 365nm
Emitting part- Visible range absorbing filter
Receiving part - UV absorbing filter
Responsing to fluorescence ink
GenUV-L365P-MM Reflective UV Sensor Applications
Money detecting
Counterfeits bill detecting
GenUV-L365P-MM Reflective UV Sensor Outline Diagrams
GenUV-L365P-MM Reflective UV Sensor Absolute Maximum Ratings
| Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
| Storage Temperature |
Tst |
-40 | 90 | ℃ |
||
| Operating Temperature |
Top |
-30 | 85 | ℃ |
||
| Supply Voltage |
VCC | 5.5 | VDC | |||
| Soldering Temperature |
Tsol |
260 | ℃ | Within 10 sec |
GenUV-L365P-MM Reflective UV Sensor Electro-Optical Characteristics (at 25 ℃)
| Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
| Supply Voltage |
VCC | 1.8 | 5.5 | V | DC | |
| Supply Current |
IQ | 10 | 20 | mA | ||
| Emission Wavelength |
λ |
365 | nm | IF=10㎃ |
||
| Detection Range |
P | 400 | 1000 | nm | ||
| Output Voltage |
VO |
10 | mV | No object, in dark |
||
| 2.7 | V | 90% reflector paper |
||||
| Detecting distance |
d | 2 | mm | Max. Vout |
