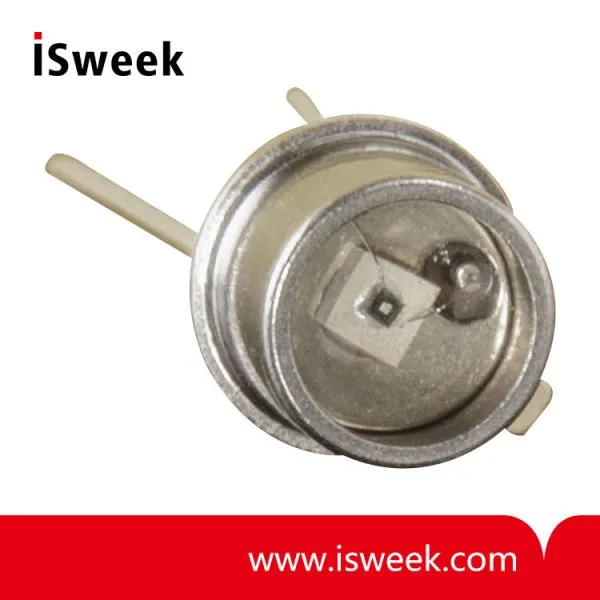

SG01S-18S
Broadband SiC based UV photodiode A = 0.06 mm2
◆ SG01S-18S UV Photodiode General Feature
Properties of the SG01S-18S UV Photodiode
• Broadband UVA+UVB+UVC, PTB reported high chip stability
• Active Area A = 0.06 mm2
• TO18 hermetically sealed metal housing, short cap, 1 isolated pin and 1 case pin
• 10mW/cm2 peak radiation results a current of approx. 780 nA
About the material Silicon Carbide (SiC)
SiC provides the unique property of extreme radiation hardness, near-perfect visible blindness, low dark current, high speed and low noise.These features make SiC the best available material for visible blind semiconductor UV detectors. The SiC detectors can be permanently operated at up to 170°C (338°F). The temperature coeffiient of signal(responsivity) is also low,
Options
SiC photodiodes are available with seven different active chip areas from 0.06 mm2 up to 36 mm2. Standard version is broadband UVA-UVB-UVC. Four fitered versions lead to a tighter sensitivity range. All photodiodes have a hermetically sealed metal housing (TO type), either a 5.5 mm diameter TO18 housing or a 9.2 mm TO5 housing. Further option is either a 2 pin header (1 isolated, 1 grounded) or a 3 pin header (2 isolated, 1 grounded).
◆ SG01S-18S UV Photodiode Nomenclature
◆ SG01S-18S UV Photodiode SpecIfication
| Parameter | Symbol | Value | Unit |
| Spectral Characteristics | |||
| Typical Responsivity at Peak Wavelength | Smax | 0.130 | AW-1 |
| Wavelength of max. Spectral Responsivity | λmax | 280 | nm |
| Responsivity Range (S=0.1*Smax) | – | 221 … 358 | nm |
| Visible Blindness (Smax/S>405nm) | VB | > 1010 | – |
| General Characteristics (T=25°C) | |||
| Active Area | A | 0.06 | mm2 |
| Dark Current (1V reverse bias) | Id | 0.2 | fA |
| Capacitance | C | 15 | pF |
| Short Circuit (10mW/cm2 at peak) | Io | 780 | nA |
| Temperature Coefficient | Tc | %/K | |
| Maximum Ratings | |||
| Operating Temperature | Topt | -55 … +170 | °C |
| Storage Temperature | Tstor | -55 … +170 | °C |
| Soldering Temperature (3s) | Tsold | 260 | °C |
| Reverse Voltage | VRmax | 20 | V |
