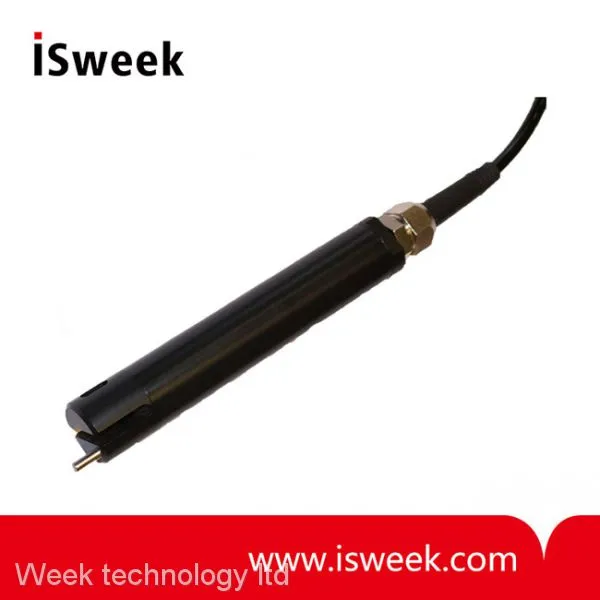

C4E 4 Electrode Conductivity Sensor
- 1000 Piece / Pieces per Month
- HK
- T/T PayPal
- 7 days
- CS8000TC Cooling Tower Conductivity Sensor and Flow Cell
- SG01L-A5 UVA-only SiC Based UV Photodiode A = 1.0 mm2
- GenUV-L365P-MM Reflective UV Sensor for Money detecting
- SO-A0-010 Limiting Current Type Zirconia Oxygen Sensor
- SONIC-ANEMO-DZP Ultrasonic Wind Speed Sensor
- CV7-OEM Ultrasonic Wind Speed Sensor
Product Details
Brand Name: | Smart Storm | Place of Origin: | United Kingdom | Model Number: | C4E |
Usage: | Other, Water Quality Sensor | Theory: | Other, Conductivity Sensor | Output: | Digital Sensor |
Product Description
C4E Conductivity Sensor electrode technology:
The sensor works with 4 electrodes: An alternating current of constant voltage is established between a primary pair of electrodes in graphite. The secondary electrodes in platinum regulate the voltage imposed to the primary electrodes to reflect the fouling. The voltage measured between the primary electrodes is the function of the resistance and therefore a measurement of the conductivity.
C4E Conductivity Sensor Digital Technology :
The smart digital C4E sensor stores calibration history data within the sensor. This allows a 'plug and play' system without re-calibration.
C4E Conductivity Sensor Digitally optimised measurement technology
• 4 electrode conductivity sensor (2 graphite & 2 platinum)
• Smart sensor stores configuration settings and calibration history
• Range 0-200 mS/cm
• Digital sensor - Modbus RS-485
• Robust and watertight
C4E Conductivity Sensor Applications
• Industrial effluent treatment
• Urban wastewater treatment
• Surface water monitoring
• Sea water
• Drinking water
C4E Conductivity Sensor Specification
Measurement | |
Measurement principle | Conductivity sensor with 4 electrodes (2 graphite, 2 platinum) |
Measured conductivity ranges | 0-200.0 μS/cm |
Resolution | 0.01 to 1 according the range |
Accuracy | +/- 1 % of the full range |
Measured salinity range | 5-60 g/Kg |
Measured TDS -KCl range | 0-133 000 ppm |
Response time | <5 s |
Working temperature | 0°C to 50°C |
Temperature compensation | CTN |
Operating temperature | -10°C to +60°C |
Signal interface | Modbus RS-485 ( option SDI-12) |
Maximum refreshing time | Max <1 s |
Sensor power-supply | 5 to 12 volts |
Electric consumption | Standby: 25 μA |
Sensor | |
Dimensions | Diameter: 27 mm; Length: 177 mm |
Weight | 350g (sensor + 3 metres cable) |
Material | PVC, stainless steel |
Maximum pressure | 5 bars |
Connection | 9 armoured connectors, polyurethane jacket, bare-wires or waterproof |
Degree of protection | IB68 up to gland |
Protection | IP68 |
