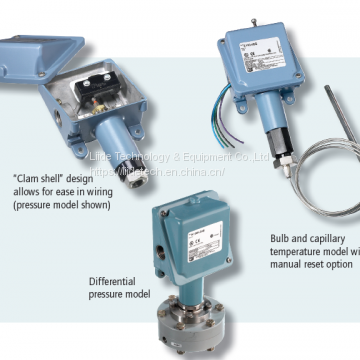

UE 100 Series Temperature SWITCH
The 100 Series is a cost-effective pressure and temperature switch
for process plants and OEM equipment. The rugged, one piece
enclosure features a slanted cover for wiring accessibility.
A wide variety of microswitch and process-connection options
make this versatile series ideal for applications requiring a rugged
weather-proof mechanical switch.
Typical applications that utilize the 100 Series are heat tracing,
freeze protection, processing equipment (pumps, compressors),
inputs for annunciator panels, and fire suppression systems.
features
• Single Switch Output
• Epoxy Coated and Gasketed Cast Aluminum
Enclosure Type 4X
• Tamper-Resistant Set Point “Lock”
• Heat Trace and Freeze Protection Thermostats
• Proof Pressures to 10,000 psi (689,5 bar)
• Adjustable Ranges:
Pressure:
30 “Hg Vac to 5000 psi
(-1 to 344,7 bar)
“wc Ranges:
300 “wc Vacuum to 250 “wc Pressure
(-746,7 to 622,3 mbar)
Differential Pressure:
0.2 “wcd to 500 psid
(0,5 mbar to 34,5 bar)
T emperature:
-180 to 650°F
(-117.8 to 343.3°C)
UL listed and cUL certified.
• CE compliant to low voltage
directive and pressure
equipment directive.
• Optional ATEX or GOST intrinsic
safety compliance
• Single switch (SPDT or DPDT)
output
• Welded stainless steel
diaphragm models
• Ultra low pressure, “wc models
• Optional sensor material for
corrosive media
• Polished stainless steel flushmount
connection
• Pump switch models with wide
adjustable dead band
specifications
Storage temperature -65 to 160°F (-54 to 71°C)
Ambient TEMPERATURE -40 to 160°F (-40 to 71°C); models 520-525, 540-548, 700-706, 15731-15736: 0 to
limits 160°F (-18 to 71°C); Set point typically shifts less than 1% of range for a 50°F (28°C)
ambient temperature change
Set point repeatability Temperature models: ± 1% of adjustable range
Pressure models 15623, 15731-15737, 171-174, 218, 270-376, 520-535, 540-543, 700-
706, 560-564: ± 1% of adjustable range; models 190-194, 183-189, 483-494, 544-548,
565-567, 610-680, 15884: ±1.5% of adjustable range
Internal set point lock on all pressure models
Shock Set point repeats after 15 G, 10 millisecond duration
Vibration Set point repeats after 2.5 G, 5-500 Hz
Enclosure Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
Enclosure classification Enclosure type 4X
Switch output One SPDT snap action switch; switch may be wired “normally open” or “normally closed”
Electrical rating 15A 125/250/480 VAC resistive except for H100-15623, 15731-15737, 15884, 20A
125/250/480 VAC resistive, B100-13546 and E100-13545, 22A/480 VAC. Electrical
switches have limited DC capabilities at 24-30 VDC, 2A resistive and 1A inductive. 125
VDC, 0.5A resistive, 0.03A inductive. Consult factory for additional information.
Weight 2-7 lbs; Varies with model
Electrical connection 1/2” NPT (female); Two 7/8” diameter knockouts
Pressure connection Models 15623, 218, 270-376, 610-680, 701-706, 15731-15884: 1/4” NPT
(female); Models 171-194, 483-494, 520-535, 15737: 1/2” NPT (female); Models 540-
548: 1/8” NPT (female); Models 560-564: 2” Sanitary Fitting; Models 565-567: 1.5”
Sanitary Fitting (Sanitary fittings mate with Tri-ClampR fitting systems)
Temperature assembly Bulb and capillary: 6 feet 304 stainless steel except for E100-13545, 10 feet 304
stainless steel
Immersion stem: nickel-plated brass (standard) except for B100-13546 stainless steel;
optional 316L stainless steel
Fill Models 1BS/BC are solvent filled, models 2-8 non-toxic oil filled
Temperature deadband Type F typically 1% and type B, C, and E typically 2% of range under laboratory
conditions (70°F ambient circulating bath at rate of 1/2°F per minute change)
Heat tracing or Thermostats designed specifically for heat tracing and freeze protection ambient sensing
Freeze protection applications are available with types B100 and E100.
