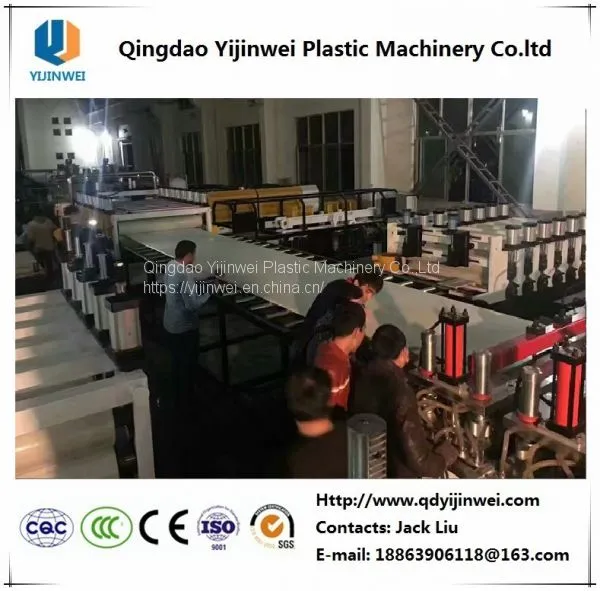

PVC foam board extrusion machine:
Work flow:
Mixer→SJSZ series extruder→Coat-hanger type mould→Calibration cooling platform→cooling rollers and edge-cutting device→Haul off→stacker
Recommeded board specifcation:
W*L*T:1220mm*2440*(3mm,5mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm,25mm)
Usage:
Could be used as decoration board,kitchen board,construction board.
Equipment list
No. |
Name |
Qty |
Remarks |
Host machine |
|||
1 |

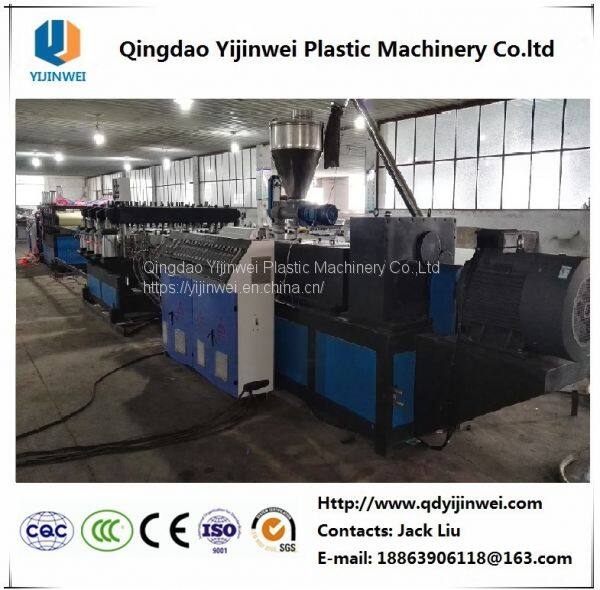

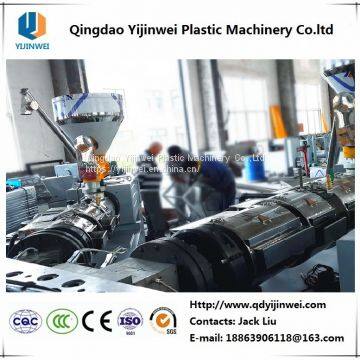

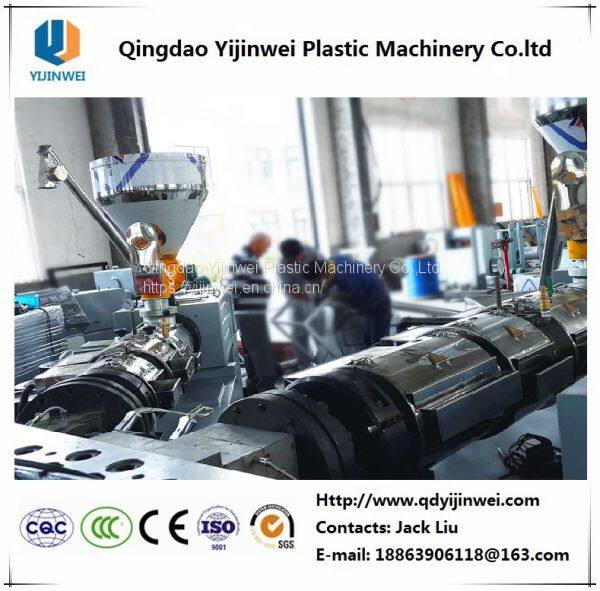

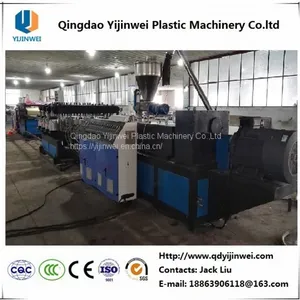

SJSZ80/156 conical double screw extruder |
1set |
Zhoushan |
2 |
Board mould |
1unit |
|
3 |
Mould temperature controller |
1set |
|
4 |

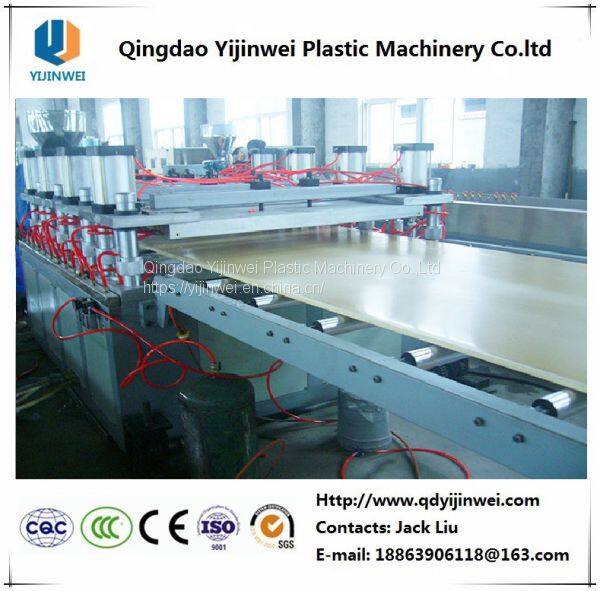

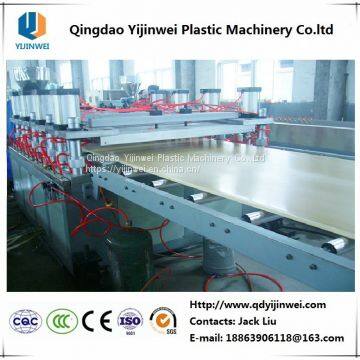

Cooling sizing platform |
1set |
|
5 |
20P chiller |
1set |
|
6 |
Cooling bracket(including guide rail) |
1set |
|
7 |
Haul off |
1set |
|
8 |
Transverse cutter |
1set |
With dust collector |
9 |
Edge cutter |
1set |
With dust collector |
10 |
Conveying Stacker |
1set |
|
Auxiliary machine(optional) |
|||
11 |
SHR500/1000 mixer |
1set |
|
12 |
SWP380 crusher |
1set |
|
13 |
MF400miller |
1set |
|
14 |
Air compressor |
1set |
|
Note:
1.The total installed capacity is 315kw
2.This machine could produce both furniture board and construction board.
3.Achieve different desinty of the foam board by adjusting the proportion of the formula
4.Supply our special formula which is very important.
Technical parameter:
| Model | SJSZ-80/156 | SJSZ-92/188 |
| Board width(mm) | 1220 | 1550 |
| Board thickness(mm) | 10-20 | 10-20 |
| Extruder | SJSZ-80/156 | SJSZ-92/188 |
| Extruding capacity(kg/h) | 450 | 600 |
| Main motor power(kw) | 75 | 110 |
---FAQ---
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How can I believe your factory and machines.
A: We have CE certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.
Q3.How to pay to you?
A:1)30% of total amount paid by TT as advance, then the seller start production
2)after the machine is finished ,buyer CAN come to test the machine in seller’s factory ,
and then pay the 70% balance by TT or irrevocable L/C at sight . Then seller ship the machine.
Q4.How long is the delivery time?
A:For standard machines, it would be 30 days; For non-standard machines and customized machines according to client s specific requirements, it would be 45 days.
Q5.Do you arrange shipment for the machines?
A:Yes,for FOB or CIF price, we will arrange shipment for you.
Q6.How about the documents after shipment?
A: After shipment, we will send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
Q7.What's your after-sales service ?
A: (1)The supplier provides service manual and maintenance instruction of main electric appliances, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing. (2)The supplier is responsible for installation, debugging and training, but the air tickets, insurance, eating, housing and every day 100 USD for each engineer will be responsible by the buyer. (3)We will provide spare parts at cost price during whole life of the machines.
Q8.What's your warranty?
A: We will realize guarantee of machines within one year after the machine arrived in customer’s factory (except destroyed by buyers’ wrong operation). And half a year for electric parts.
Spare parts at cost price will be provided during whole life long of the machines.
Q9.Is there any free spare parts of machine?
A: Yes, we will equipped some spare parts and delivery togehter with machines.
