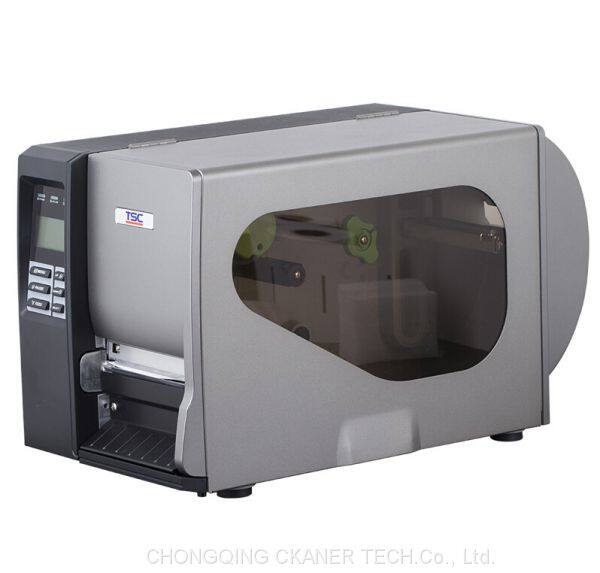

Help CenterTSC TTP-246M Plus Thermal Ribbon Industrial Barcode Printer
Related Products
-
TSC TTP-244 203dpi Desktop Barcode Printer TTP-244 ProUS$ 186 - 195MOQ: 1 Set -
Ckaner TSC TTP-342e 300dpi Android Thermal Printer Pos PrinterUS$ 268 - 280MOQ: 1 Set
-
Cheapest Desktop Printer Direct Thermal Barcode Shipping GP1324D Label PrintersUS$ 75 - 92MOQ: 1 Set
-
POSTEK C168 Lable Printer Desktop Barcode PrinterUS$ 168 - 228MOQ: 1 Set
-
Ckaner Scans Speed MP720 Hands-Free Laser ScannerUS$ 180.9 - 190MOQ: 1 Set
Industrial duty printing
•Health care patient safety
•Compliance labeling
•Work in process
•Order fulfillment
•Distribution
•Shipping/receiving
•Ticketing
Specification | |
Resolution |
203DPI |
Printing Method |
Thermal transfer & Direct Thermal |
Print Speed |
8" per second |
Max. Print Width |
108 mm (4.25") |
Max. Print Length |
2,286 mm (90") |
Enclosure |
Metal construction with view window |
Physical dimension |
10.63"(W) x 12.13"(H) x 19.88"(D) |
Label roll capacity |
208.3 mm (8.2") OD |
Processor |
32 bit RISC CPU |
Memory |
2MB FLASH memory 8MB SDRAM |
Interface |
RS-232 Parallel port USB |
Power |
100-240Vl universal switching power supply |
Operation switch, button |
LCD display (122X32 pixel) LED(Power, Error, On line) Button(Pause Feed Menu) |
Sensors |
Standard: Tranmissive reflective ribbon end &head open Options: Case open& peel off |
Internal font |
5 alpha-numeric bitmap fonts OCR-A OCR-B& one true type font |
Bar code |
1D bar code: Code39, Code39C,Code 93,Code 128UCC,Code 128 subset A, B , C , Code11,Codabar, Interleave 2 of 5,EAN-8,EAN-13,EAN-128,UPC-A,UPC-E, EAN and UPC 2(5) digits add-on, CPOST, MSI,PLESSEY,POSTINET, ITF14, EAN14 2D bar code: PDF-417,Maxicode, DataMartix, QR Code |
Font& barcode rotation |
0, 90, 180, 270 degrees |
Print language |
TSPL2 TPLE |
Media type |
Continuous, die-cut, fan-fold, black mark, tag |
Media width |
25.4-118 mm(1”-4.65”) |
Media thickness |
0.06-0.25mm (2.36-9.84mil) |
Media core diameter |
25.4mm(1”) |
Max. Ribbon length |
300m(984feet), coated inside or outside ribbon |
Environment condition |
Operation: 5-40°C(41-104°F) |
Storage:-10-60°C(14-140°F) |
|
Safety regulation |
FCC Class A, CE Class A, C-Tick, UL, CUL, TUV/GS,CCC, BSMI |
Accessories |
BarTender Ultralite software CD disk, Quick start guide, Auto switching power supply, Parallel port cable & power cord fixing tab Ribbon rewind spindle paper core |
Limited warranty |
Printer:1 year |
Factory option |
Case open sensor |
Dealer options |
Peel off module Memory card(2,4,6 and 8M bytes) Guillotine cutter Internal Ethernet/wireless LAN adaptor |
User option |
Keyboard display unit(KU-007 Plus and KP-200), External Ethernet/wireless LAN adaptor Contact CCD bar code scanner, Long range linear image bar code scanner |
