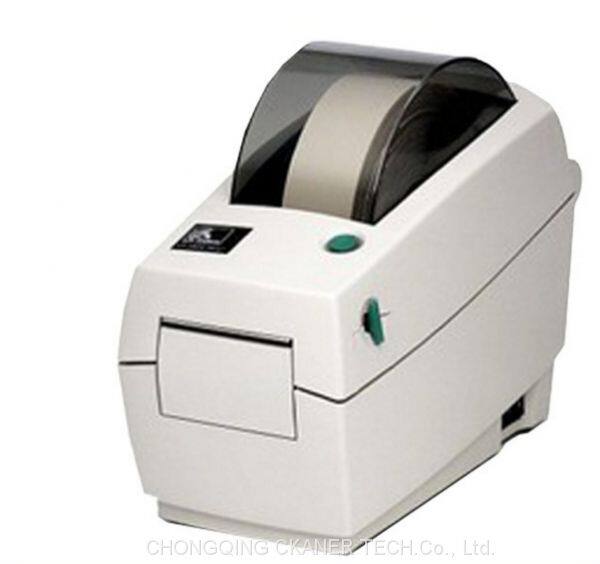

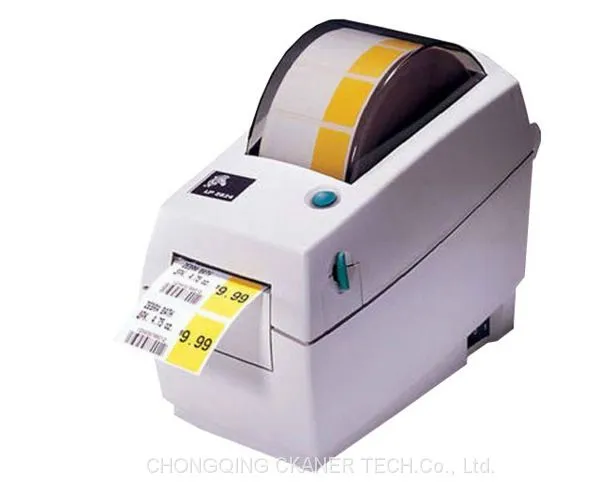

Ckaner LP2824 plus Barcode printing machine portable label printer thermal barcoe printer
Printing applications:
1.Printing of retail price labels, coupons and tickets
2.Retail drug formulation label printing
3.Medical specimen label printing and patient record tracking
4.Light Industry In-Process and Finished Product Label Printing
5.Security Applications: Visitor ID, Evidence Tracking, Parking ID
6.Travel/Services: Boarding Pass, luggage signage, cable car ticket
LP2824Plus Main Character:
Printing type |
Thermal printing |
Resolution(dpi) |
200dpi |
Printing speed (mm/s) |
102mm/s |
Printing width |
104mm |
Printing length |
990mm |
Paper roll core |
127mm |
Paper roll core diameter |
38mm |
Label thickness |
0.07mm -0.18mm |
Ribbon length |
74m |
Ribbon width |
33.8mm-110mm |
Ribbon core diameter |
12.7mm |
Ribbon roll diameter |
35mm |
Memory |
8MB DRAM, 4MB Flash |
Communication |
RS-232C, IEEE 1284, USB 1.1 |
Character set |
Support for user-defined fonts and graphics - Includes custom logo |
Typeface |
16 kinds of built-in scalable ZPL fonts; 1 kinds of built-in scalable ZPL fonts; 5 kinds of built-in scalable EPL2 fonts |
Electrical Specifications | |
Power supply (V) |
90-265VAC |
Power frequency(Hz) |
48-62 Hz |
Electrical Safety |
IEC 60950-1,EN55022 Class B,EN55024,EN61000-3-2,3 |
IEC |
CULUS, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, CCC, GOST-R, BMSI, S-Mark, MIC, ZIK |
Environmental parameters | |
Working temperature(Celsius) |
5-/40 Celsius |
Storage Temperature(Celsius) |
-40 -/60Celsius |
Working Humidity(Celsius) |
10-90% No condensation |
Storage humidity(Celsius) |
5-95% No condensation |
Appearance parameters | |
Length(mm) |
111mm |
Width (mm) |
216mm |
Height (mm) |
177mm |
Weight (kg) |
1.2 KG |
Performance parameters | |
Supported software |
ZebraDesignerTMPro ZebraDesigner for XML ZebraNetTMBridge Enterprise ZebraNet Utilities v 7.0 Zebra Universal Driver Additional scalable and bitmapped fonts available |
Decode ability |
1D:Code 11, Code 16K, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Csae C Codes, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5, Industrial 2-of-5, interleaved 2 of-5, Logmars, MSI, Codabar, Planet Code 2D:Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, M icroPDF417, TLC 39, GS1 DataBar(RSS), Aztec |
