Home > Products > Bottle Warming and Cooling Machine > Industrial Use Bottle Cooling Tunnel Pasteurizer/Sterilizer machine
Industrial Use Bottle Cooling Tunnel Pasteurizer/Sterilizer machine
- Shanghai
- T/T L/C Other
- 30 days
You May Like
-
beer bottle tunnel pasteurizer
-
Industrial Glass Bottle Beer Pasteurizer Tunnel
-
Auotmatic steam heating tunnel pasteurizer for glass bottle/cans/jars
-
tunnel pasteurizer for bottled juice or carbonated drinks
-
3 in 1 drinking purified water washing filling capping machine production line automatic water bottle filling machine
-
Automatic Mineral Water/Juice Bottle Washing Filling Capping Machine Zhangjiagang Price
Product Details
| Brand Name | BX | Place of Origin | China | |
| Model Number | PLS | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Weight | according to different models of machine | Dimension(L*W*H) | according to different models of machine | |
| Condition | New | Voltage | according to clients' requirements | |
| Power(W) | according to different models of machine | Processing Types | various kinds of bottles |
Product Description

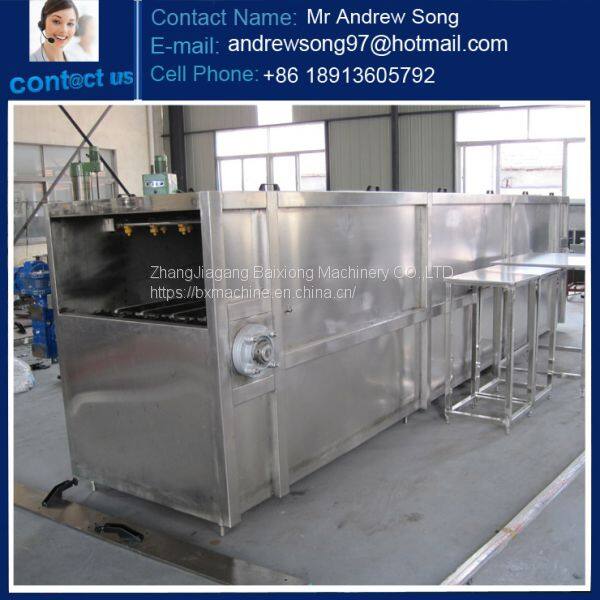

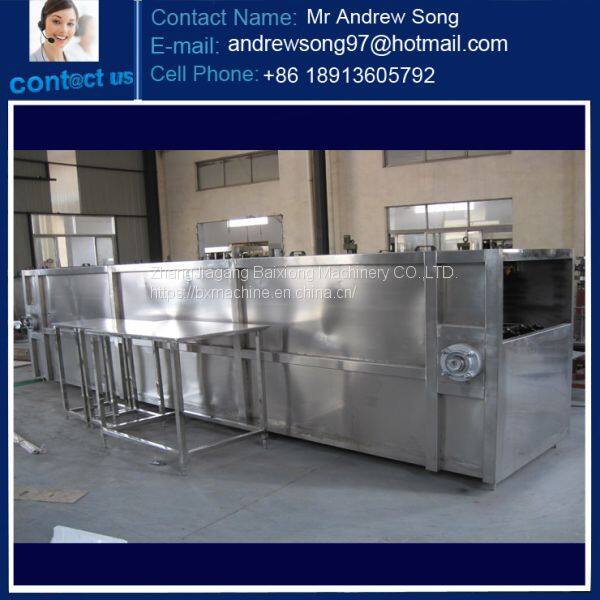

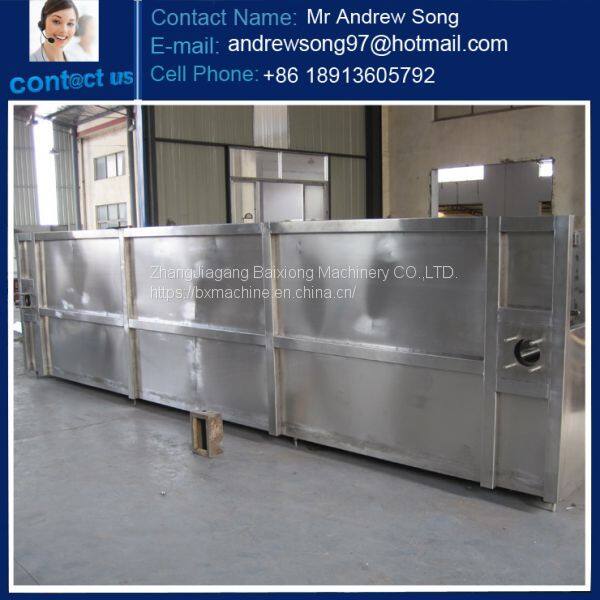

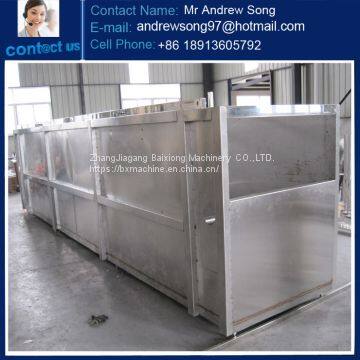

PET bottle pasteurizing and cooling tunnel
designed specially for milk, juice, drink, beer, food and drug after ,packaged, which can help to postpone the storage period by sterilizing and cooling. It is recommended as a second pasteurization in the pipe lining. It can be prepared in different process even with high auto-controlling according to the specific request from customer like heating, sterilizing, warm-keeping and cooling.

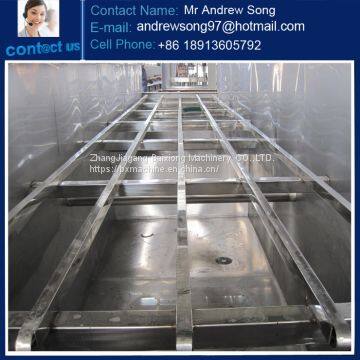

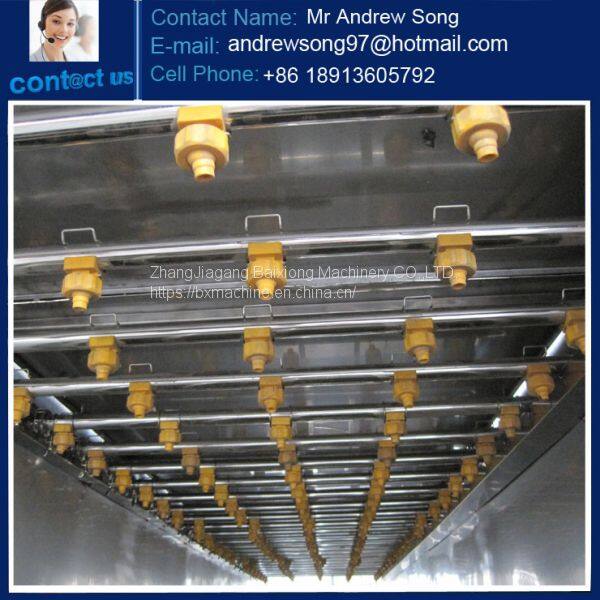

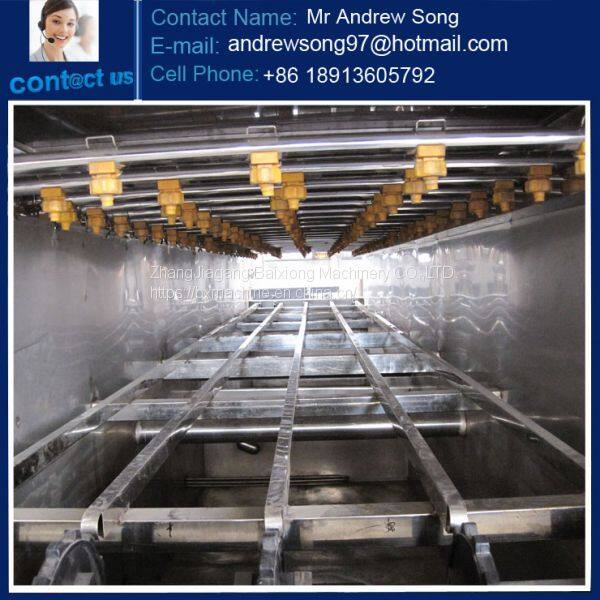

This equipment has been widely used by the craft brothers. It’s more equal, compensate and rapid than traditional water sterilization which can help to improve the efficiency and decrease the manufacturing cost and improve market competition for the customers. The main character of this equipment is that the net can be used for a long time, and won’t bring a large distortion in high temperature, which is used the imported spray mouth to homogenize the flow and temperature. The temperature can be chosen as the PLC or PID controlling.
main technicals:
model | PLS-3000 | PLS-6000 | PLS-8000 | PLS-12000 | PLS-18000 | |
maximum sterilize temperature | 100°C | |||||
line speed of the conveyer | 110-553mm/min, Stepless speeding | |||||
Heating steam pressure | 0.4MPa | |||||
Heating water consumption(m³) | 21 | 40 | 55 | 80 | 120 | |
Total power(kw) | 9.6 | 10.6 | 13.6 | 16.5 | 25 | |
External dimension(mm) | length | 6500 | 14000 | 18880 | 21880 | 31000 |
width | 2250 | 2750 | ||||
height | 1735 | 1735 | ||||
weight(kg) | 3000 | 5000 | 6500 | 8500 | 12000 | |
Tunnel area(m2) | 13.5 | 26.5 | 34 | 51 | 76 | |
