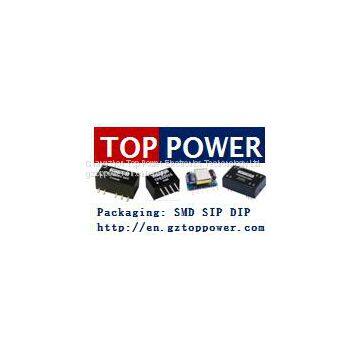

Help Center3W 3KVAC Isolation Wide Input AC/DC Converters Power Supply
Related Products
-
TP03AL220S12LSW AMEOF1-12SJZ 3W AC/DC Converters Board Mount Integrated CircuitsUS$ 0.31MOQ: 2147483647 Pieces -
6W 4KV Isolation Wide Input AC/DC Converters Power SupplyUS$ 0.11MOQ: 2147483647 Pieces
-
230v ac 24v Converter 3KV Isolation Wide Input AC/DC Converters Board Mount Encapsulated Power SupplyUS$ 0.19MOQ: 2147483647 Pieces
-
150W Wide Input AC/DC Switching Power SupplyUS$ 0.11MOQ: 2147483647 Pieces
-
150W Wide Input AC/DC Switching Power Supply AC/DC ConvertersUS$ 0.19MOQ: 2147483647 Pieces
The rated output power of TP03AL series is 3W power supply with wide input voltage range, for both AC input and DC input application. High reliability, Low power consumption, safety isolation .Widely used in industrial control and electrical instrumentation, smart home, which do not have high requirement on EMC.
The EMC external circuit must be added if the products need to be applied to EMC harsh environment .
Universal input voltage range |
Both for AC and DC input voltage |
Low Ripple &Noise |
High efficiency, high power density, miniature dimensions |
Low power consumption ≤30mW
|
Overheat protection ,Over current protection |
International standard Footprint&Pinouts |
Industrial product design |
Operating temperature : -40℃ to 70℃ |
SELECTION GUIDE | |||||
Part Number |
Input Voltage |
Output |
Efficiency (Typ. ) % |
||
Voltage （VAC) |
Voltage （VDC) |
Current（A） |
|||
Rated |
Range values |
||||
TP03AL220S03LSW |
220(4:1) |
85-265 |
3.3 |
0.60 |
63 |
TP03AL220S05LSW |
220(4:1) |
85-265 |
5 |
0.60 |
68 |
TP03AL220S09LSW |
220(4:1) |
85-265 |
9 |
0.33 |
72 |
TP03AL220S12LSW |
220(4:1) |
85-265 |
12 |
0.25 |
74 |
TP03AL220S15LSW |
220(4:1) |
85-265 |
15 |
0.20 |
76 |
TP03AL220S24LSW |
220(4:1) |
85-265 |
24 |
0.125 |
80 |
|
All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.
| |||||
INPUT CHARACTERISTICS | ||||||
Input Voltage |
85-265VAC (70-400VDC) |
|||||
Input frequency |
47 ~ 440Hz |
|||||
Input Current ( Typ.) |
120mA / 115VAC 60m A / 230VAC |
|||||
Inrush current( Typ.) |
Cold start 13A / 115 VAC 23A / 230 VAC |
|||||
OUTPUT CHARACTERISTICS | ||||||
Output Voltage accuracy |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
Line regulation |
±1.5% |
±1.5% |
±1.5% |
±1.5% |
±1.5% |
±1.5% |
Load regulation |
±2.5% |
±2.5% |
±2.5% |
±2.5% |
±2.5% |
±2.5% |
