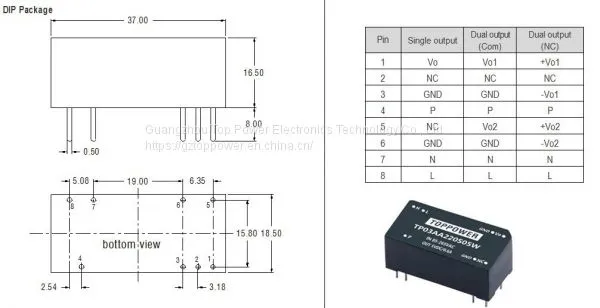

Board Mount Encapsulated power supply
The rated output power of TP03AA series is 3W with wide input voltage range, for both AC input and DC input application. High reliability, precision, large power density, ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, EMI filter circuit, the rectifier filter circuit, 3000V isolation voltage, short circuit, overload, internal thermal protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control and other electronic systems.
Part Number |
Input Voltage |
Output |
||
Rated |
Range values |
Voltage（VDC) |
||
(VAC) |
||||
TP03AA220S05 |
220(2:1) |
165-265 |
5 |
|
TP03AA220S12 |
220(2:1) |
165-265 |
12 |
|
TP03AA220S15 |
220(2:1) |
165-265 |
15 |
|
TP03AA220S24 |
220(2:1) |
165-265 |
24 |
|
TP03AA220D05 |
220(2:1) |
165-265 |
±5 |
|
TP03AA220D12 |
220(2:1) |
165-265 |
±12 |
|
TP03AA220D15 |
220(2:1) |
165-265 |
±15 |
|
TP03AA220D05P05 |
220(2:1) |
165-265 |
+5/+5 |
|
TP03AA220D05P12 |
220(2:1) |
165-265 |
+5/+12 |
|
TP03AA220D05P15 |
220(2:1) |
165-265 |
+5/+15 |
|
TP03AA220D05P24 |
220(2:1) |
165-265 |
+5/+24 |
|
TP03AA220S05W |
220(4:1) |
85-265 |
5 |
|
TP03AA220S12W |
220(4:1) |
85-265 |
12 |
|
TP03AA220S15W |
220(4:1) |
85-265 |
15 |
|
TP03AA220S24W |
220(4:1) |
85-265 |
24 |
|
TP03AA220D05W |
220(4:1) |
85-265 |
±5 |
|
TP03AA220D12W |
220(4:1) |
85-265 |
±12 |
|
TP03AA220D15W |
220(4:1) |
85-265 |
±15 |
|
TP03AA220D05P03W |
220(4:1) |
85-265 |
+5/+3.3 |
|
TP03AA220D05P05W |
220(4:1) |
85-265 |
+5/+5 |
|
TP03AA220D05P12W |
220(4:1) |
85-265 |
+5/+12 |
|
TP03AA220D05P15W |
220(4:1) |
85-265 |
+5/+15 |
|
TP03AA220D05P24W |
220(4:1) |
85-265 |
+5/+24 |
|
TP03AA220D23P05W |
220(4:1) |
85-265 |
+23/+5 |
|
