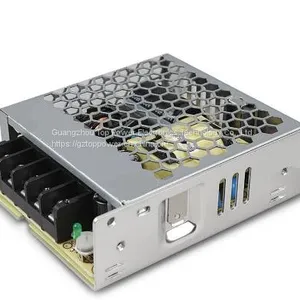

150W Wide input AC/DC switching power supply
The rated output power of TPC/LR-150-XS series is 150W，input voltage range：90-264VAC,
output voltage : 12V,15V,24V,36V,48V,High reliability, precision,effificency , ultra-small size, no external heat sink required, stable output voltage and etc, with short circuit, over-load,over-voltage protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control , New Energy, Security,and other electronic systems.
konwertery dc / dc преобразователи постоянного / постоянного тока
FEATURES | ||
Universal AC input ：90VAC-264VAC |
100% full load burn-in test |
short circuit, over-load,over-voltage protection
|
|
Operating temperature：-30℃~70℃
|
RoHS complaint |
Low standby power consumption
|
|
All using 105℃ long-life electrolytic capacitors
|
High reliability,effificency |
Full compliance with safety regulation,EMC design |
SELECTION GUIDE | ||||||||
Part Number |
Input |
Output |
Efficiency @25℃, （Typ）% |
|||||
Volatge（VAC) |
Voltage（VDC) |
Pre-set voltage @25℃(V) |
Rated current（A） |
Current range(A) |
Rated power(W) |
|||
Rated |
Range values |
|||||||
TPC/LR-150-12S |
220 |
90-264 |
12 |
12.00-12.10 |
12.5 |
0-12.5 |
150 |
85 |
TPC/LR-150-15S |
220 |
90-264 |
15 |
15.00-15.10 |
10 |
0-10 |
150 |
87 |
TPC/LR-150-24S |
220 |
90-264 |
24 |
24.00-24.10 |
6.25 |
0-6.25 |
150 |
89 |
TPC/LR-150-36S |
220 |
90-264 |
36 |
36.00-36.10 |
4.17 |
0-4.17 |
150 |
89 |
TPC/LR-150-48S |
220 |
90-264 |
48 |
48.00-48.10 |
3.125 |
0-3.125 |
150 |
90 |
All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.
