High Efficient Bonding Machine Used in Electronic Industry,CWPP-3A
High Efficient Bonding Machine Used in Electronic Industry,CWPP-3A Feature:
1. According to different products, optional temperature for your choice.
2. Unique material thermode head, ensure the average pressure
3. Has vacuum function, easier for adjustment and positioning.
4. NC temperature, clear and high precision
5. With digital pressure gauge, pressure range can be preset.
6. Microcomputer control, high accuracy and stable.
7. Programmable curve Including pre-heating and reflow soldering temperature.
8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.
9. Precise PID control, phase angle replace pulse drive.
10. Less Libration, less noise, avoiding voltage fluctuate
11. Real-time display temperature curve and temperature data.
12. Touch screen input data, simplify the operation.
High Efficient Bonding Machine Used in Electronic Industry,CWPP-3A Technical Parameters:
| Machine size： |
660×660×700mm |
| Working area： |
Max 200*170mm |
| Machine weight： |
89Kg |
| Working air pressure： |
0.6-0.8Mpa |
| Power supply： |
AC220V±10% 50HZ,2200W |
| Temperature settings： |
Two |
| Working environment： |
10-60℃，40%-95% |
| Welding pressure： |
1~20Kg |
| Temperature settings： |
RT~500℃ tolerance ±5℃ |
| Pressing time： |
1~99.9s |
| Welding precision： |
pitch 0.2mm |
| Thermode head size： |
Max 60*3mm |
| Fixture quantity: |
1 |
| Alignment mode： |
CCD + LCD Monitor |
| Feeding mode： |
Manual |
| Starting mode： |
Press two start buttom |
| Heating mode： |
heating pulse rise time of 1-2 seconds |
| Rotation Platform： |
Cylinder control，tolerance |

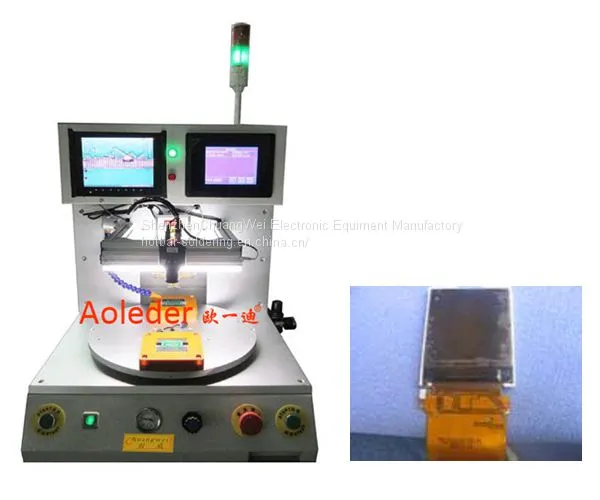

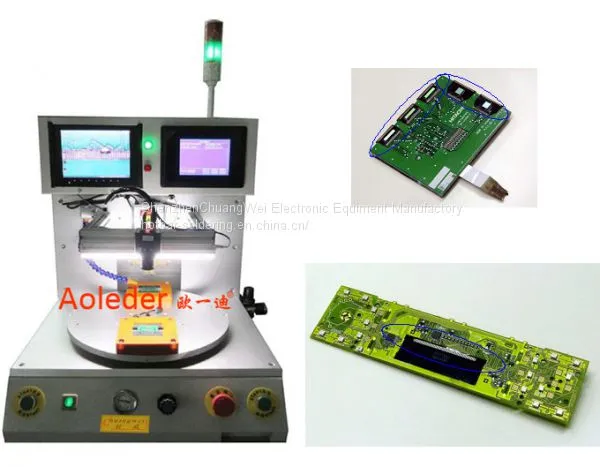

High Efficient Bonding Machine Used in Electronic Industry,CWPP-3A Product Picture:
High Efficient Bonding Machine Used in Electronic Industry,CWPP-3A Application:
. For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp.
If you need the machine,please contact us:
Skype/Email: s5@smtfly.com
WhatsApp/Wechat: +86 136 8490 4990
www.pcb-depaneling.com
www.pcb-depanelizer.com
www.laserpcbdepanelingmachine.com
SMTfly Electronic Equipment Manufactory Ltd
High Efficient Bonding Machine Used in Electronic Industry,CWPP-3A Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
